Product Summary

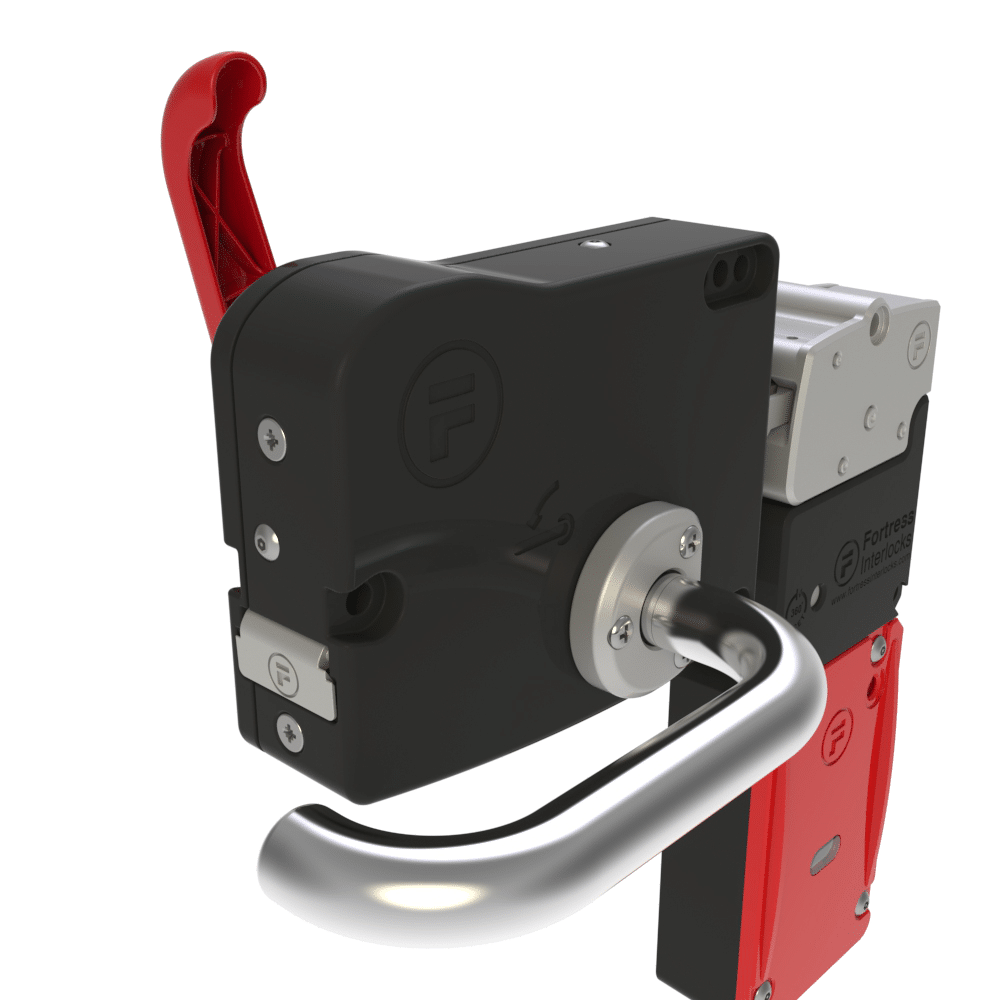

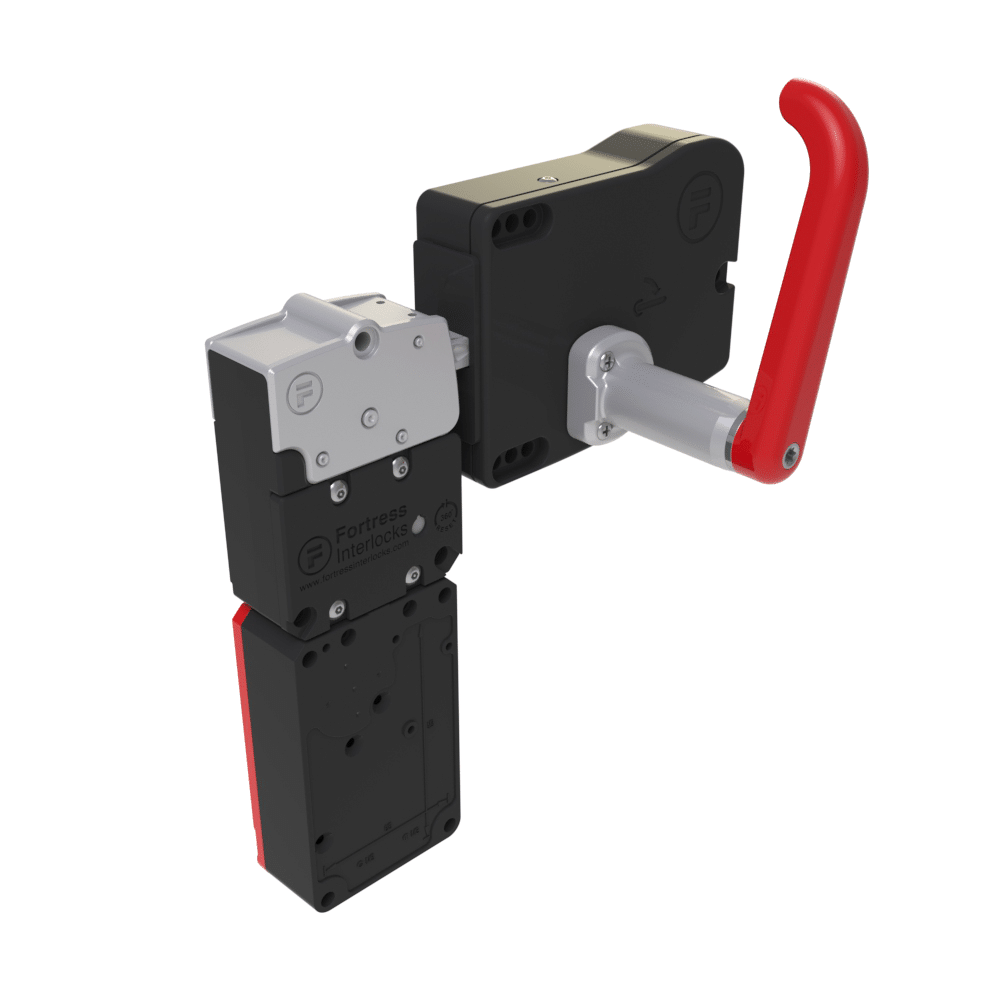

A solenoid-controlled interlock with Power-to-Unlock, auxiliary release, and monitored safety circuits. Includes an escape release with an automatic reset function.
Product Description
A solenoid-controlled interlock with Power-to-Unlock, auxiliary release, and monitored safety circuits. Includes an escape release with an automatic reset function.
The Fortress Safety EI2A6SR411 model is a solenoid-controlled interlock system designed to meet the highest standards in industrial safety. With its Power-to-Unlock feature, this product ensures that operators can safely access equipment, while the auxiliary release mechanism allows for quick intervention in emergencies. The monitored safety circuits guarantee continuous and reliable operation of the system.
Made from stainless steel conforming to BS3146 standards, the EI2A6SR411 boasts an IP67 protection class, making it resistant to external environmental factors. Operating within a voltage range of 90% to 110% of nominal allows for versatile applications in various industrial settings. With a performance level of PLe, this solution ensures top-tier safety standards are met. Fortress Safety’s product is an ideal choice for those looking to enhance safety in automation systems and improve operational efficiency.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Escape Release, Power-to-Unlock |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | EI2-A6-SR411 |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Operating Cycles |
| Operating Force | 5NM |
| Retention Force | 10,000N(locked) |
| Actuator Contact | 2NC 1NO |
| Solenoid Voltage | 24V ac/dc, 110V ac, 230V ac |
| Housing Materials | Zinc Alloy to BSEN12844 |
| Performance Level | PLe |
| Solenoid Contacts | 2NC 1NO |
| Ingress Protection | IP67 |
| Internal Materials | Stainless Steel to BS3146 |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Switches Conformance | DIN VDE 0060 Part 206 & IEC 947-5-1 |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Solenoid Voltage Tolerance | 90% to 110% of nominal |
| Solenoid Rating (Duty Cycle) | 100% |
| Brand | Fortress Safety |
| Model | EI2A6SR411 |
| Main Category | Fortress Safety |
