Fortress Safety Fortress Safety

EI2A6SR411T411D7D700

In Stock (100 items)
53 views
€0,00

VAT Included

Product Summary

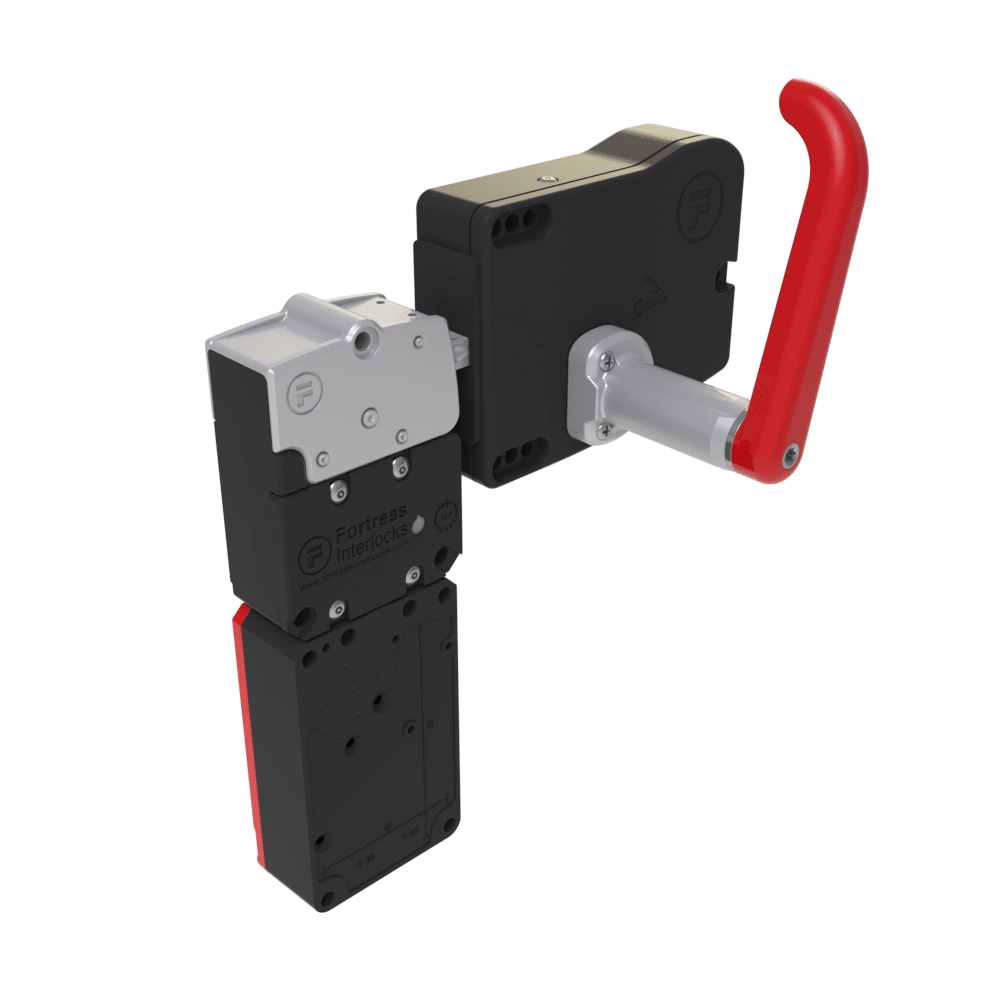

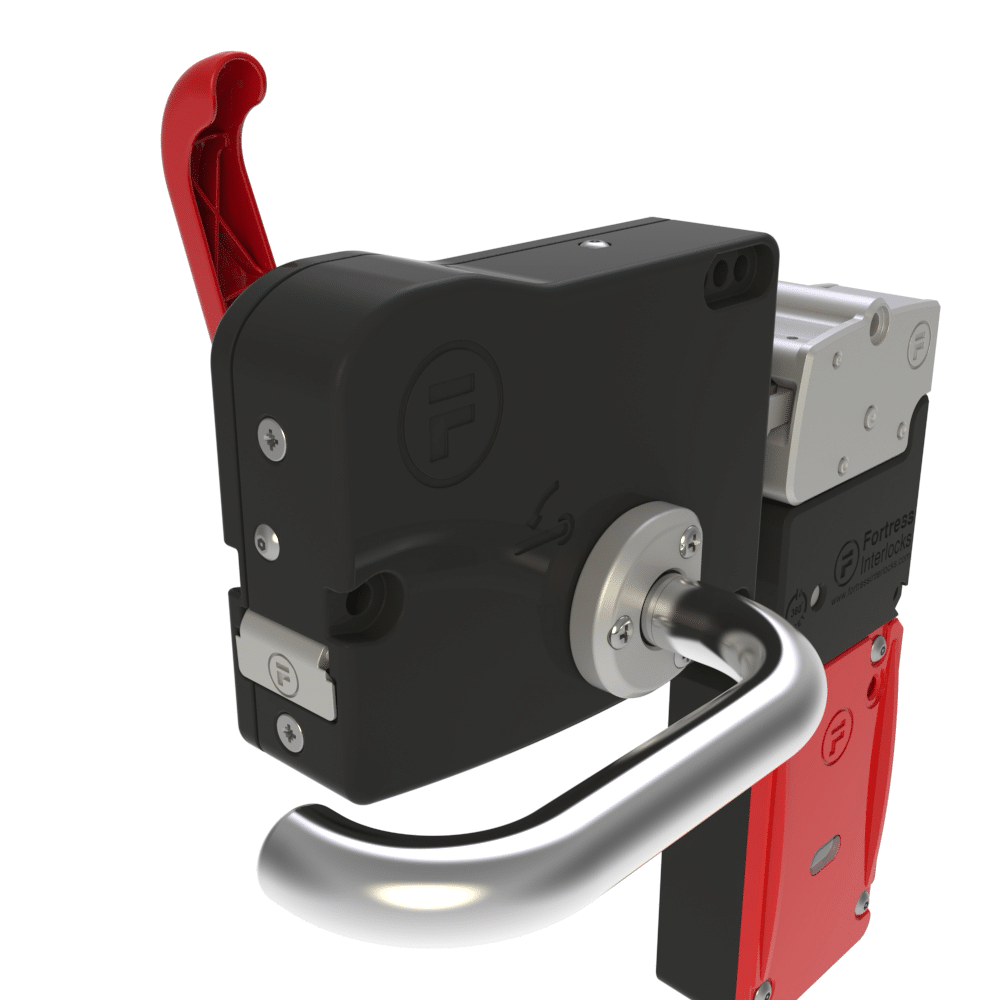

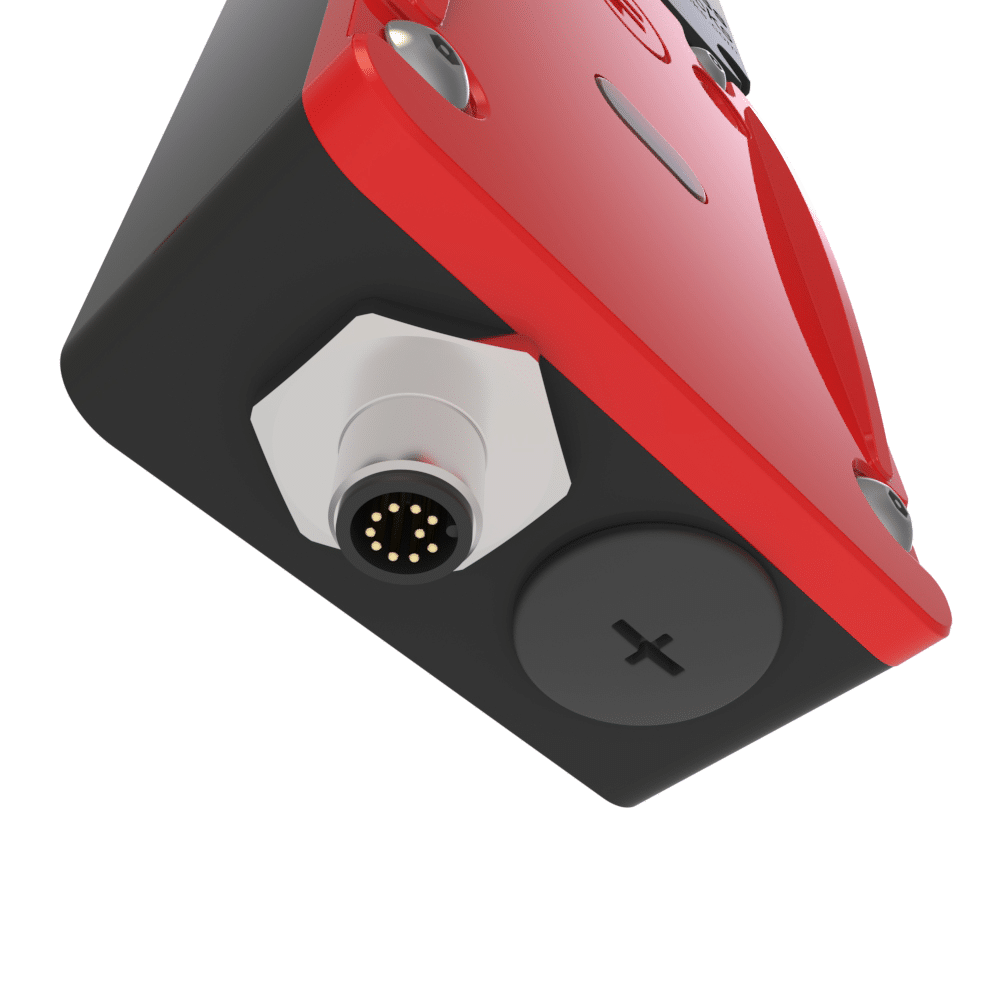

A solenoid-controlled interlock with Power-to-Unlock, auxiliary release, and monitored safety circuits. Features an escape release, automatic reset, and a 10-pin M12 quick disconnect.
(100 items available)

Product Description

A solenoid-controlled interlock with Power-to-Unlock, auxiliary release, and monitored safety circuits. Features an escape release, automatic reset, and a 10-pin M12 quick disconnect.
The Fortress Safety EI2A6SR411T411D7D700 model is a solenoid-controlled interlock system designed to meet the highest standards in industrial safety. Featuring Power-to-Unlock functionality, it enhances security while providing auxiliary release and monitored safety circuits for operational reliability. With an IP67 protection class, this product ensures resistance against water and dust, while being constructed from stainless steel, it promises long-lasting performance. One of the key features of the EI2A6SR411T411D7D700 model is its escape release mechanism, allowing for quick intervention in emergency situations. Additionally, the automatic reset feature enhances user safety, minimizing downtime. With a performance level of PLe, this product elevates safety standards in industrial facilities and aids in seamless business operations. Fortress Safety's reliable solution is ideal for all types of industrial applications, ensuring both compliance and safety in the workplace.

Technical Specifications

DC Position Monitoring
λd 10%
B10d 5000000
Features Escape Release, Power-to-Unlock
Cable Size 28 – 24 AWG
Environment Indoor, Outdoor
Part Number EI2-A6-SR411-T411D7D700
Paint Finishes Gloss Powder Coat on Passivated Base Material
Control Voltage 24V ac/dc, 110V ac, 230V ac
Mechanical Life 1,000,000 Operating Cycles
Operating Force 5NM
Retention Force 10,000N(locked)
Actuator Contact 2NC 1NO
Solenoid Voltage 24V ac/dc, 110V ac, 230V ac
Housing Materials Zinc Alloy to BSEN12844
Performance Level PLe
Solenoid Contacts 2NC 1NO
Ingress Protection IP67
Internal Materials Stainless Steel to BS3146
Diagnostic Coverage A maximum DC of 99% can be achieved with suitable monitoring
Switches Conformance DIN VDE 0060 Part 206 & IEC 947-5-1
Maximum Switch Current 3A
Minimum Switch Current 1mA at 5VDC
Solenoid Voltage Tolerance 90% to 110% of nominal
Solenoid Rating (Duty Cycle) 100%
Brand Fortress Safety
Model EI2A6SR411T411D7D700
Main Category Fortress Safety
