Fortress Safety
Fortress Safety
EI2A6SR461
In Stock (100 items)
47 views
€0,00
VAT Included
Product Summary

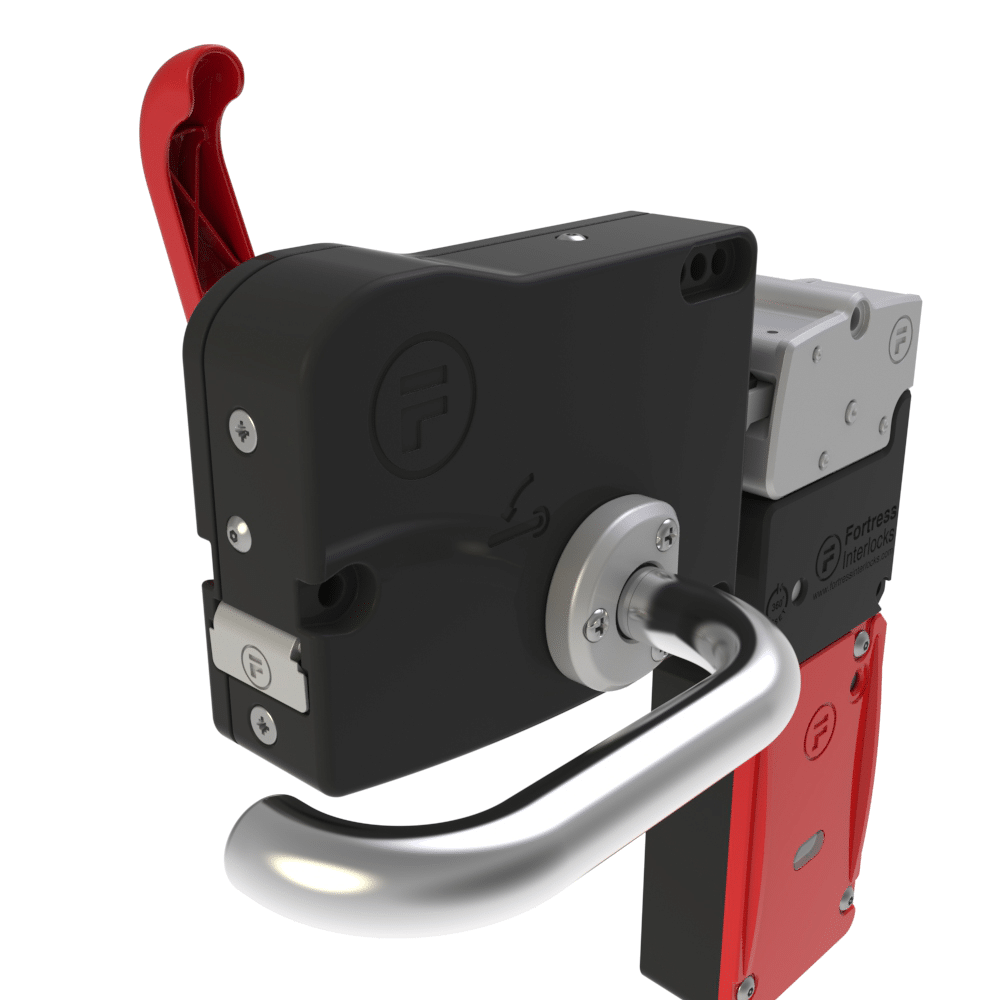

A solenoid-controlled interlock with Power-to-Lock and unmonitored solenoid safety circuits. Designed with an escape release and automatic reset.
Product Description
A solenoid-controlled interlock with Power-to-Lock and unmonitored solenoid safety circuits. Designed with an escape release and automatic reset.
The Fortress Safety EI2A6SR461 model is a high-performance solenoid-controlled interlock designed for industrial safety systems. Equipped with Power-to-Lock functionality and unmonitored solenoid safety circuits, this product ensures maximum security. The EI2A6SR461 features an escape release mechanism for immediate access in emergencies and an automatic reset function that enhances operational continuity.
This interlock operates within a voltage range of 90%-110% of nominal and is constructed from stainless steel compliant with BS3146 standards. With a Performance Level of PLe and an IP67 protection class, it is suitable for use in demanding industrial environments. The Fortress Safety EI2A6SR461 plays a critical role in manufacturing facilities, automation systems, and machine safety. Its compliance with safety standards not only enhances workplace safety but also supports operational efficiency. This product stands as a symbol of quality and reliability in industrial safety.
Technical Specifications
DC | Position Monitoring |
λd | 10% |
B10d | 5000000 |
Features | Escape Release, Power-to-Lock |
Cable Size | 28 – 24 AWG |
Environment | Indoor, Outdoor |
Part Number | EI2-A6-SR461 |
Paint Finishes | Gloss Powder Coat on Passivated Base Material |
Control Voltage | 24V ac/dc, 110V ac, 230V ac |
Mechanical Life | 1,000,000 Operating Cycles |
Operating Force | 5NM |
Retention Force | 10,000N(locked) |
Actuator Contact | 2NC 1NO |
Solenoid Voltage | 24V ac/dc, 110V ac, 230V ac |
Housing Materials | Zinc Alloy to BSEN12844 |
Performance Level | PLe |
Solenoid Contacts | 1NO |
Ingress Protection | IP67 |
Internal Materials | Stainless Steel to BS3146 |
Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
Switches Conformance | DIN VDE 0060 Part 206 & IEC 947-5-1 |
Maximum Switch Current | 3A |
Minimum Switch Current | 1mA at 5VDC |
Solenoid Voltage Tolerance | 90% to 110% of nominal |
Solenoid Rating (Duty Cycle) | 100% |
Brand | Fortress Safety |
Model | EI2A6SR461 |
Main Category | Fortress Safety |
