HGL-110A2-A
In Stock (100 items)
82 views
€0,00
VAT Included
Product Summary

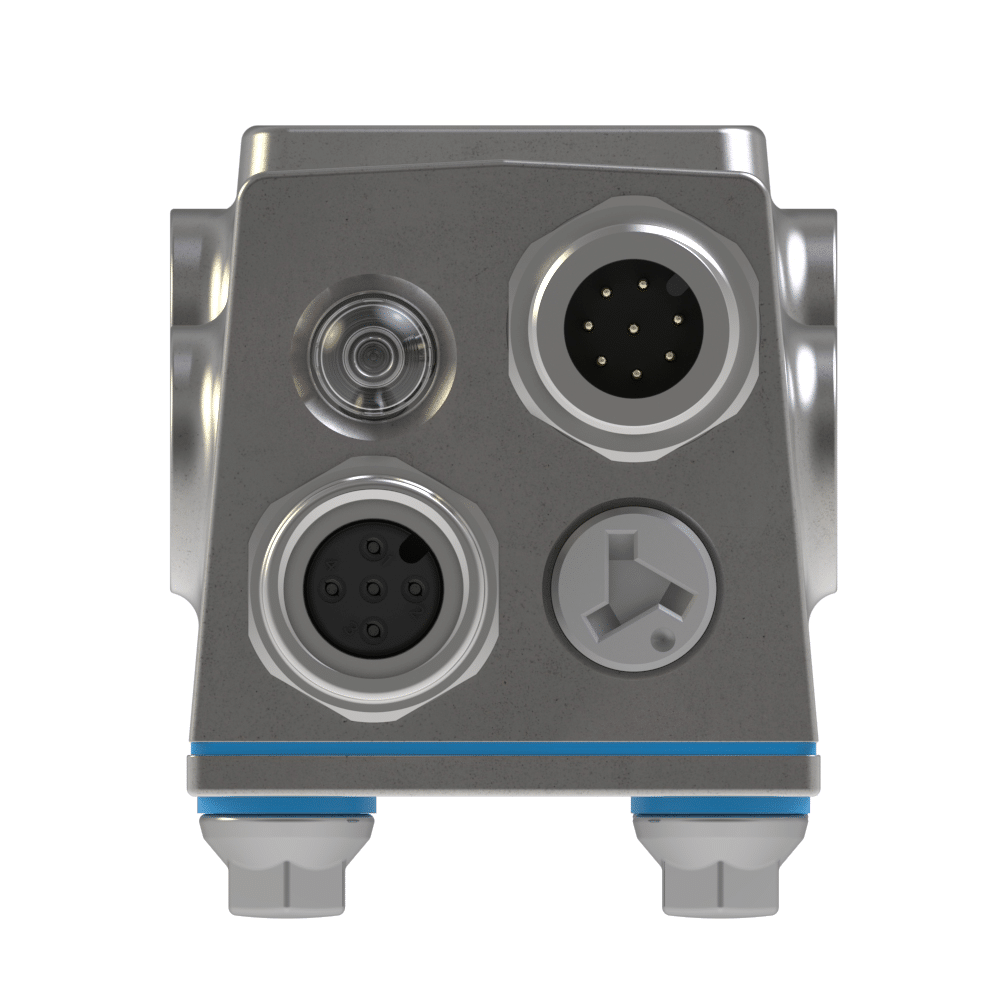

Compact interlock with locking for the protection of process (power-to-unlock), 2 x 5 pin M12 connectors in daisy-chain configuration
Product Description
Compact interlock with locking for the protection of process (power-to-unlock), 2 x 5 pin M12 connectors in daisy-chain configuration
The Fortress Safety HGL-110A2-A model is an excellent solution for industrial safety systems. Its compact interlock design features a power-to-unlock function, ensuring the safety of processes. Made from FDA food contact compliant PBT and UL 94V-2 polycarbonate, it can be safely utilized in the food processing industry as well.
With a voltage capacity of 60V, the HGL-110A2-A delivers high performance, while its IP65, IP67, and IP69 protection classes ensure durability in harsh industrial conditions. The temperature range of -20°C to +55°C allows for versatile usage in various environments. Additionally, the 2 x 5 pin M12 connectors facilitate easy connections in a daisy-chain configuration. These features not only enhance safety but also maximize system efficiency. The Fortress Safety HGL-110A2-A is the ideal choice for increasing your safety and productivity.
Technical Specifications
| PFH | 4.16×10-9 |
| Monitor | 200mA Limit |
| Features | Power-to-Unlock |
| Vibration | Tested in accordance with GS-ET-19 and BS EN 60947-5-2 |
| Environment | Indoor, Washdown |
| Part Number | HGL-110A2-A |
| Safety Inputs | 3.5mA Draw Each |
| Safety Outputs | 50mA Limit Each |
| Seal Materials | FDA Food Contact Compliant Silicon Rubber (ref. 21 CFR 177-2600) |
| Solenoid Drive | 3.5mA Draw |
| Mechanical Life | 1,000,000 Operations |
| Holding Force Fa | 5 – 8 kN |
| Maximum Altitude | 2000m |
| Product Features | Guard Locking |
| Voltage Drop, Ud | <3.5V |
| Housing Materials | 316 Stainless Steel and CF8M Stainless Steel Casting(s) |
| Off-State Current | <0.5mA |
| Plastic Materials | FDA Food Contact Compliant PBT and UL 94V-2 Polycarbonate |
| Ingress Protection | IP65, IP67, IP69 |
| Ambient Temperature | -20°C * to +55°C (-4°F to +131°F) |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring. |
| Holding Force FZh a | 6 – 9.2 kN |
| Applicable Standards | BS EN 62061, EN 60947-5-2, EN ISO 13849, IEC 61508, ISO 14119 |
| Overvoltage Category | Type 2 |
| Safety Response Time | <200ms |
| Operating Voltage, Ue | 24V DC (+/- 10%) |
| To Meet UL Requirements | The device must be connected to a Limited Voltage/Current Circuit A 4A fuse must be fitted to the device power supply |
| Minimum Actuating Radius | 150 mm |
| Rated Operating Currents | 400mA |
| Maximum Relative Humidity | 50% at 70°C |
| Category (ISO 13849-1:2015) | Up to Cat.4 |
| Maximum Actuating Frequency | 720 Operations per Hour |
| Minimum Operational Current | 100mA |
| Rated Insulation Voltage, Ui | 60V |
| SIL (according to IEC 62061) | Up to SIL CL4 |
| Brand | Fortress Safety |
| Model | HGL-110A2-A |
| Main Category | Fortress Safety |
