Product Summary

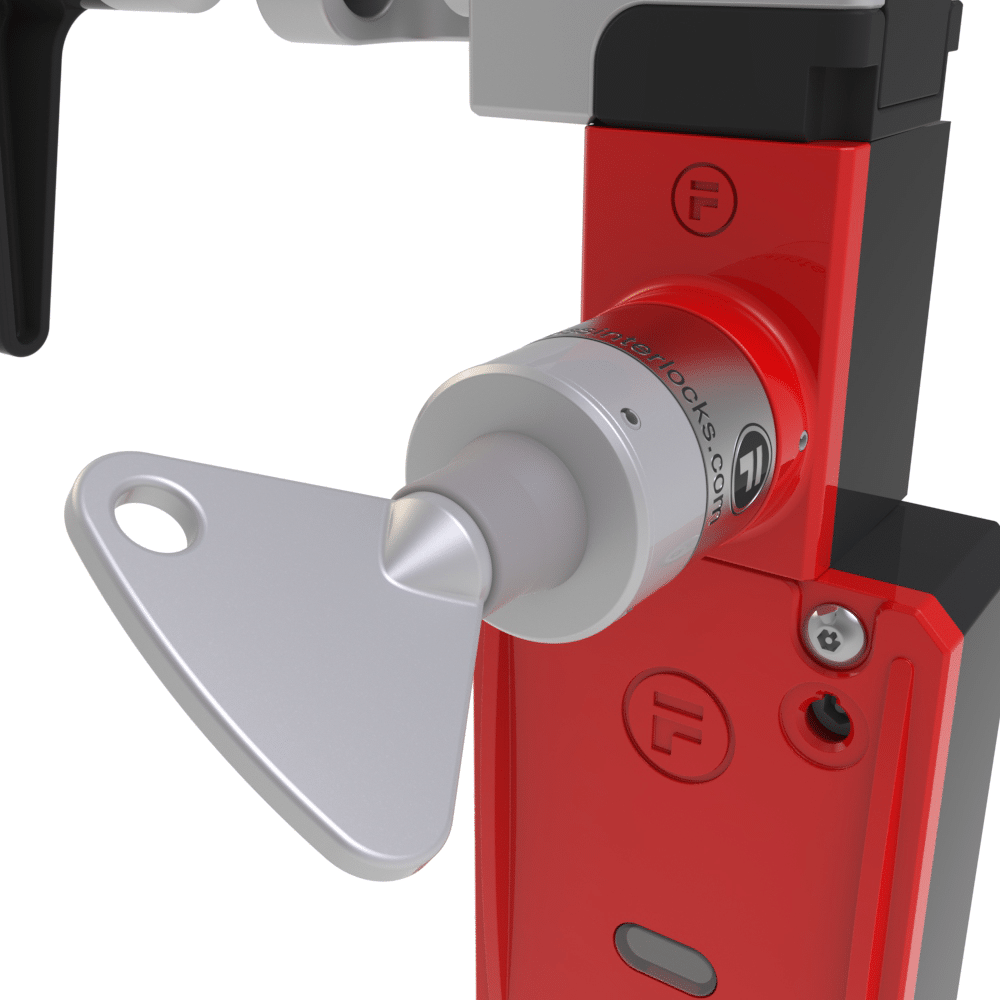

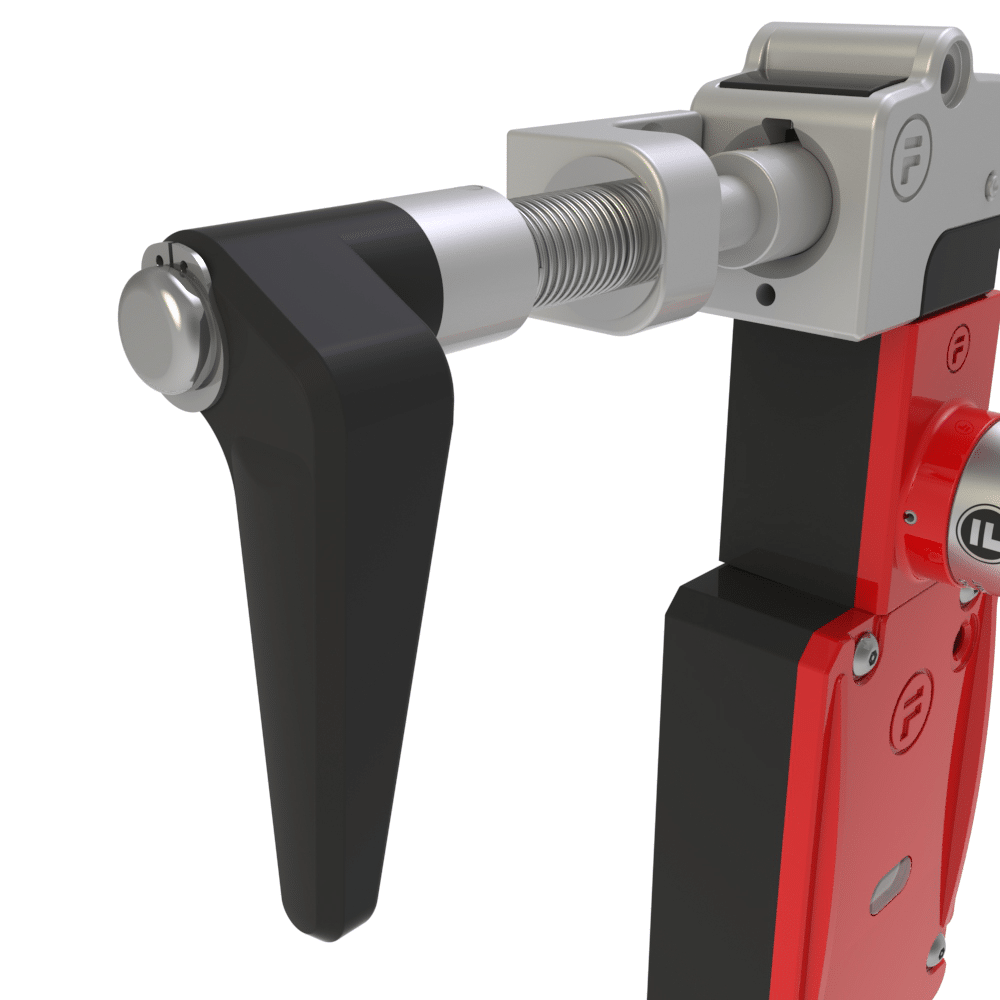

A solenoid-controlled interlock with Power-to-Unlock, featuring an AM rotary insertion handle and personnel key adaptor with a standard lock.
(100 items available)

Product Description

A solenoid-controlled interlock with Power-to-Unlock, featuring an AM rotary insertion handle and personnel key adaptor with a standard lock.
The Fortress Safety MA2M6SKL11SL411 model is a high-performance solenoid-controlled interlock system designed for industrial safety applications. Equipped with the Power-to-Unlock feature, this product ensures a secure working environment. It can seamlessly integrate with an AM rotary insertion handle and a personnel key adaptor, compatible with standard locking systems. Constructed entirely from stainless steel, this interlock offers durability and longevity in demanding environments. Operating within a voltage range of 90% to 110% of nominal, it meets the PLe performance level and boasts an IP67 protection class, providing full protection against dust and water. The MA2M6SKL11SL411 is particularly suitable for use in automation systems, industrial machinery, and safety equipment. Its compliance with safety standards enhances workplace security and helps prevent potential accidents. Experience safe and efficient operations with the superior engineering quality of Fortress Safety.

Technical Specifications

DC Position Monitoring
λd 10%
B10d 5000000
Features Personnel Key, Power-to-Unlock
Cable Size 28 – 24 AWG
Environment Indoor, Outdoor
Part Number MA2-M6-SKL11-SL411
Paint Finishes Gloss Powder Coat on Passivated Base Material
Control Voltage 24V ac/dc, 110V ac, 230V ac
Mechanical Life 1,000,000 Switching Cycles
Operating Force 0.5Nm
Retention Force 10,000N(locked)
Actuator Contact 2NC 1NO
Solenoid Voltage 24V ac/dc, 110V ac, 230V ac
Housing Materials Zinc Alloy to BSEN12844 Stainless Steel to BS3146
Performance Level PLe
Solenoid Contacts 2NC 1NO
Ingress Protection IP67
Internal Materials All Stainless Steel
Diagnostic Coverage A maximum DC of 99% can be achieved with suitable monitoring
Switches Conformance DIN VDE 0060 Part 206 & IEC 947-5-1
Maximum Switch Current 3A
Minimum Switch Current 1mA at 5VDC
Solenoid Voltage Tolerance 90% to 110% of nominal
Solenoid Rating (Duty Cycle) 100%
Brand Fortress Safety
Model MA2M6SKL11SL411
Main Category Fortress Safety
