Fortress Safety
Fortress Safety
MA2M6SKL11ST401
In Stock (100 items)
40 views
€0,00
VAT Included
Product Summary

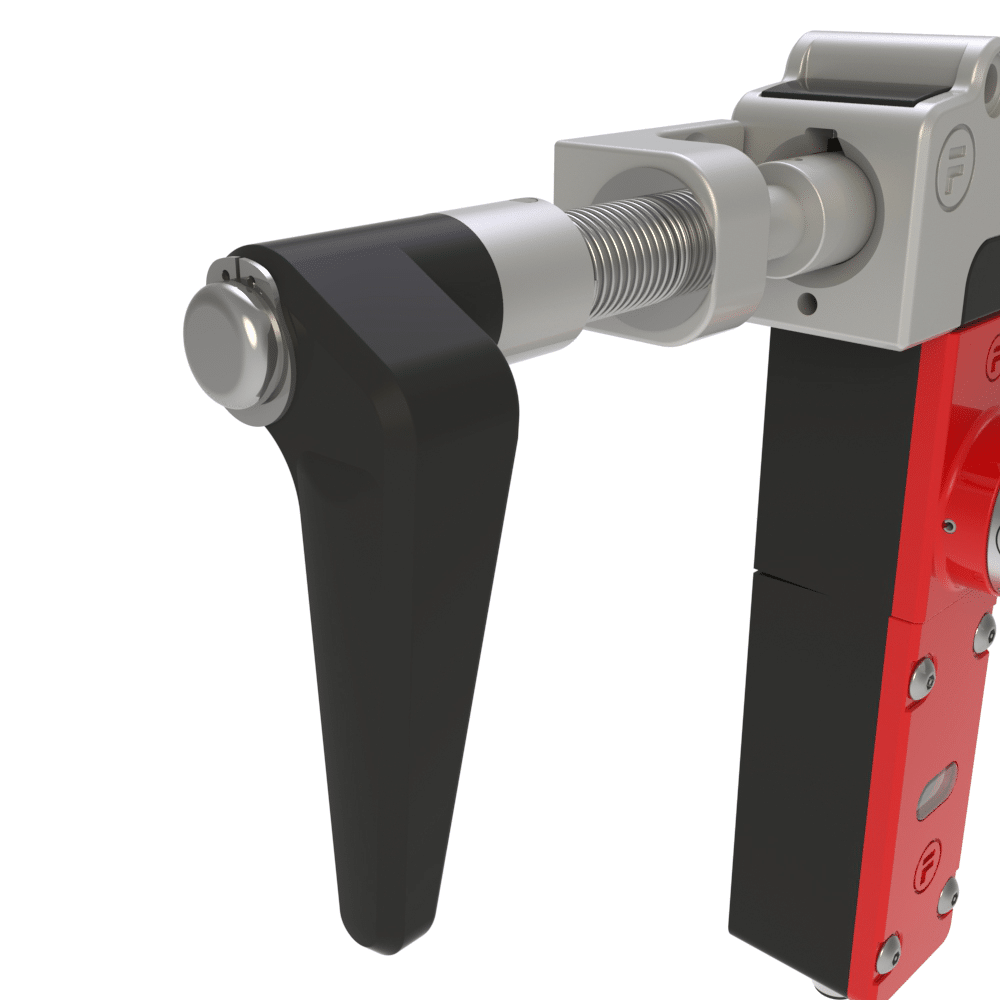

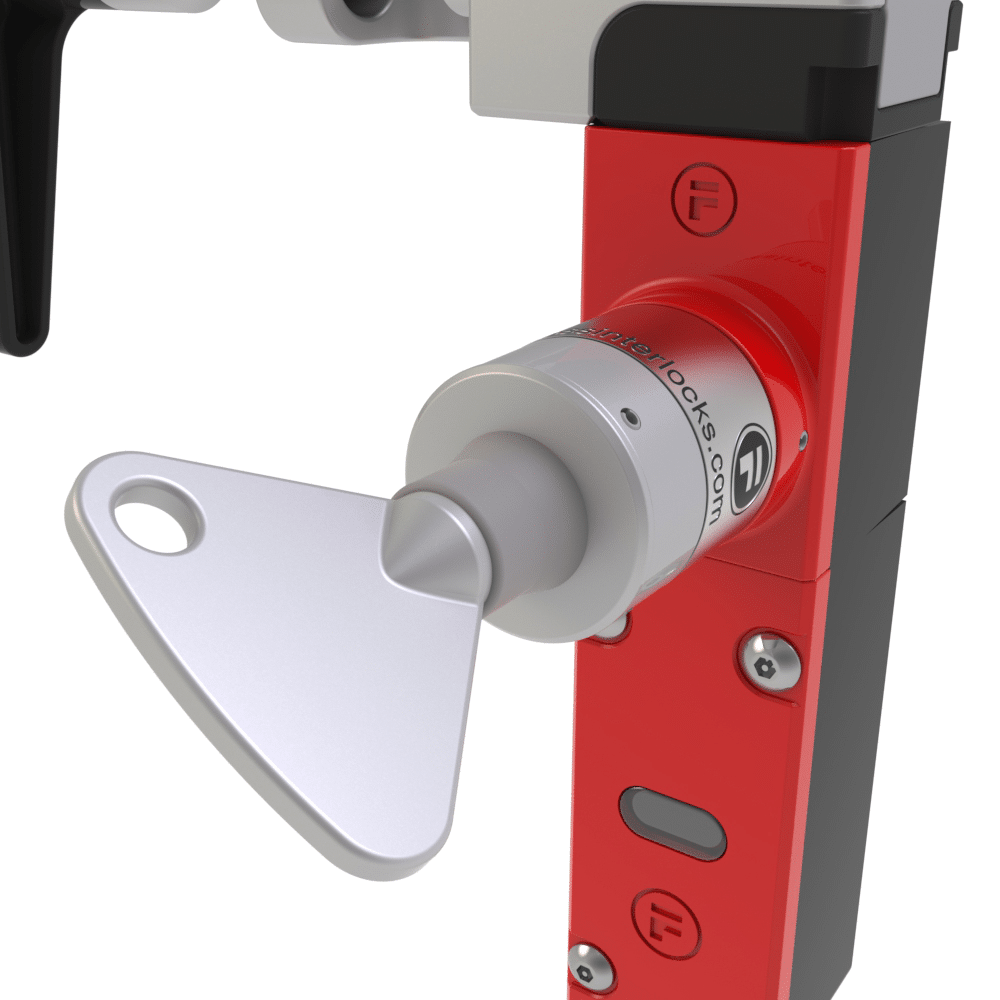

An interlock without locking, featuring an AM rotary insertion handle, AM rotary insertion head, and a personnel key adaptor with a standard lock.
Product Description
An interlock without locking, featuring an AM rotary insertion handle, AM rotary insertion head, and a personnel key adaptor with a standard lock.
The Fortress Safety MA2M6SKL11ST401 is an innovative interlock system designed to elevate your industrial safety measures. This product allows users to control machinery safely without a locking mechanism, providing peace of mind in operation. With features like the AM rotary insertion handle and AM rotary insertion head, it ensures quick and practical usage. Additionally, the personnel key adaptor integrates seamlessly with a standard locking system.
Designed to operate at 2500V AC, the MA2M6SKL11ST401 ensures safe operation in high-voltage environments. Its construction from all stainless steel guarantees durability and longevity, making it suitable for demanding industrial conditions. With a performance level of PLe and an IP67 protection class, this product delivers reliable performance even in harsh environments. Ideal for applications in industrial automation and machine safety, this product is a perfect choice for enhancing safety in your workplace. Fortress Safety is recogn...
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Personnel Key |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | MA2-M6-SKL11-ST401 |

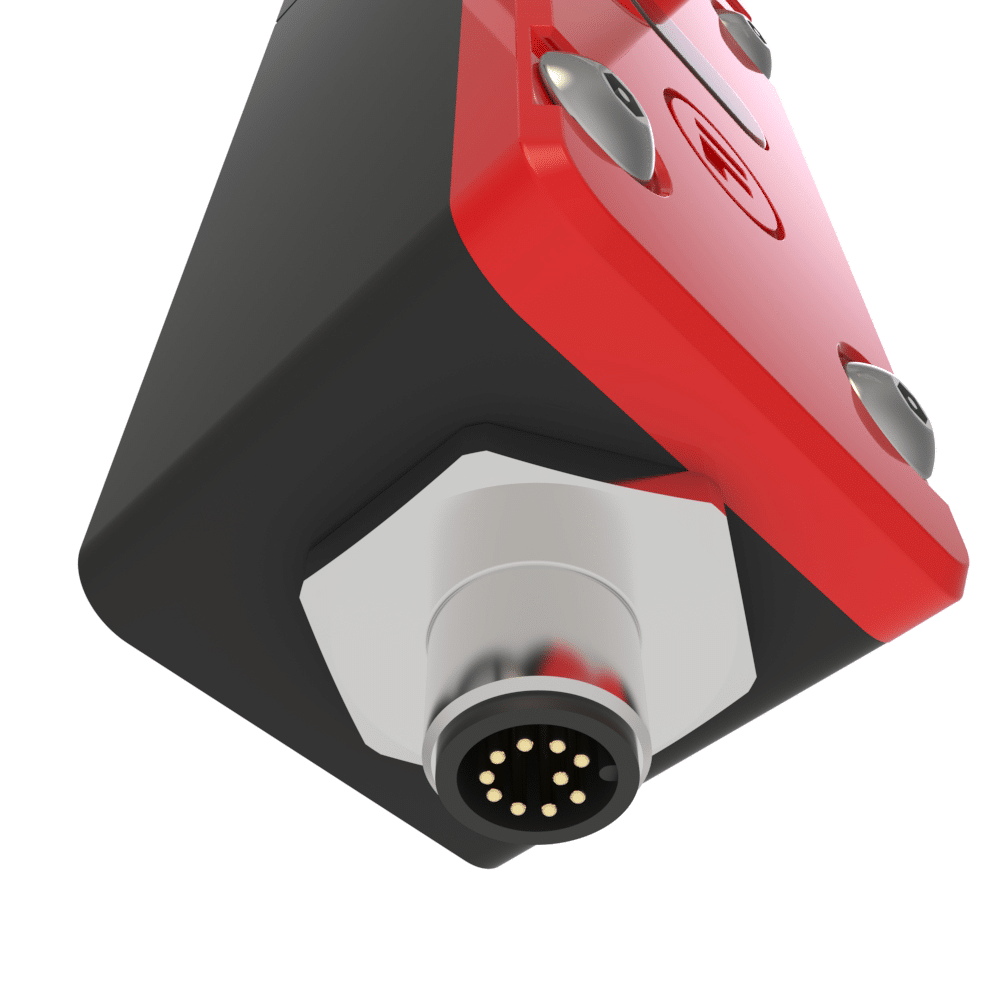

| Connector Type | Spring Activated Vibration Proof Block |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Operating Force | 0.5Nm |
| Retention Force | 10,000N(locked) |
| Housing Materials | Zinc Alloy to BSEN12844 Stainless Steel to BS3146 |
| Performance Level | PLe |
| Ingress Protection | IP67 |
| Insulating Voltage | 2500V AC |
| Internal Materials | All Stainless Steel |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Utilisation Category | AC 15 or DC 13 |
| Insulating Resistance | 20M Ohm |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Brand | Fortress Safety |
| Model | MA2M6SKL11ST401 |
| Main Category | Fortress Safety |
