Product Summary

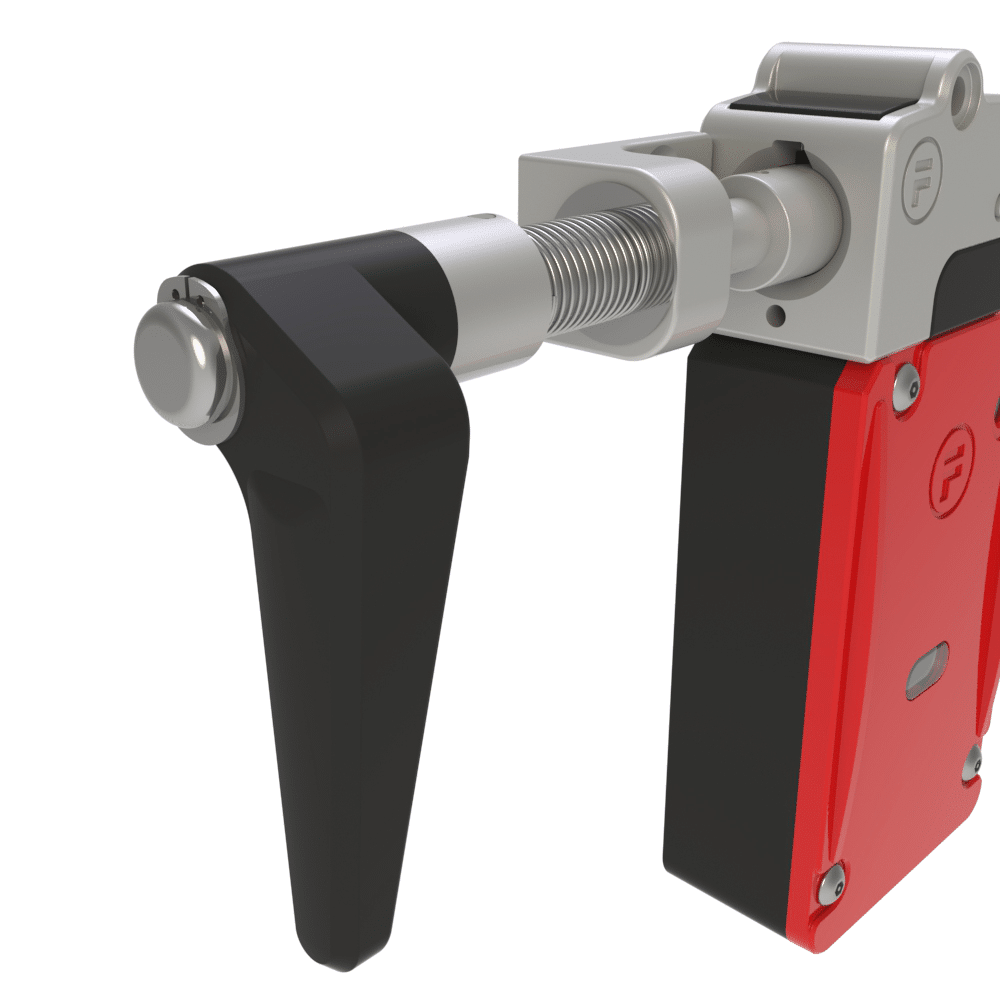

A solenoid-controlled interlock with Power-to-Lock, unmonitored solenoid safety circuits, and no manual release. Includes a left-hand AM rotary insertion handle and head.
Product Description
A solenoid-controlled interlock with Power-to-Lock, unmonitored solenoid safety circuits, and no manual release. Includes a left-hand AM rotary insertion handle and head.
The Fortress Safety MA2M6SL461 is a solenoid-controlled interlock designed to meet the highest standards in industrial safety. With its robust Power-to-Lock feature, the system securely locks while minimizing potential hazards through unmonitored solenoid safety circuits. Applications include automotive, machinery manufacturing, and energy sectors.
Made from zinc alloy and stainless steel, this product stands out for its durability and long-lasting performance. With an IP67 protection class, it operates unaffected by dust and water. The high-performance level PLe maximizes user safety, while the solenoid does not feature a manual release option. The Fortress Safety MA2M6SL461 is ideal for ensuring a safe and efficient working environment in industrial facilities. Compliant with safety standards, this locking device provides a reliable solution for all types of industrial applications.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Power-to-Lock |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | MA2-M6-SL461 |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Operating Force | 0.5Nm |
| Retention Force | 10,000N(locked) |
| Actuator Contact | 2NC 1NO |
| Solenoid Voltage | 24V ac/dc, 110V ac, 230V ac |
| Housing Materials | Zinc Alloy to BSEN12844 Stainless Steel to BS3146 |
| Performance Level | PLe |
| Solenoid Contacts | 1NO |
| Ingress Protection | IP67 |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Switches Conformance | DIN VDE 0060 Part 206 & IEC 947-5-1 |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Solenoid Voltage Tolerance | 90% to 110% of nominal |
| Solenoid Rating (Duty Cycle) | 100% |
| Brand | Fortress Safety |
| Model | MA2M6SL461 |
| Main Category | Fortress Safety |
