Fortress Safety
Fortress Safety
MA2M7SL461
In Stock (100 items)
53 views
€0,00
VAT Included
Product Summary

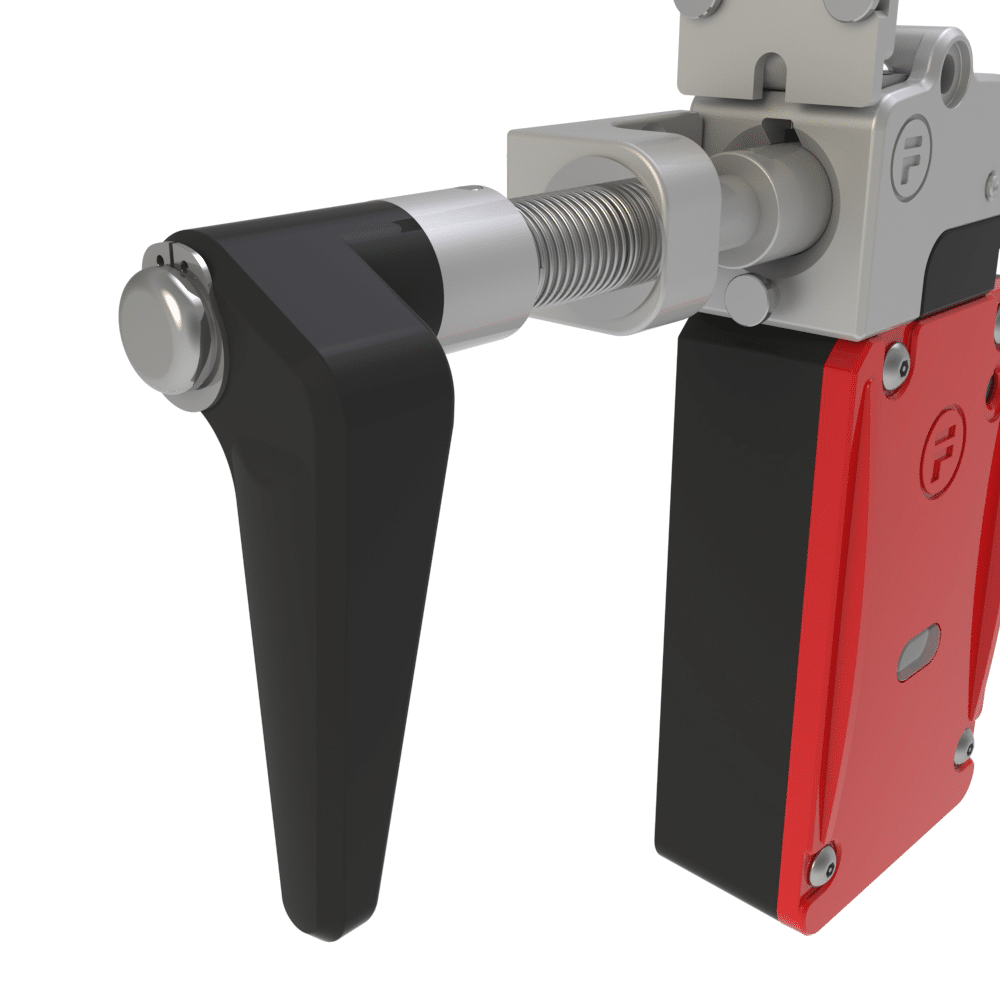

A solenoid-controlled interlock with Power-to-Lock, unmonitored solenoid safety circuits, and no manual release. Features an AM rotary insertion handle and head.
Product Description
A solenoid-controlled interlock with Power-to-Lock, unmonitored solenoid safety circuits, and no manual release. Features an AM rotary insertion handle and head.
The Fortress Safety MA2M7SL461 model offers an excellent solution for industrial safety. This solenoid-controlled interlock, equipped with Power-to-Lock functionality, enhances your security while ensuring maximum protection through unmonitored solenoid safety circuits. With no manual release feature, this product prioritizes operator safety, aiming to minimize workplace accidents.
Constructed from zinc alloy and stainless steel, the MA2M7SL461 stands out for its durability and long-lasting performance. With an IP67 protection class, it provides exceptional resistance against dust and water, making it an ideal choice for harsh industrial environments. Boasting a performance level of PLe, this interlock meets high safety standards, thereby reducing risks in the workplace. Elevate your safety measures with the Fortress Safety brand and the MA2M7SL461 model!
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Power-to-Lock |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | MA2-M7-SL461 |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Operating Force | 0.5Nm |
| Retention Force | 10,000N(locked) |
| Actuator Contact | 2NC 1NO |
| Solenoid Voltage | 24V ac/dc, 110V ac, 230V ac |
| Housing Materials | Zinc Alloy to BSEN12844 Stainless Steel to BS3146 |
| Performance Level | PLe |
| Solenoid Contacts | 1NO |
| Ingress Protection | IP67 |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Switches Conformance | DIN VDE 0060 Part 206 & IEC 947-5-1 |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Solenoid Voltage Tolerance | 90% to 110% of nominal |
| Solenoid Rating (Duty Cycle) | 100% |
| Brand | Fortress Safety |
| Model | MA2M7SL461 |
| Main Category | Fortress Safety |
