Fortress Safety
Fortress Safety
MSS-1-0-CLIN-A00302-D024PU-EM
In Stock (100 items)
50 views
€0,00
VAT Included
Product Summary

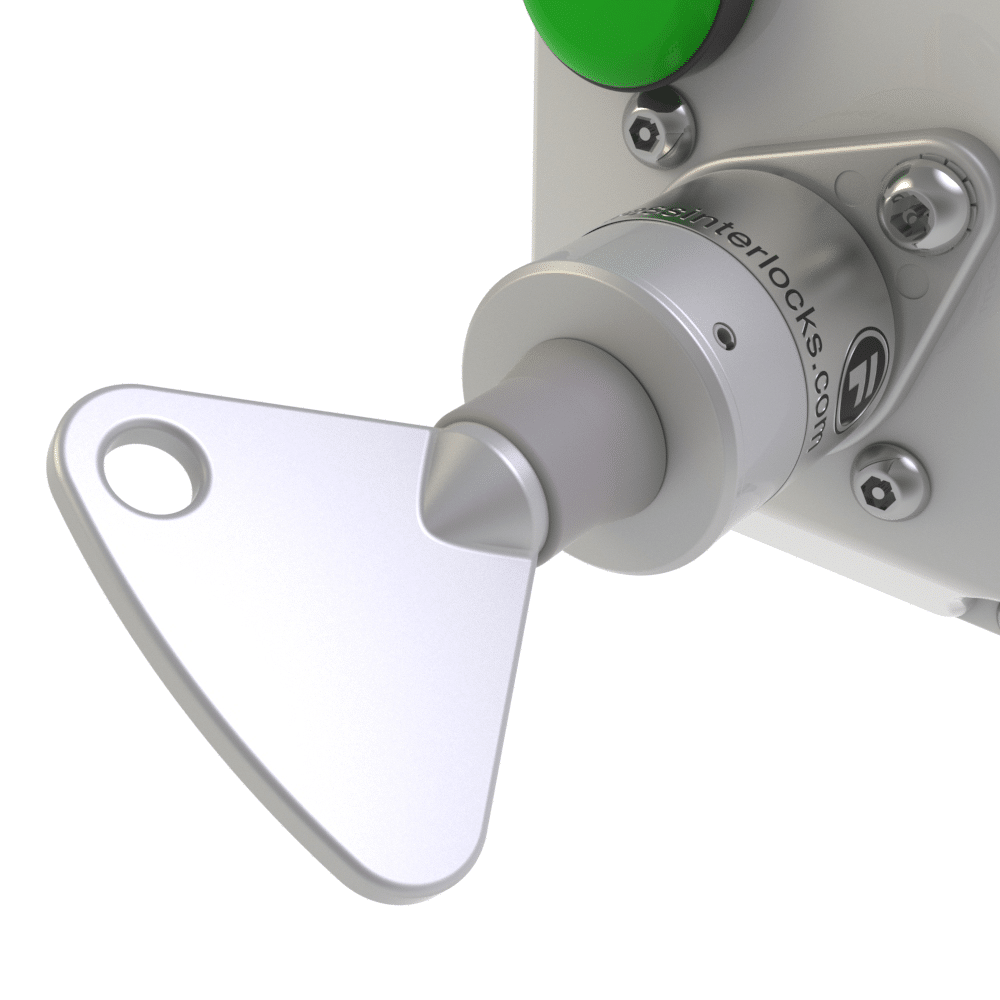

Mini solenoid controlled key switch unit is used where the key needs to remain trapped until an electrical signal has been received. Available as power-to-unlock solenoid only.
Product Description
Mini solenoid controlled key switch unit is used where the key needs to remain trapped until an electrical signal has been received. Available as power-to-unlock solenoid only.
The MSS-1-0-CLIN-A00302-D024PU-EM model from Fortress Safety is a high-performance mini solenoid controlled switch unit designed for use in critical applications where the switch must be held until an electrical signal is received. Constructed from durable zinc alloy, this switch stands out for its longevity and resilience. It is certified with CE marking, ensuring compliance with all applicable directives, which highlights its adherence to safety standards. The MSS-1-0-CLIN-A00302-D024PU-EM model offers a power-on function, enhancing security in industrial processes and ensuring operator safety. It is specifically designed for use in industrial automation systems, machine safety, and other critical applications. By choosing this product from Fortress Safety, you elevate your safety standards to the highest level.
Technical Specifications
| Category | Cat. 4, PLe (EN / ISO 13849-1) and SIL3 (EN/IEC 62061) |
| Features | Power-to-Unlock |
| Standards | EN60947-3:2009 ISO EN14119:2013 EN13849-1:2008 EN13849-2:2012 EN62061:2005 |
| Cable Size | 26 – 14 AWG |
| Part Number | MSS-1-0-CLIN-A00302-D024PU-EM |
| Certifications | CE marked for all applicable directives |
| Lock Mechanism | Die-cast zinc body with stainless steel |
| Mechanical Life | 1,000,000 Operations |
| Housing Materials | Zinc Alloy |
| Power Consumption | 12W (current at Nominal 24V DC = 500mA) |
| Maximum Operating Current | 3A at 24V – AC-12, AC-15, DC-12, DC-13 |
| Minimum Operating Current | 5mA at 20v |
| Functional Safety Data - DC | High 99% (with correct monitoring) |
| Functional Safety Data - B10d | 5,000,000 |
| Brand | Fortress Safety |
| Model | MSS-1-0-CLIN-A00302-D024PU-EM |
| Main Category | Fortress Safety |
