Fortress Safety
Fortress Safety
NO2T6SKL61LL416L0GKKKNT03298F200
In Stock (100 items)
166 views
€0,00
VAT Included
Product Summary
A long-body solenoid-controlled interlock with Power-to-Unlock and unmonitored safety circuits. Includes a personnel key adaptor, control options, and quick disconnect functionality.
Product Description
A long-body solenoid-controlled interlock with Power-to-Unlock and unmonitored safety circuits. Includes a personnel key adaptor, control options, and quick disconnect functionality.

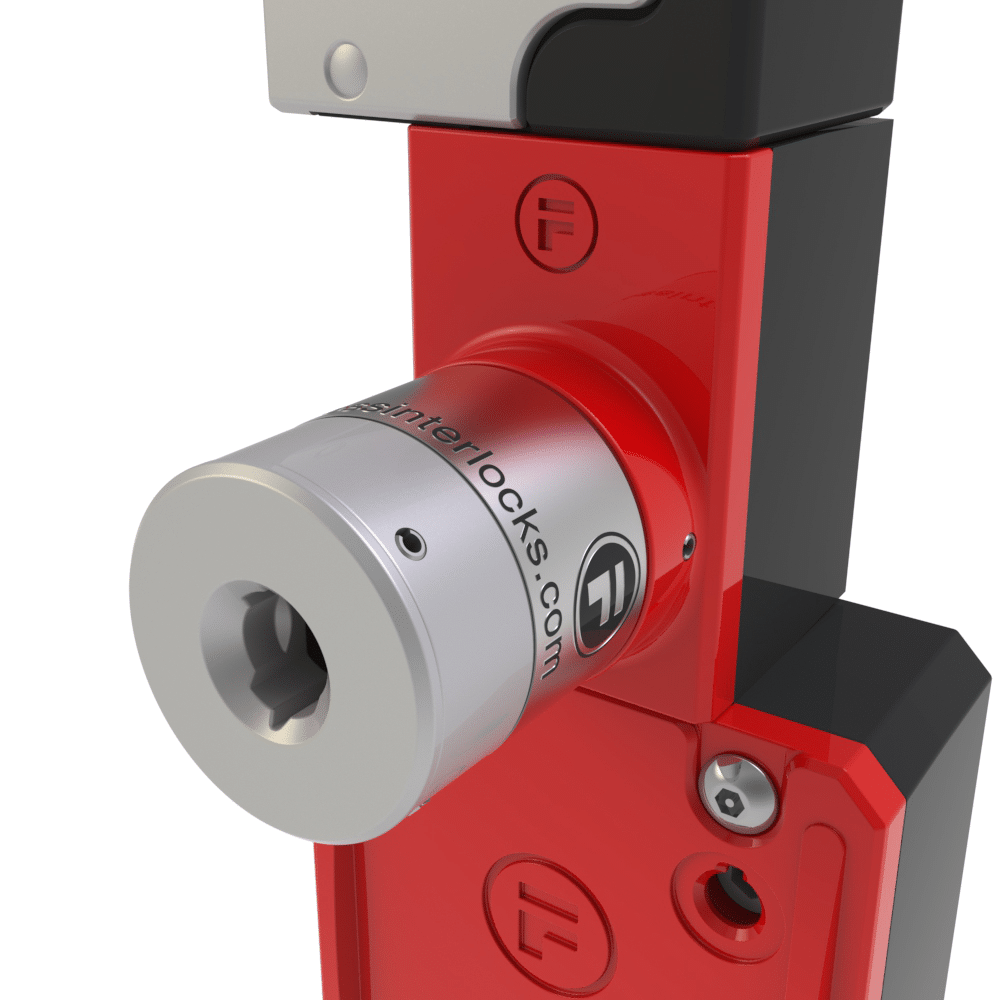

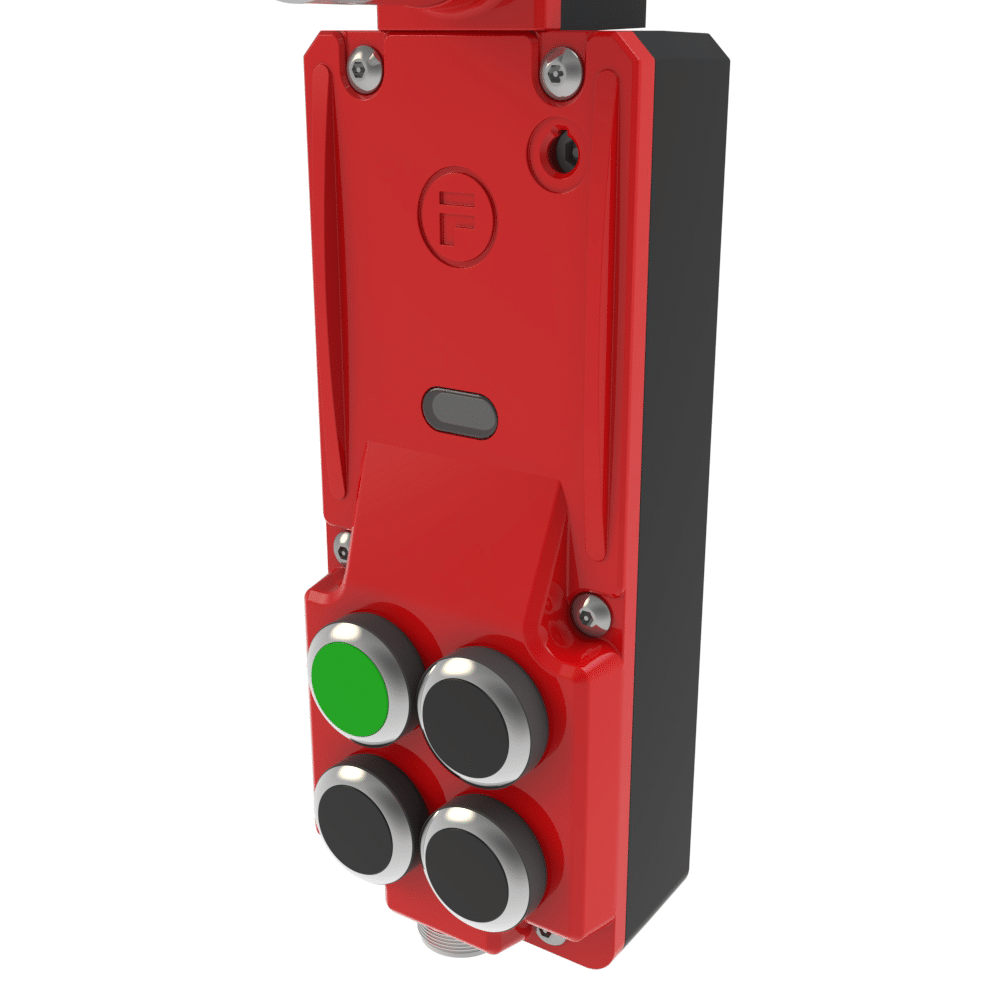

The Fortress Safety NO2T6SKL61LL416L0GKKKNT03298F200 model is a long-body solenoid-controlled interlock system that offers high performance in industrial safety applications. Equipped with Power-to-Unlock feature and unmonitored safety circuits, this product prioritizes the safety of personnel in workplaces. Its all-stainless steel construction enhances durability, while the IP65 protection class ensures high resistance to harsh industrial environments.

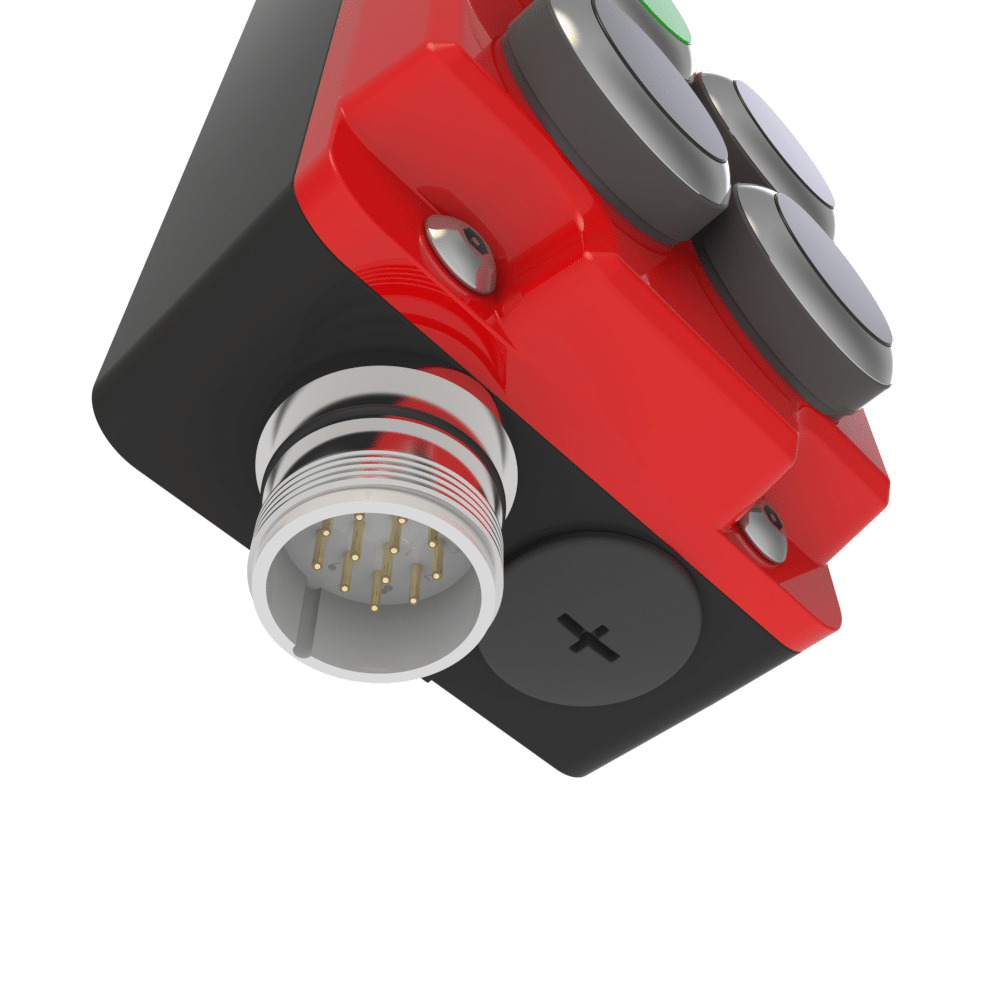

The NO2T6SKL61LL416L0GKKKNT03298F200 complies fully with safety standards, boasting a Performance Level of PLe. Additionally, it features a personnel key adaptor and control options, providing a user-friendly experience. The quick disconnect functionality allows for easy installation and maintenance. By choosing Fortress Safety, you increase your security while enhancing operational efficiency in industrial facilities. Step into a secure and efficient working environment with Fortress Safety.
Technical Specifications
| B10d | 5000000 |
| Features | Personnel Key, Power-to-Unlock |
| Lamp Life | 100,000 hrs on time |
| Cable Size | 26 – 14 AWG |
| Environment | Indoor, Outdoor |
| Part Number | NO2-T6-SKL61-LL416-L0GKKKN-T03298-F2-00 |
| Connector Type | Spring Activated Vibration Proof Block |
| Paint Finishes | Gloss Powder Coat on Passivated bodies |
| Control Voltage | 24V DC |
| Mechanical Life | 1,000,000 Switching Cycles |
| Retention Force | 10,000N(locked) |
| Actuator Contact | 2NC 1NO |
| Solenoid Voltage | 24V ac/dc, 110V ac, 230V ac |
| Housing Materials | Zinc Alloy to BS1004A |
| Performance Level | PLe |
| Solenoid Contacts | 1NO |
| Ingress Protection | IP65 |
| Internal Materials | All Stainless Steel |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Switches Conformance | DIN VDE 0060 Part 206 & IEC 947-5-1 |
| Maximum Switch Current | 0.1A |
| Minimum Switch Current | 1mA at 5VDC |
| EStop Switching Principal | Positive Break |
| Switching Contact Element | Pushbutton – 1NO Emergency Stop – 2NC |
| Solenoid Voltage Tolerance | 90% to 110% of nominal (Main Body) |
| Brand | Fortress Safety |
| Model | NO2T6SKL61LL416L0GKKKNT03298F200 |
| Main Category | Fortress Safety |
