Fortress Safety
Fortress Safety
TA2T6SE411
In Stock (100 items)
43 views
€0,00
VAT Included
Product Summary

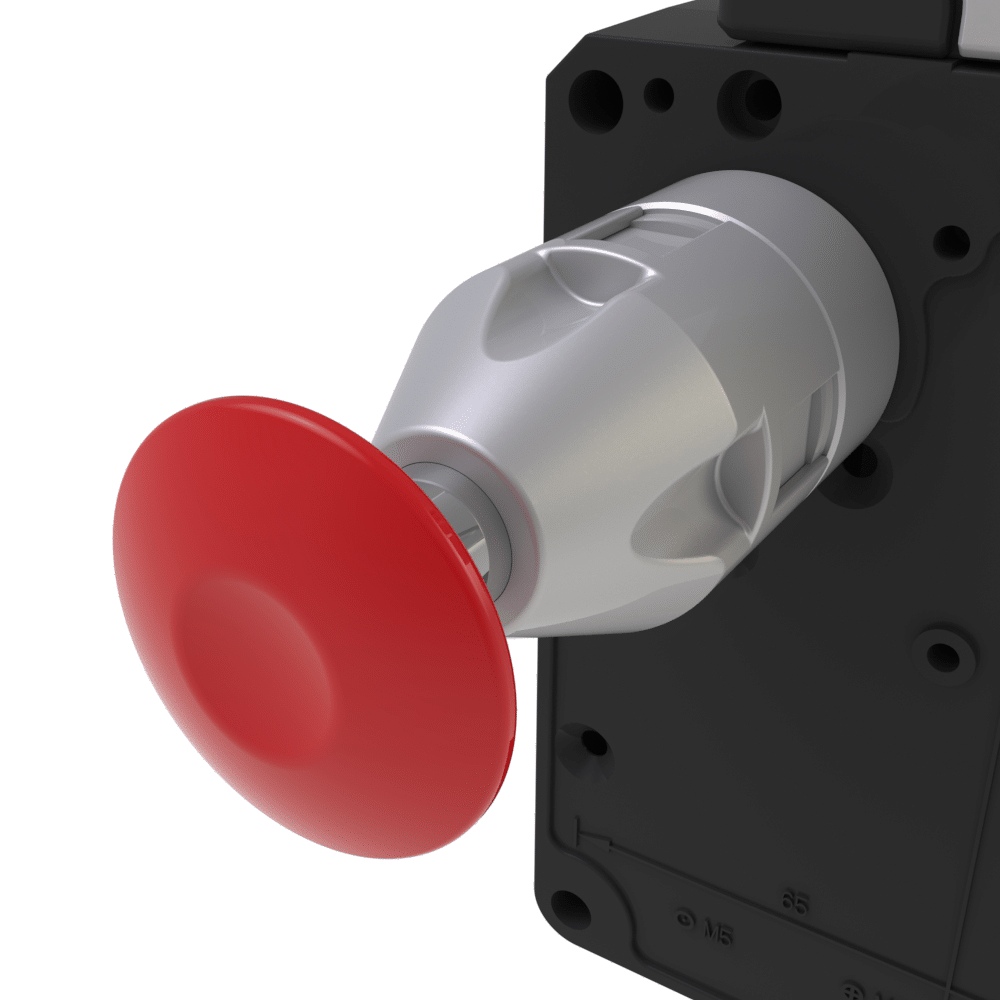

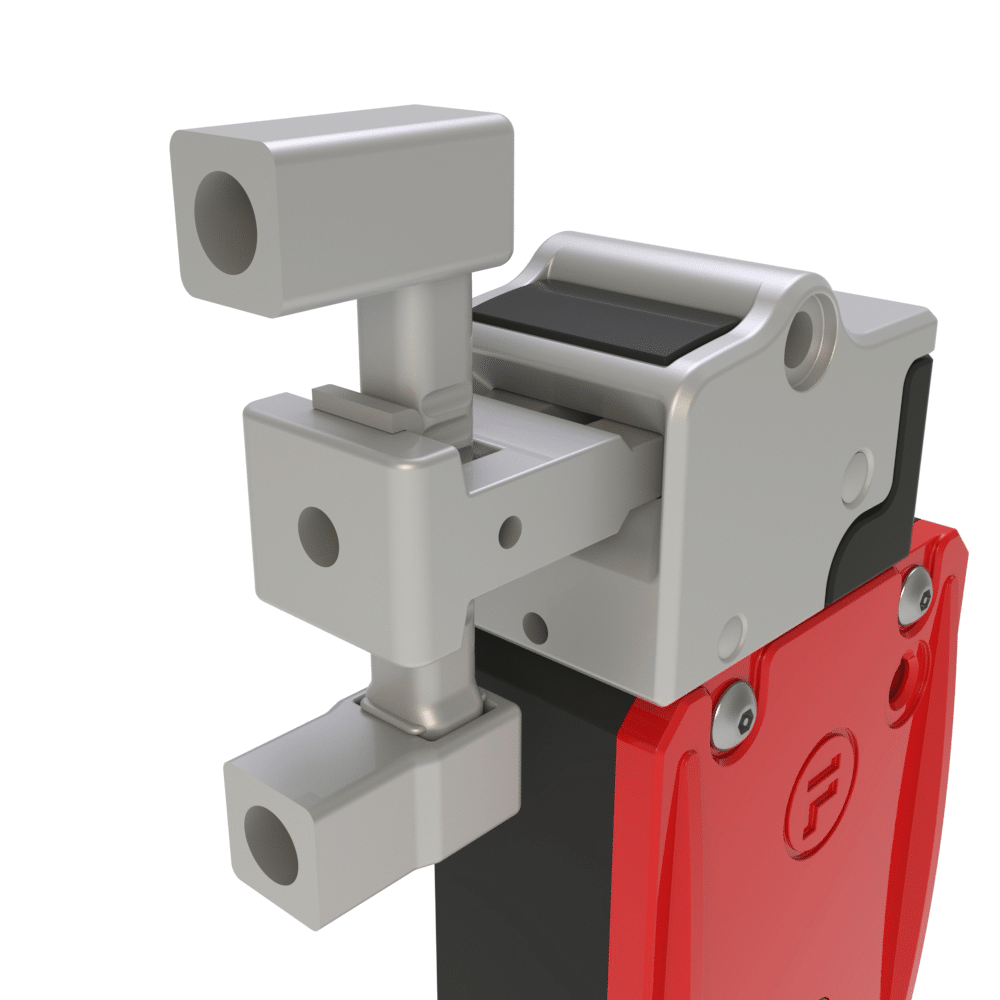

A solenoid-controlled interlock with integrated escape release, Power-to-Unlock, auxiliary release, and monitored safety circuits. Features an AT tongue.
Product Description
A solenoid-controlled interlock with integrated escape release, Power-to-Unlock, auxiliary release, and monitored safety circuits. Features an AT tongue.
The Fortress Safety TA2T6SE411 model is a solenoid-controlled interlock system designed to deliver superior performance in industrial safety applications. Equipped with an integrated escape release mechanism and Power-to-Unlock feature, it ensures quick and secure exit in emergency situations. Additionally, it includes auxiliary release and monitored safety circuits to enhance user protection.
Manufactured from zinc alloy in compliance with BSEN12844 standards, this model boasts an IP67 protection class, making it resistant to external factors. Operating within a voltage range of 90% to 110% of nominal, the TA2T6SE411 achieves a performance level of PLe, meeting the stringent safety standards required in industrial facilities. With its high reliability and durability, this product is the ideal solution for ensuring safety in factories, automation systems, and other industrial environments.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Escape Release, Power-to-Unlock |
| Materials | Stainless Steel to BS3146 |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | TA2-T6-SE411 |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Operating Force | 5N |
| Retention Force | 10,000N(locked) |
| Actuator Contact | 2NC 1NO |
| Solenoid Voltage | 24V ac/dc, 110V ac, 230V ac |
| Housing Materials | Zinc Alloy to BSEN12844 |
| Performance Level | PLe |
| Solenoid Contacts | 2NC 1NO |
| Ingress Protection | IP67 |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Switches Conformance | DIN VDE 0060 Part 206 & IEC 947-5-1 |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Solenoid Voltage Tolerance | 90% to 110% of nominal |
| Solenoid Rating (Duty Cycle) | 100% |
| Brand | Fortress Safety |
| Model | TA2T6SE411 |
| Main Category | Fortress Safety |
