Fortress Safety
Fortress Safety
TA2T6SL111
In Stock (100 items)
60 views
€0,00
VAT Included
Product Summary

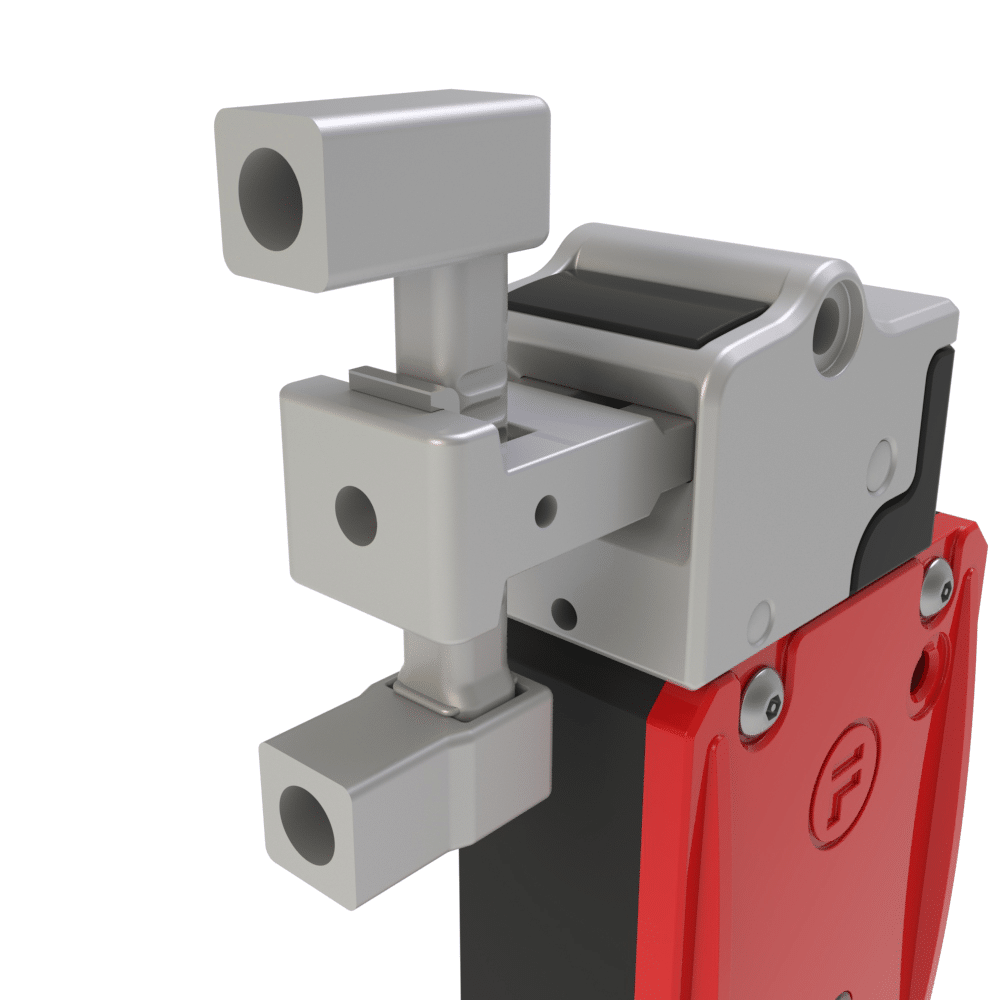

A solenoid-controlled interlock with Power-to-Unlock, auxiliary release, and monitored safety circuits. Features an AT tongue.
Product Description
A solenoid-controlled interlock with Power-to-Unlock, auxiliary release, and monitored safety circuits. Features an AT tongue.
The Fortress Safety TA2T6SL111 model offers an excellent solution in the field of industrial safety. This solenoid-controlled interlock provides a user-friendly experience with its Power-to-Unlock feature, while the auxiliary release mechanism and monitored safety circuits enhance overall safety to the highest level. Equipped with an AT tongue, this interlock stands out for its reliability even in harsh working conditions.
Constructed from zinc alloy and designed in compliance with BSEN12844 standards, the TA2T6SL111 operates within a voltage range of 90% to 110% of nominal. With a performance level rated as PLe, it also boasts an IP67 protection class, making it resistant to dust and water. This product can be utilized in various fields such as industrial automation, machine safety, and ensuring workplace security. Fortress Safety's high-quality offering is an ideal choice for enhancing workplace safety and ensuring operational efficiency.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Power-to-Unlock |
| Materials | Stainless Steel to BS3146 |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | TA2-T6-SL111 |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Operating Force | 5N |
| Retention Force | 10,000N(locked) |
| Actuator Contact | 2NC 1NO |
| Solenoid Voltage | 24V ac/dc, 110V ac, 230V ac |
| Housing Materials | Zinc Alloy to BSEN12844 |
| Performance Level | PLe |
| Solenoid Contacts | 2NC 1NO |
| Ingress Protection | IP67 |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Switches Conformance | DIN VDE 0060 Part 206 & IEC 947-5-1 |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Solenoid Voltage Tolerance | 90% to 110% of nominal |
| Solenoid Rating (Duty Cycle) | 100% |
| Brand | Fortress Safety |
| Model | TA2T6SL111 |
| Main Category | Fortress Safety |
