Fortress Safety
Fortress Safety
THCEM4ZP3YRQ9
In Stock (100 items)
188 views
€0,00
VAT Included
Product Summary

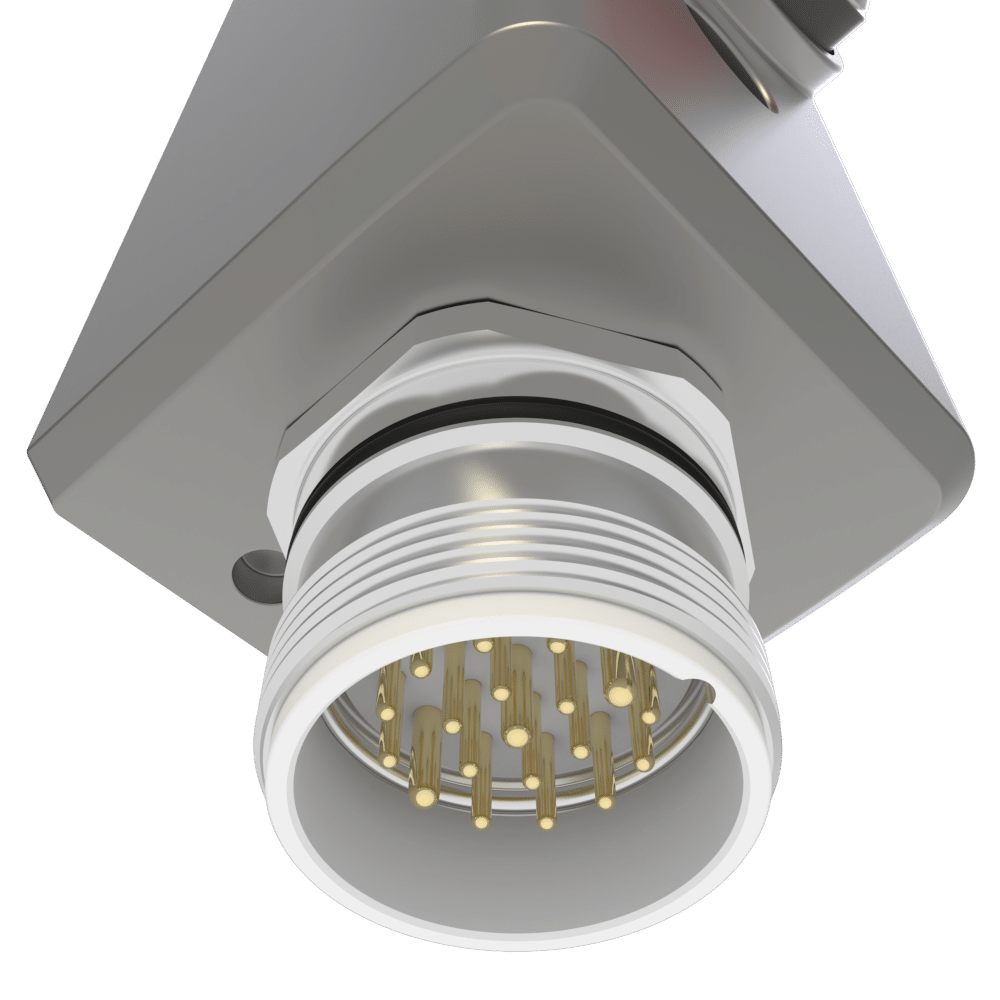

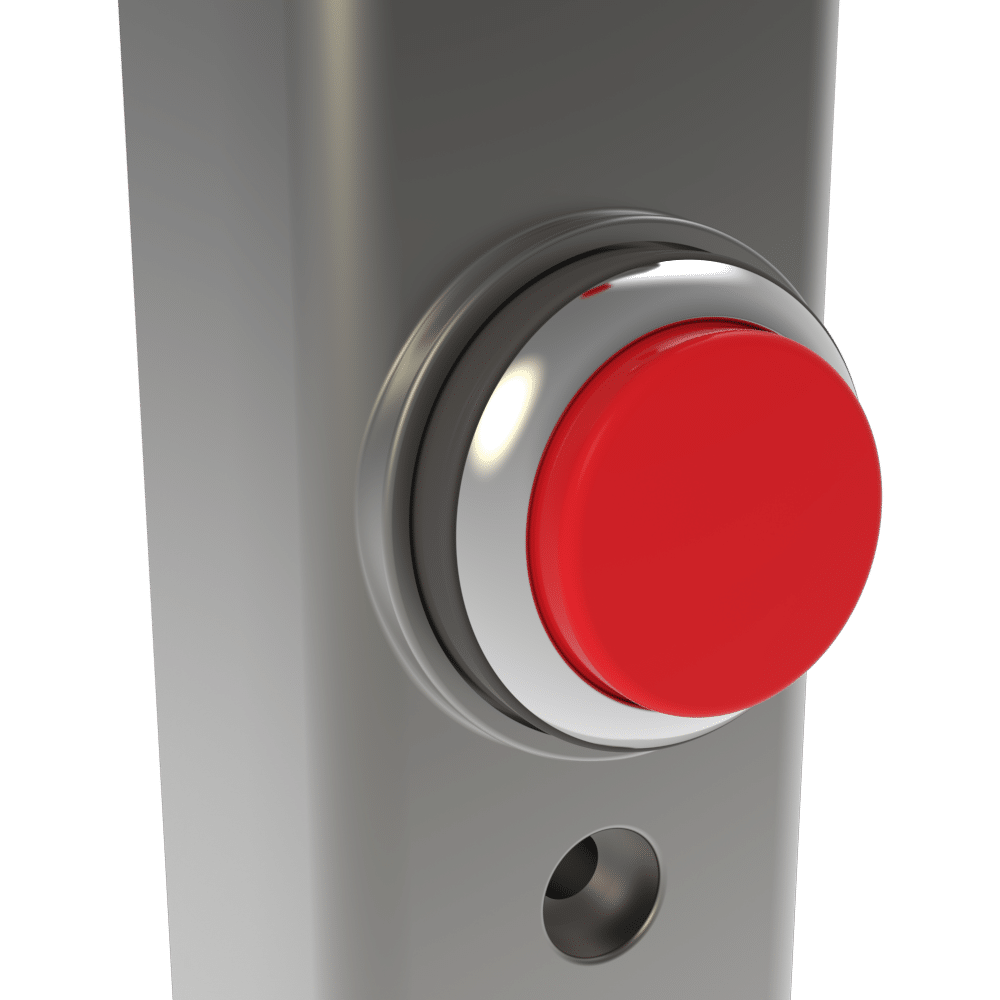

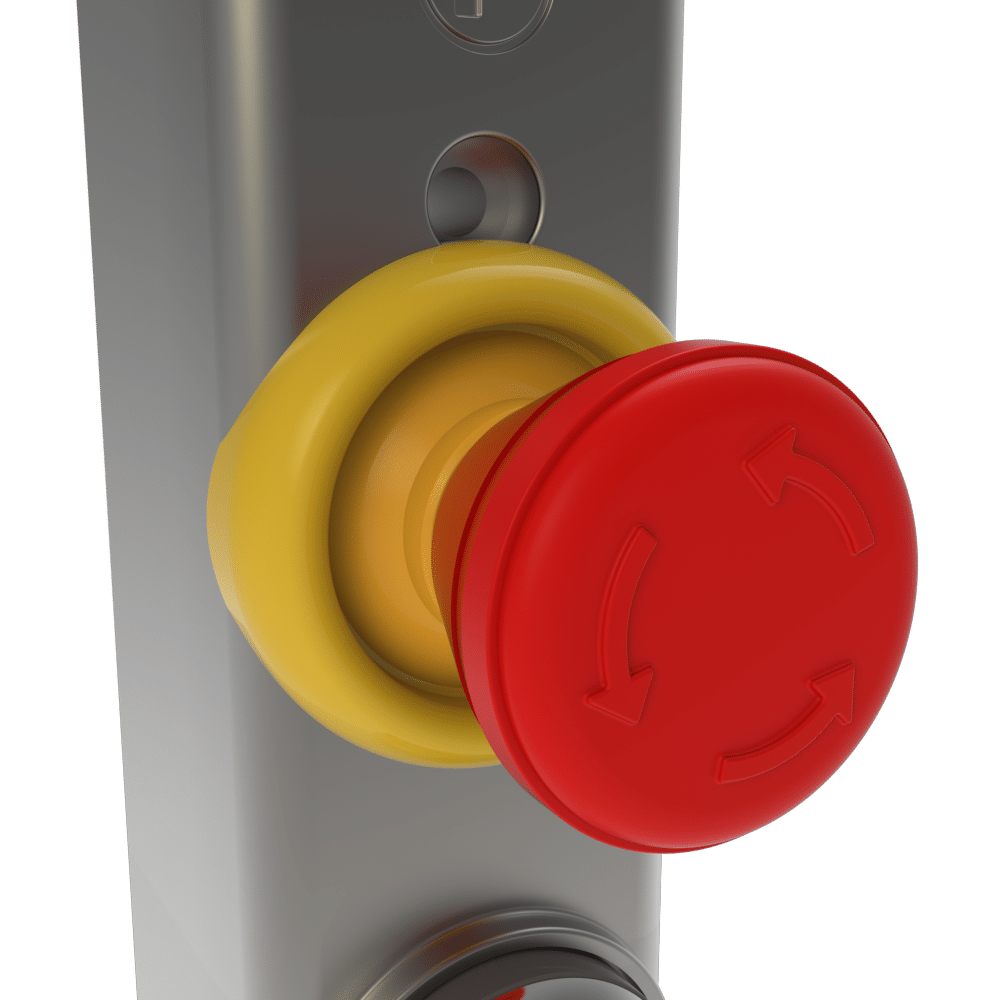

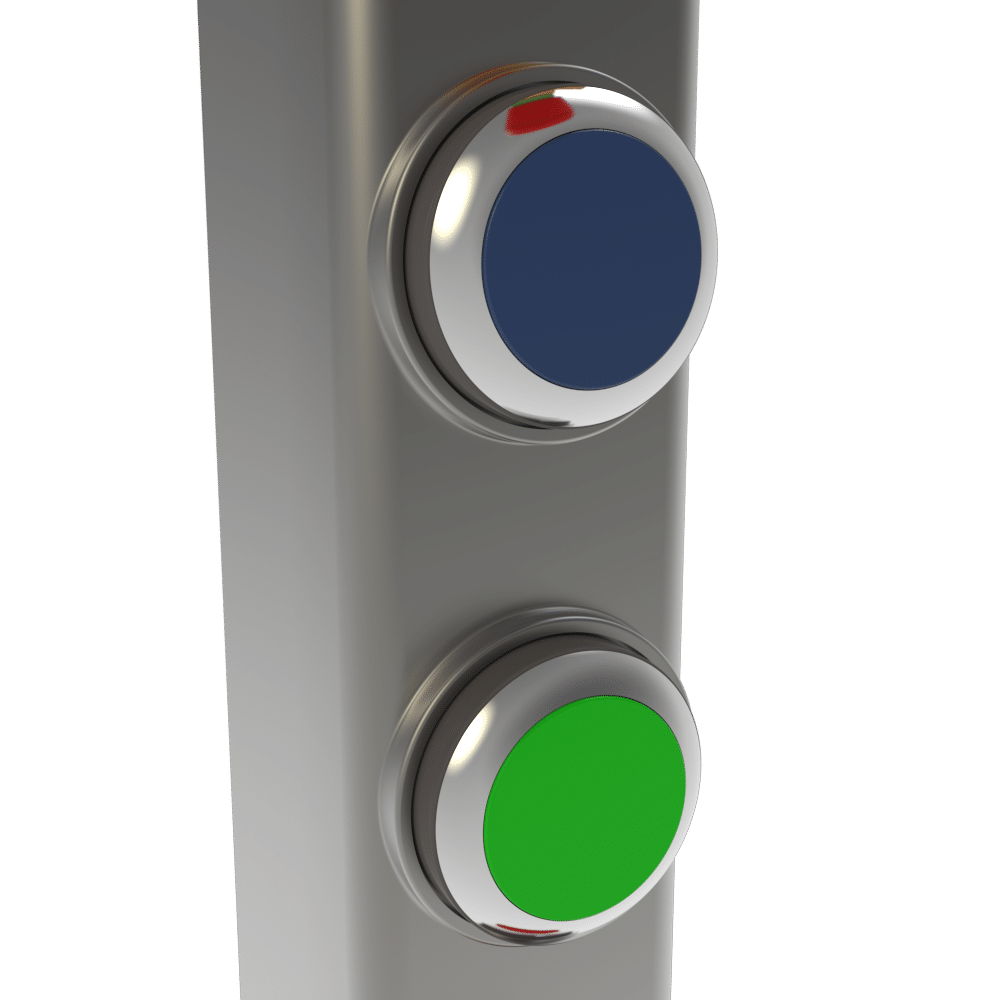

This control station includes an emergency stop, a blue illuminated pushbutton, a green pushbutton, and a red non-illuminated protruding pushbutton. Includes a 19-pin M23 quick disconnect.
Product Description
This control station includes an emergency stop, a blue illuminated pushbutton, a green pushbutton, and a red non-illuminated protruding pushbutton. Includes a 19-pin M23 quick disconnect.
The Fortress Safety THCEM4ZP3YRQ9 model is an exceptional control station designed for industrial safety applications. Equipped with an emergency stop button, a blue illuminated pushbutton, a green pushbutton, and a red non-illuminated protruding pushbutton, this device ensures a comprehensive safety solution. The 19-pin M23 quick disconnect feature allows for easy installation and connection. Operating at 24V, this control station is constructed from painted die-cast aluminum, offering a durable yet lightweight design. With an IP65 protection class, it ensures high resistance to external factors and can operate safely within a temperature range of -25°C to 40°C. Ideal for industrial facilities, automation systems, and safety applications, the THCEM4ZP3YRQ9 enhances workplace safety and efficiency. Designed with Fortress Safety's commitment to high-quality standards, this device stands out with its user-friendly design and reliability.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Control Station |
| LED Life | 100,000 hours on time |
| Environment | Indoor |
| Part Number | THCEM4ZP3YRQ9 |
| Operating Life | 1,000,000 momentary version 500,000 latching version |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 5N to 10N |
| Retention Force | 2500N |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Switching Principle | Positive Break |
| Switches Conformance | IEC 60947-5-1 |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Switching Contact Element | 1 output |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THCEM4ZP3YRQ9 |
| Main Category | Fortress Safety |
