Fortress Safety
Fortress Safety
THCETP6P3K5QM
In Stock (100 items)
46 views
€0,00
VAT Included
Product Summary

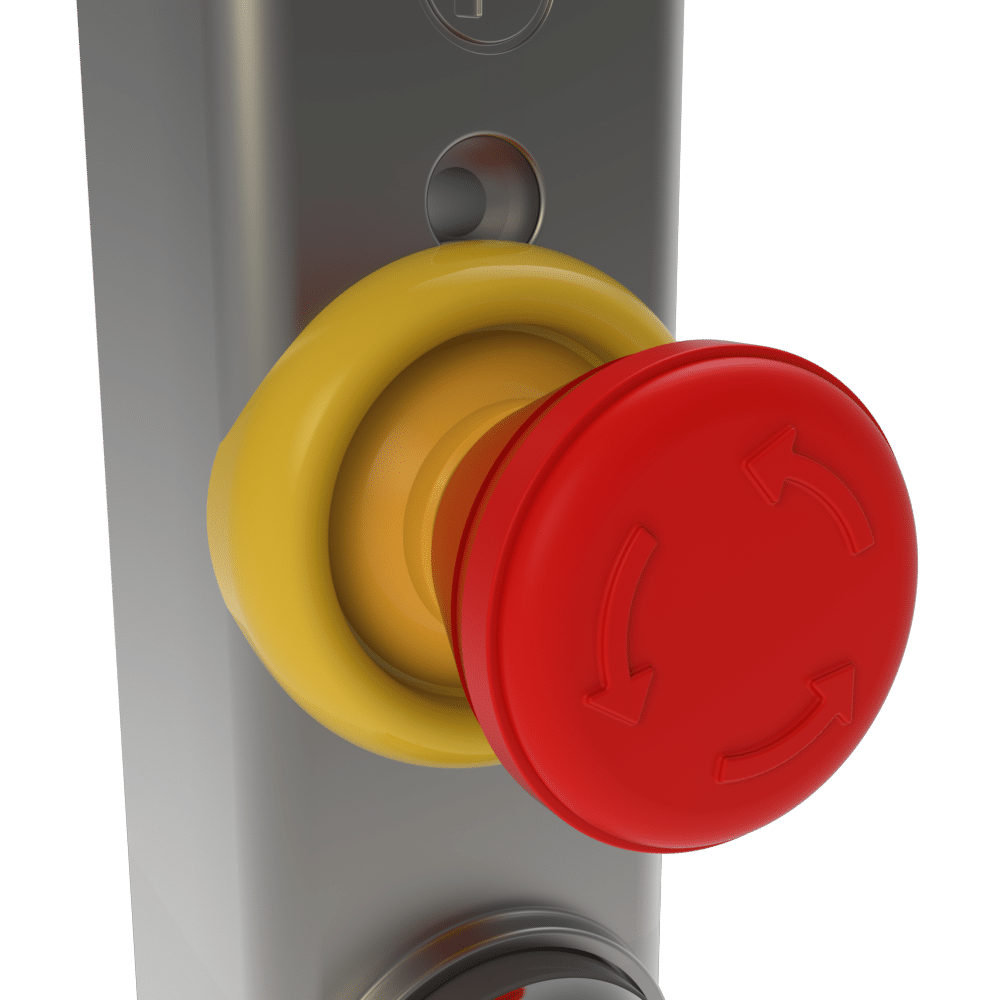

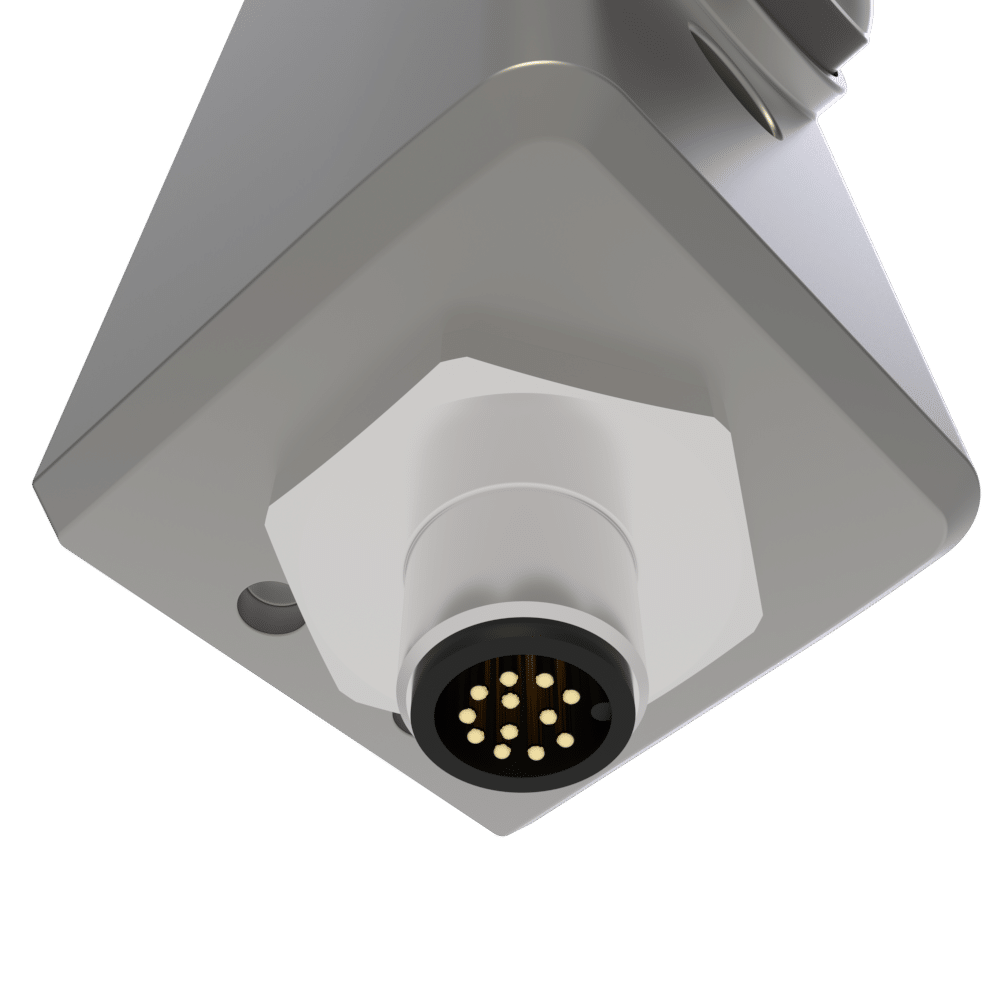

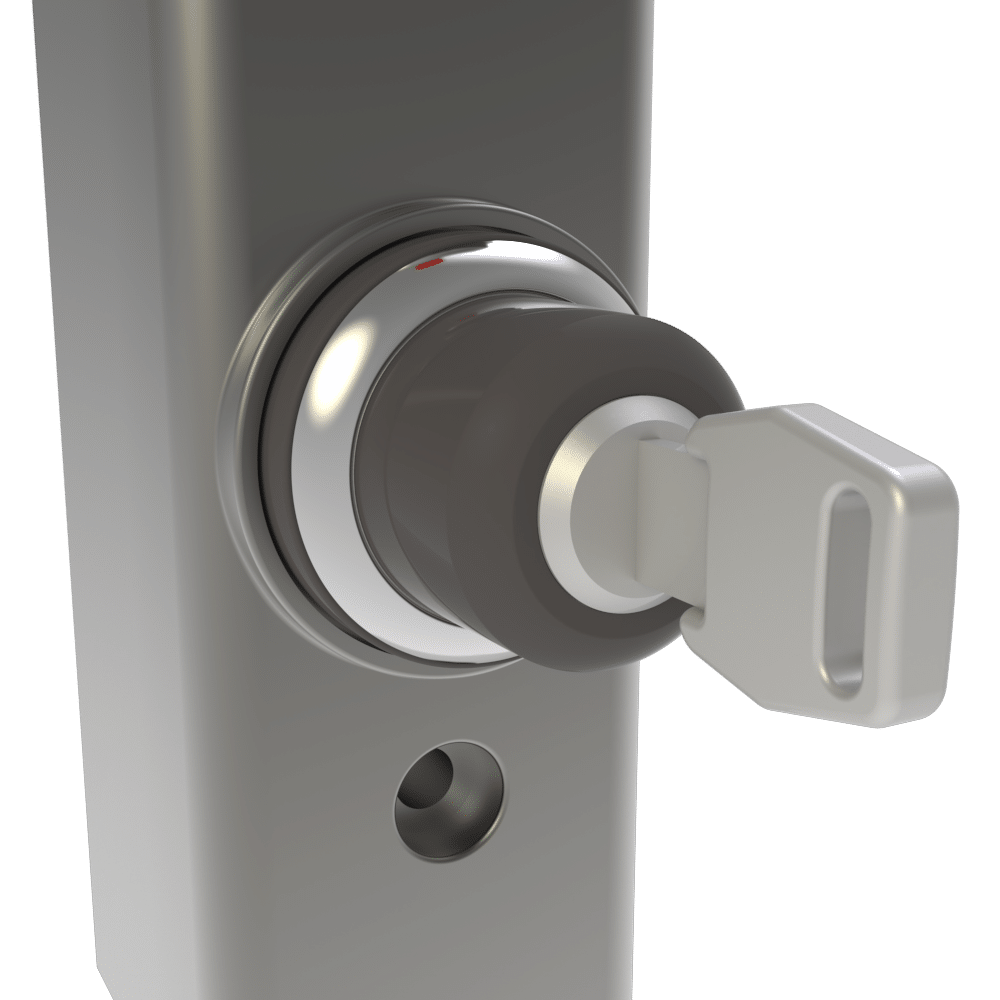

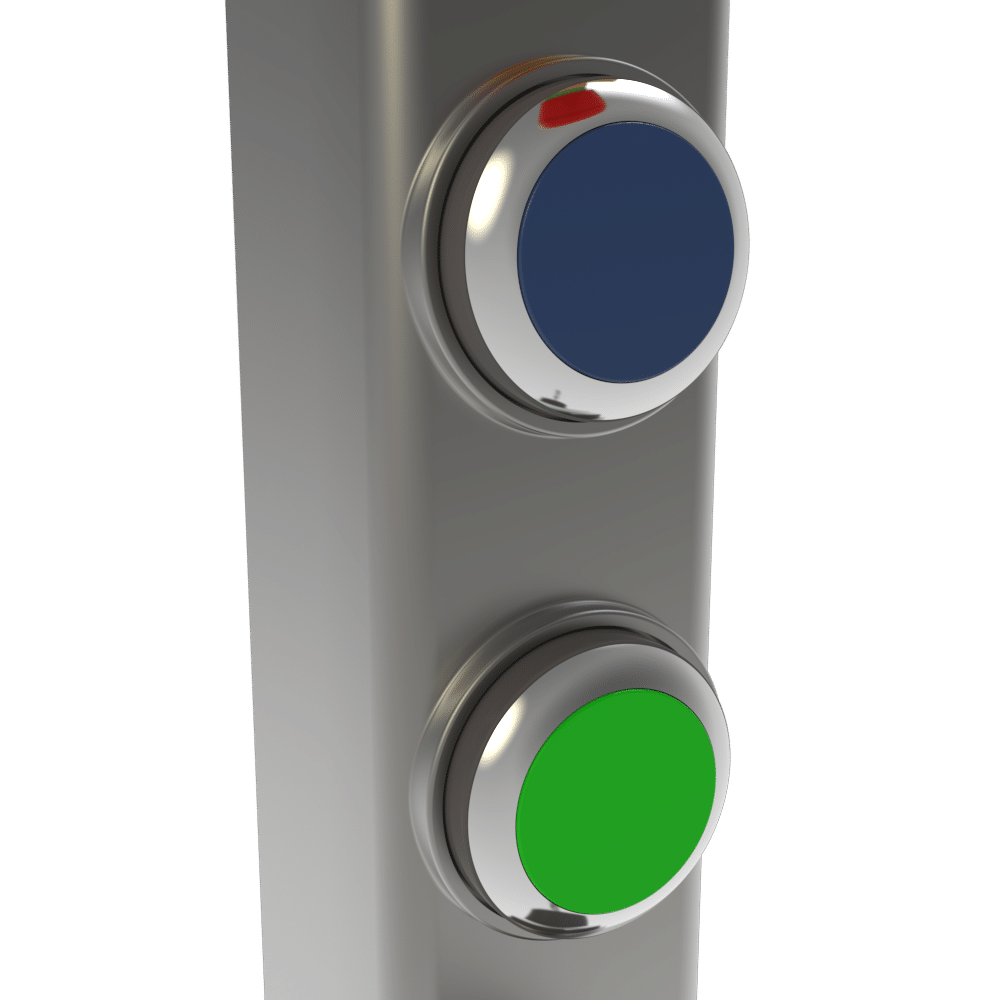

This control station includes an emergency stop, a blue pushbutton, a green pushbutton, and a 2-position latching selector key switch. Includes a 12-pin M12 quick disconnect.
Product Description
This control station includes an emergency stop, a blue pushbutton, a green pushbutton, and a 2-position latching selector key switch. Includes a 12-pin M12 quick disconnect.
The THCETP6P3K5QM model from Fortress Safety is a cutting-edge control station designed for industrial safety solutions. This product features an emergency stop button, blue and green pushbuttons, and a 2-position latching selector key switch, ensuring comprehensive control at your fingertips. With a 12-pin M12 quick disconnect, it offers practical usability and flexibility. Operating at 24V, this control station boasts an IP65 protection class, making it highly resistant to dust and water. It performs reliably in a temperature range from -25°C to 40°C, enhancing workplace safety even in challenging industrial environments. Compliance with safety standards showcases Fortress Safety's commitment to quality and security. Ideal for automation systems, production lines, and various industrial applications, the THCETP6P3K5QM is the perfect choice for those seeking both safety and durability. Choose this model for a secure and efficient operational environment.
Technical Specifications
| Colour | Dark Grey |
| Features | Control Station |
| LED Life | 100,000 hours on time |
| Environment | Indoor |
| Part Number | THCETP6P3K5QM |
| Operating Life | 1,000,000 momentary version 500,000 latching version |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 5N to 10N |
| Retention Force | 2500N |
| Contact Material | Gold |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Switching Principle | Positive Break |
| Switches Conformance | IEC 60947-5-1 |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Switching Contact Element | 1 output |
| Brand | Fortress Safety |
| Model | THCETP6P3K5QM |
| Main Category | Fortress Safety |
