Fortress Safety
Fortress Safety
THCETPZQ3
In Stock (100 items)
53 views
€0,00
VAT Included
Product Summary

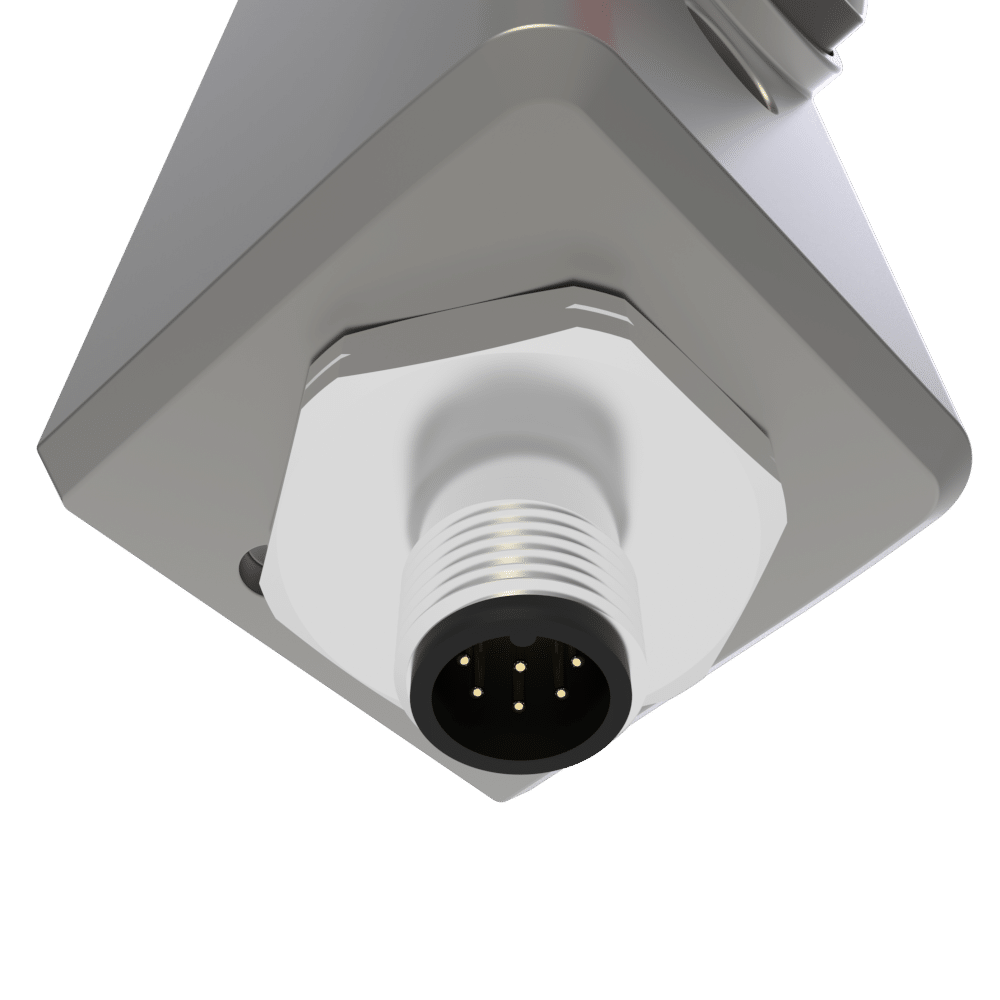

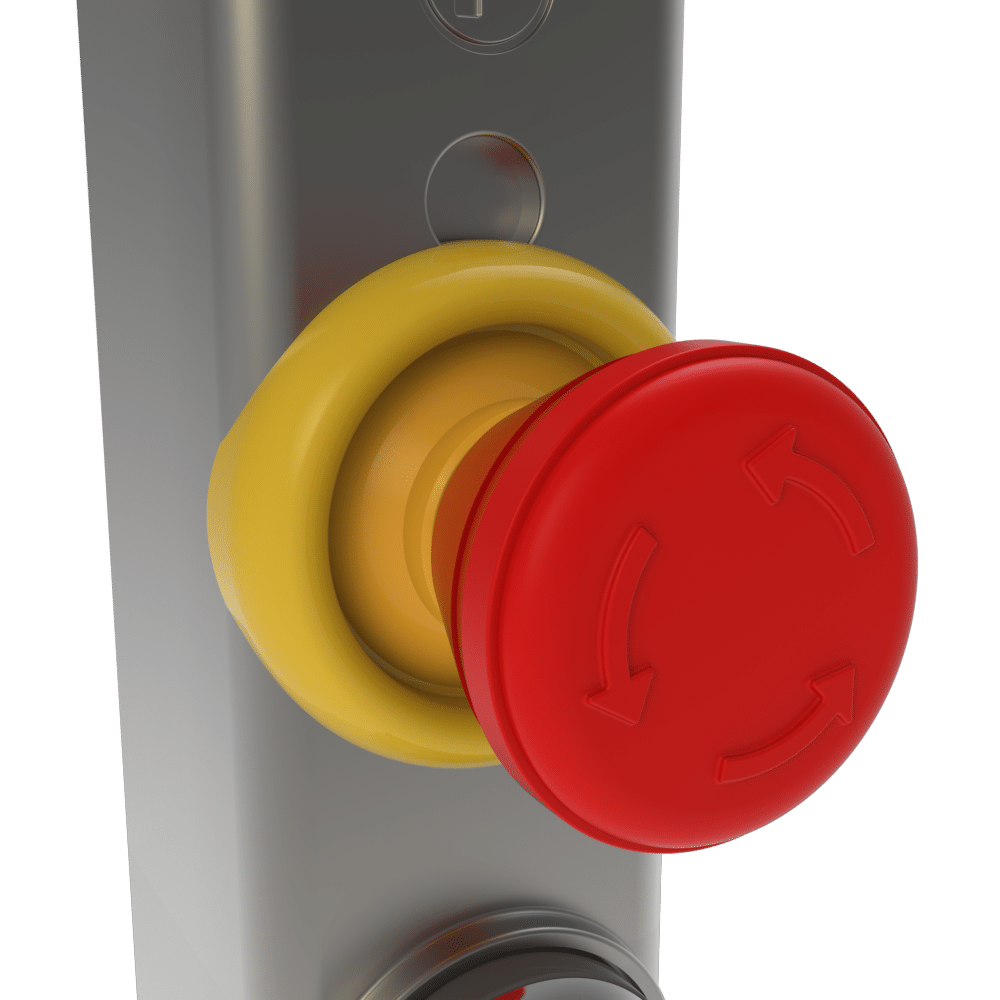

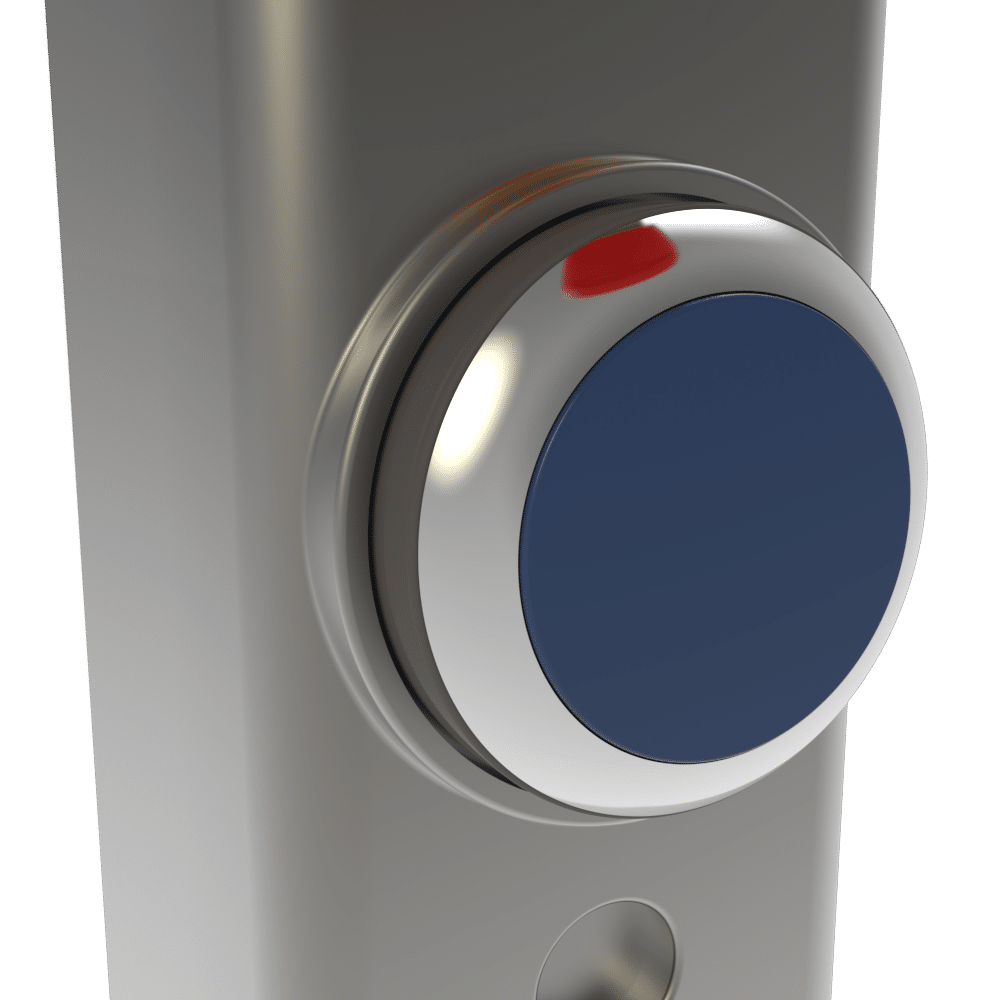

This control station includes an emergency stop and a blue pushbutton. Includes an 8-pin M12 quick disconnect.
Product Description
This control station includes an emergency stop and a blue pushbutton. Includes an 8-pin M12 quick disconnect.
The Fortress Safety THCETPZQ3 model is an excellent control station solution for your industrial safety systems. Operating at 24V, this control station is equipped with an emergency stop button and a blue pushbutton, ensuring quick access to safety measures. Constructed from painted die-cast aluminum, it boasts a robust design that meets IP65 protection standards, providing high resistance against dust and water. The THCETPZQ3 performs reliably in temperature ranges from -25°C to 40°C, making it suitable for even the harshest industrial environments. Commonly used in applications such as automation systems, machine safety, and factory automation, this control station ensures full compliance with safety regulations. With its strong and dependable design, the Fortress Safety THCETPZQ3 model is the ideal choice to enhance safety in your workplace.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Control Station |
| Environment | Indoor |
| Part Number | THCETPZQ3 |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 5N to 10N |
| Retention Force | 2500N |
| Contact Material | Gold |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Switching Principle | Positive Break |
| Switches Conformance | IEC 60947-5-1 |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Switching Contact Element | 1 output |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THCETPZQ3 |
| Main Category | Fortress Safety |
