Fortress Safety
Fortress Safety
THCGNSSELETSRP2W4
In Stock (100 items)
52 views
€0,00
VAT Included
Product Summary
This control station includes a master personnel (safety) lock (key not included), Power-to-Lock safety contacts on the head element (no monitoring contact on head), an emergency stop, a blue pushbutt...
Product Description

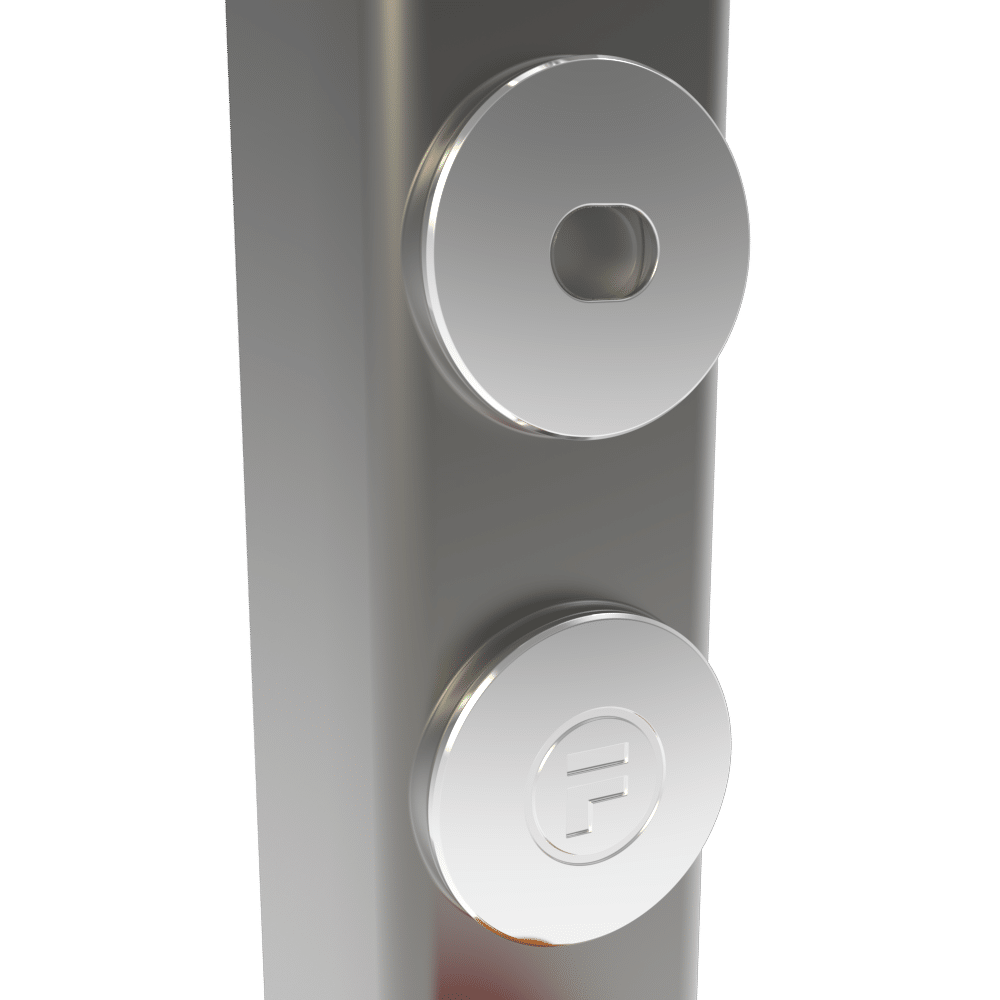

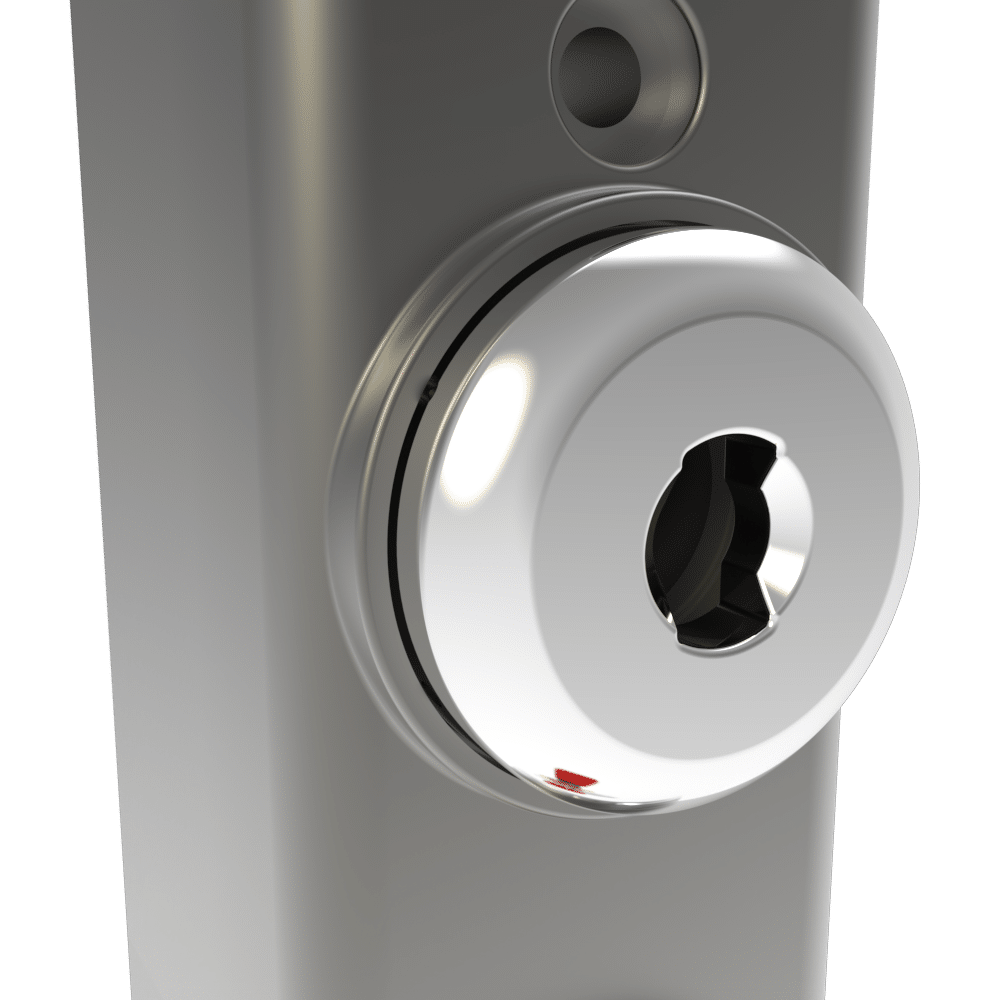

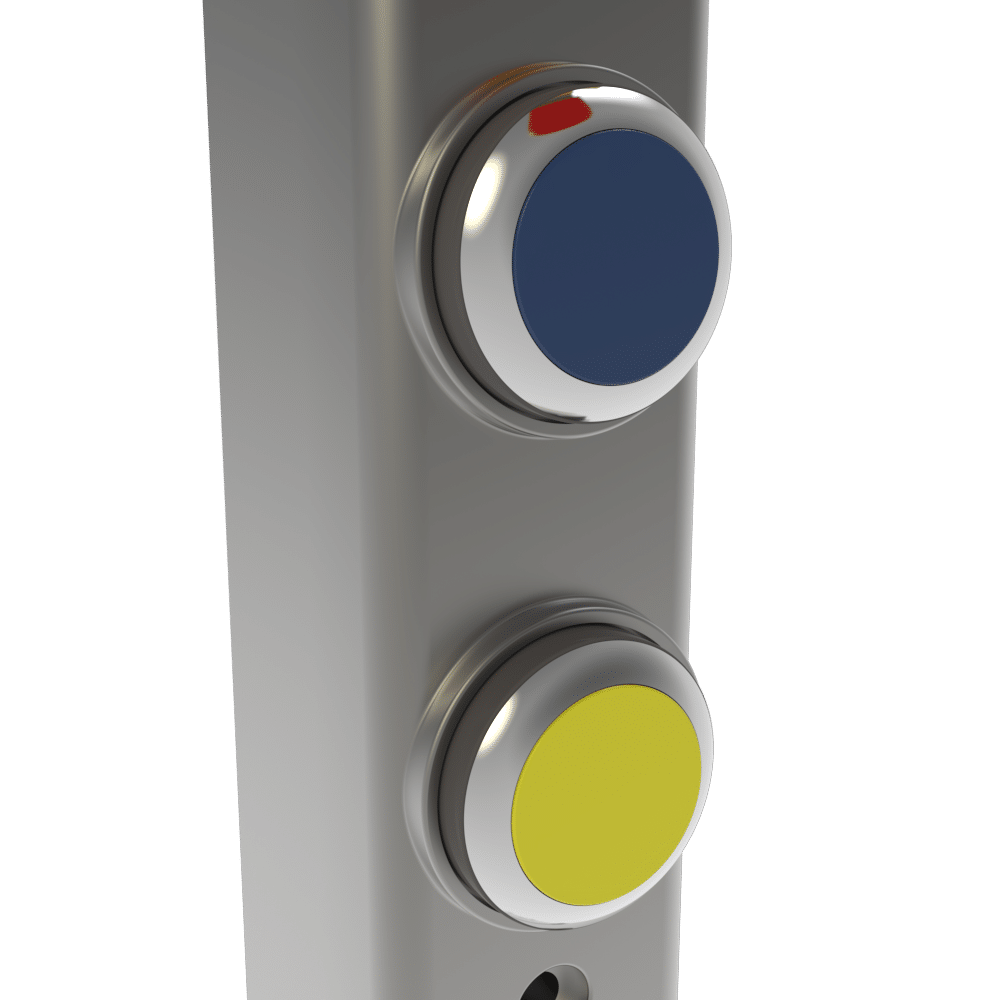

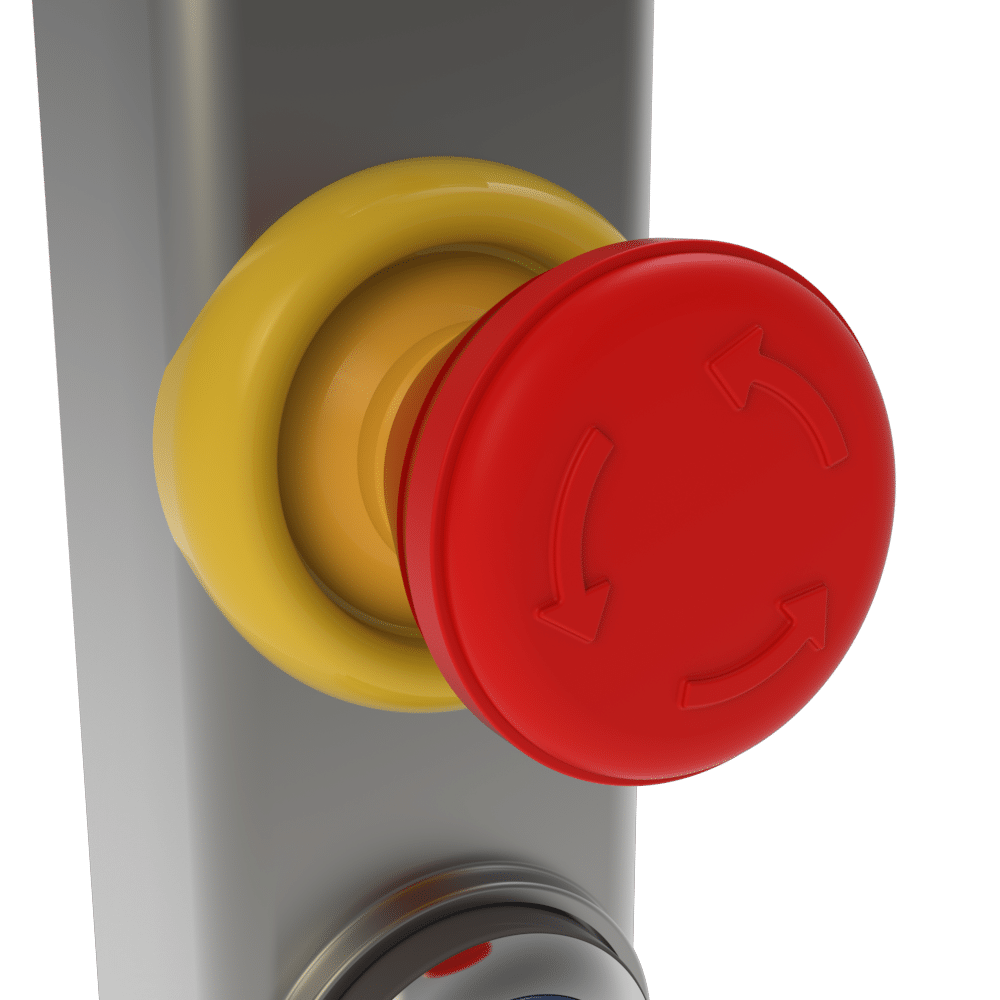

This control station includes a master personnel (safety) lock (key not included), Power-to-Lock safety contacts on the head element (no monitoring contact on head), an emergency stop, a blue pushbutton, a yellow pushbutton, and a 24 terminals connector.
The Fortress Safety THCGNSSELETSRP2W4 control station is a high-quality product designed to meet your industrial safety needs. Operating at 24V, this control station features a master personnel (safety) lock, an emergency stop button, and blue and yellow pushbuttons, enhancing your safety during operations. Additionally, the Power-to-Lock safety contacts on the head element ensure secure usage, making it ideal for demanding environments. With an IP65 protection class, this control station is resistant to dust and water, ensuring reliable performance in industrial settings. It operates efficiently within a temperature range of -25°C to 40°C, proving its durability under challenging conditions. Fortress Safety’s product stands out for its compliance with safety standards, making it an excellent choice for enhancing workplace safety.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Personnel Key, Power-to-Lock, Control Station |
| LED Life | 100,000 hours on time |
| Environment | Indoor |
| Part Number | THCGNSSELETSRP2W4 |
| Operating Life | 1,000,000 momentary version 500,000 latching version |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 0.5Nm |
| Retention Force | 2500N(locked) |
| Solenoid Rating | 350mA max @ 24VDC |
| Contact Material | Gold |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Isolating Distance | 2mm per switch element |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Switching Principle | Positive Break |
| Switches Conformance | IEC 60947-5-1 |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Switching Contact Element | 1 output |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THCGNSSELETSRP2W4 |
| Main Category | Fortress Safety |
