Product Summary

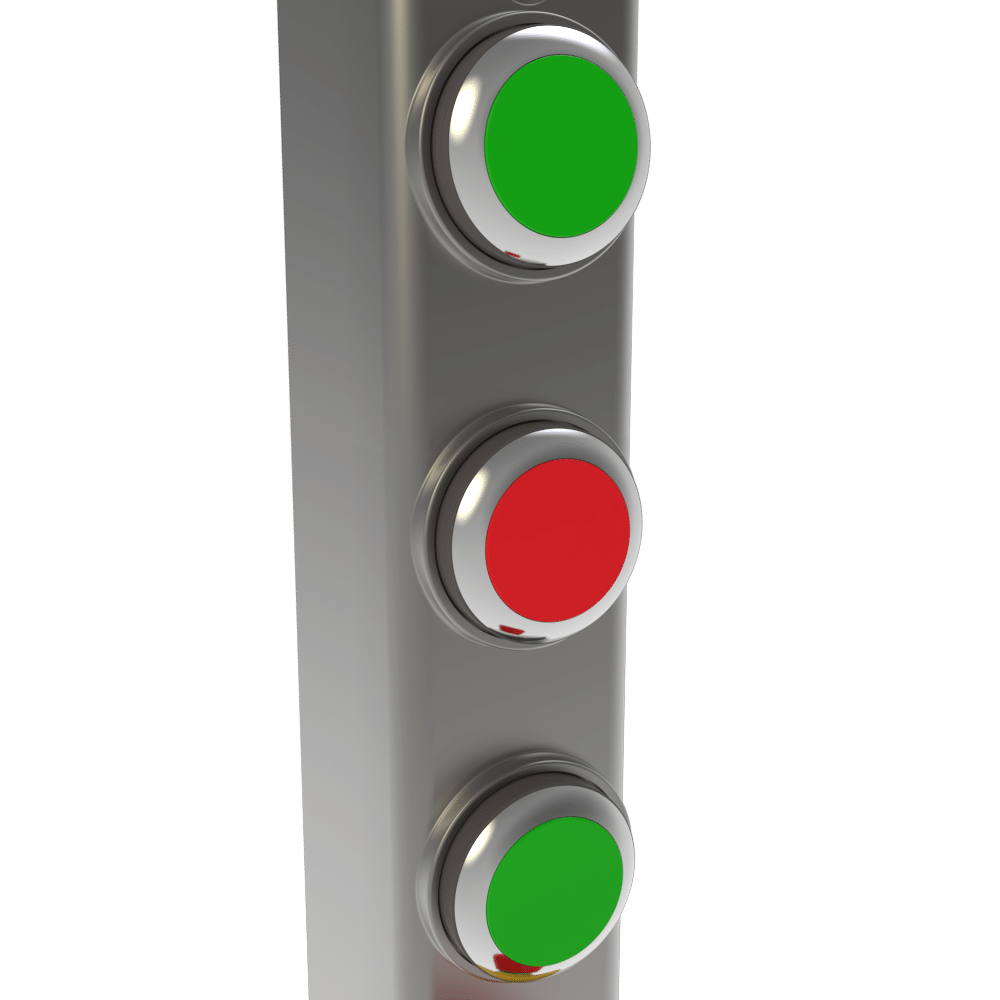

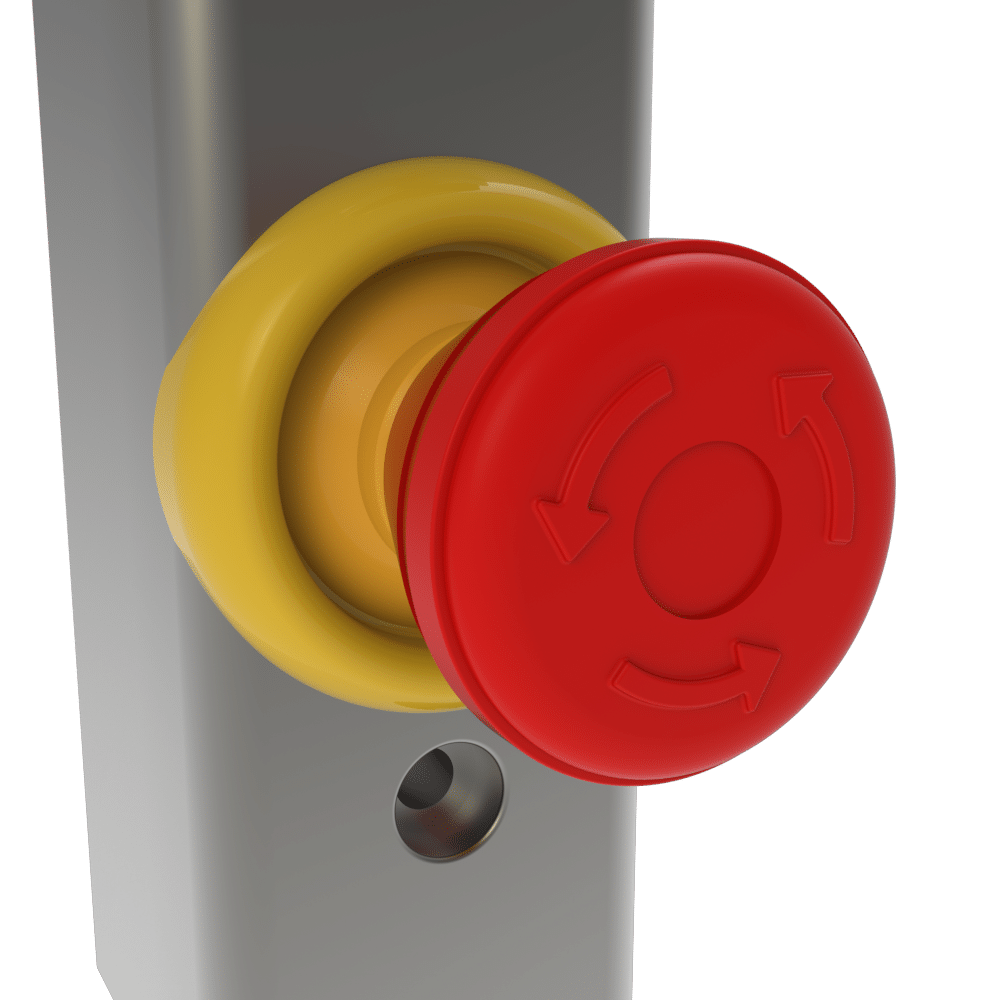

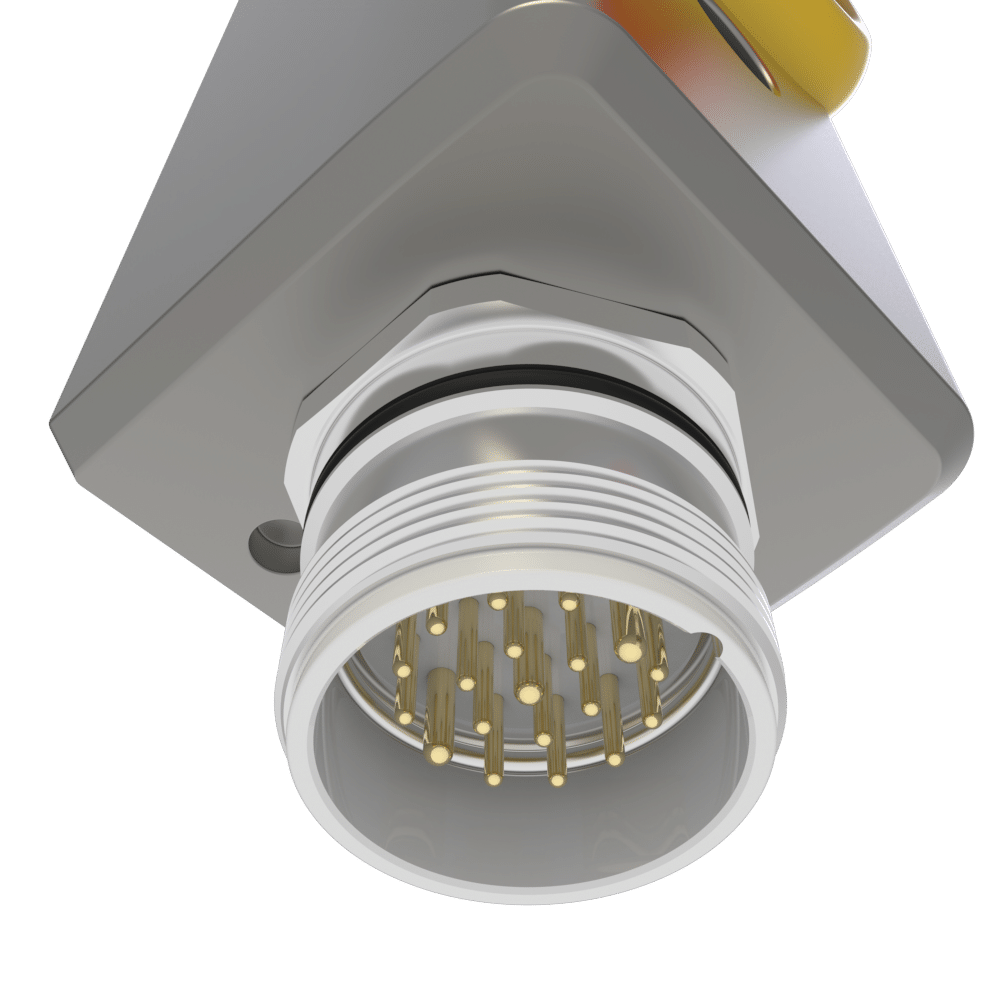

This control station includes two green pushbuttons, a red pushbutton, and an emergency stop. Includes a 19-pin M23 quick disconnect.
Product Description
This control station includes two green pushbuttons, a red pushbutton, and an emergency stop. Includes a 19-pin M23 quick disconnect.
The THCP3PRP3EIQ8 model from Fortress Safety is a prominent control station designed for industrial safety applications. This product is equipped with two green pushbuttons, one red pushbutton, and an emergency stop button, offering a comprehensive safety solution. With its 19-pin M23 quick disconnect feature, easy installation and connectivity are ensured. Operating at 24V, this control station boasts an IP65 protection class, making it resistant to dust and water. Additionally, it can function safely within a temperature range of -25°C to 40°C (-13°F to 104°F).
The THCP3PRP3EIQ8 is ideal for automation systems, production lines, and safety applications. Its robust construction ensures durability for long-term use. Designed in compliance with Fortress Safety's stringent safety standards, this product enhances workplace safety and allows users to work comfortably. Do not miss out on this control station, which provides all the necessary safety measures for industrial applications.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Control Station |
| LED Life | 100,000 hours on time |
| Environment | Indoor |
| Part Number | THCP3PRP3EIQ8 |
| Operating Life | 1,000,000 momentary version 500,000 latching version |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 5N to 10N |
| Retention Force | 2500N |
| Contact Material | Gold |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Switching Principle | Positive Break |
| Switches Conformance | IEC 60947-5-1 |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Switching Contact Element | 1 output |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THCP3PRP3EIQ8 |
| Main Category | Fortress Safety |
