Product Summary
This control station includes a white pushbutton, a red pushbutton, a 2-position selector switch (1 N/O & 1 N/C), a green illuminated independent pushbutton, and an emergency stop. Includes a 19-pin M...
Product Description

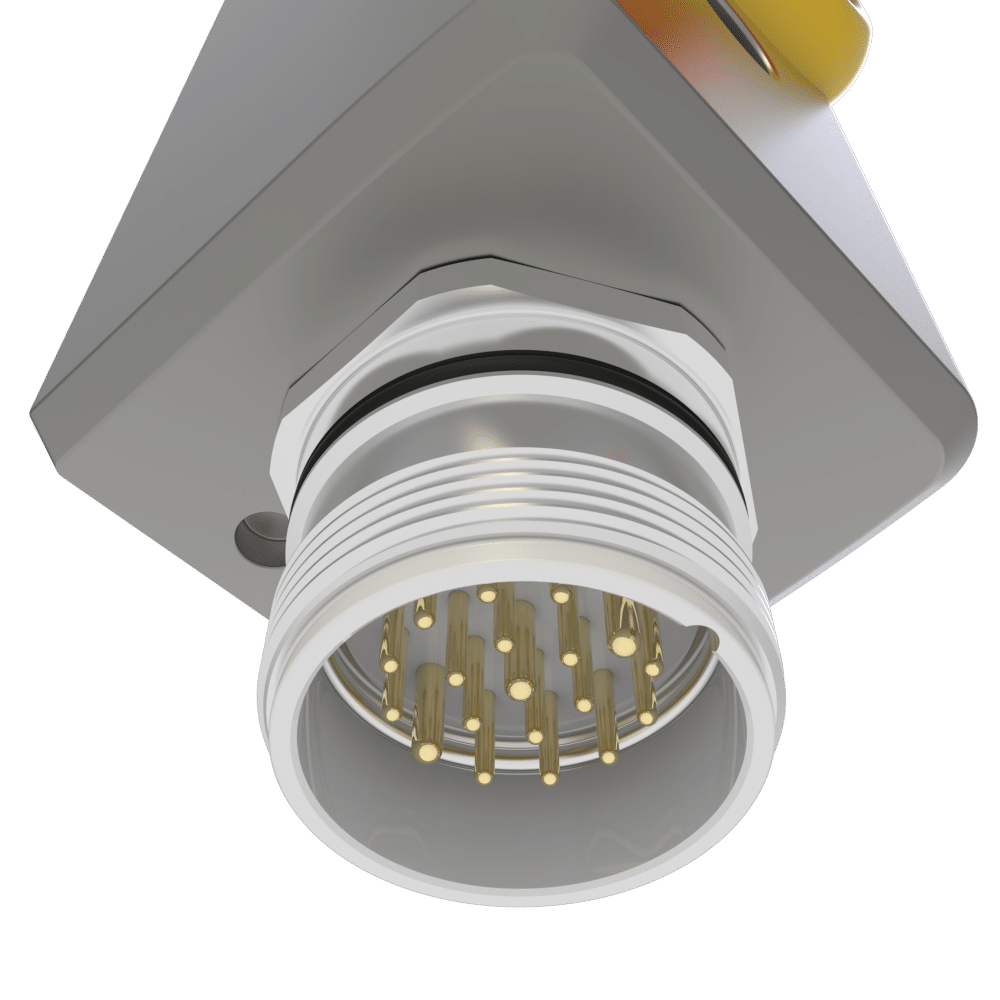

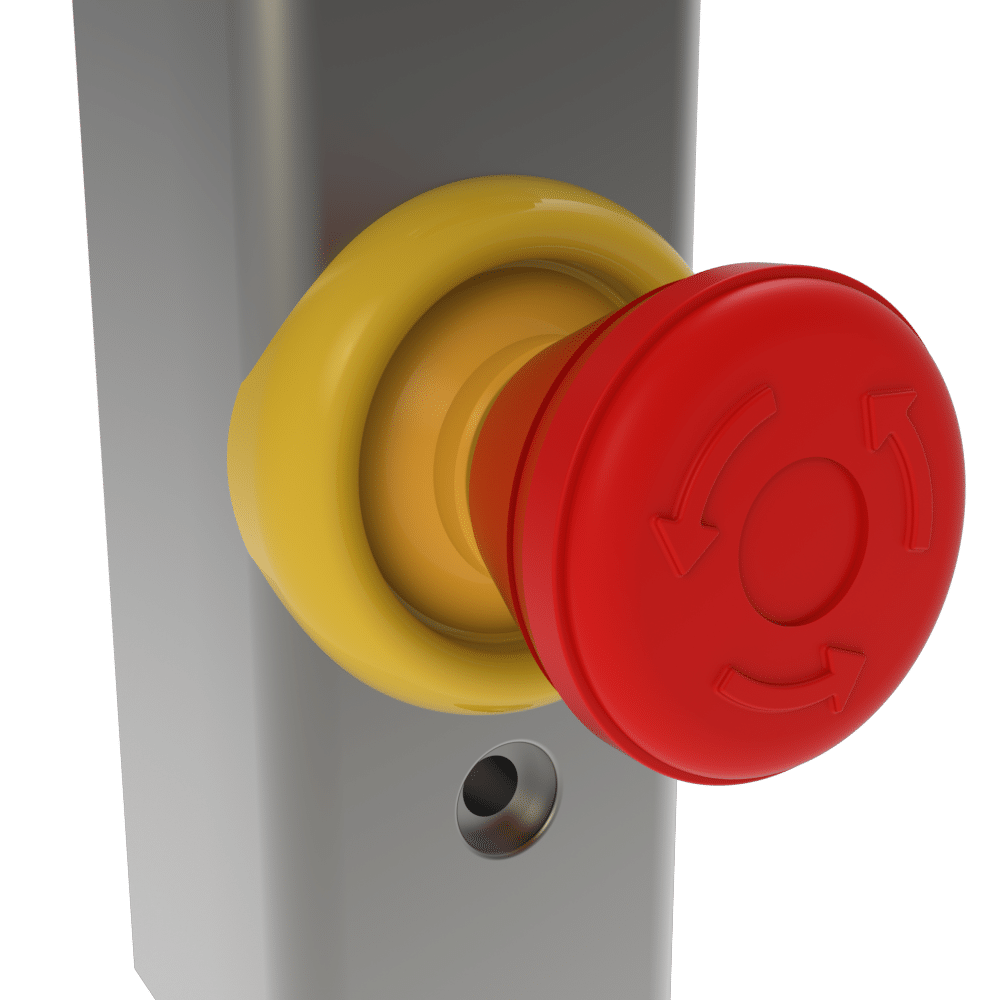

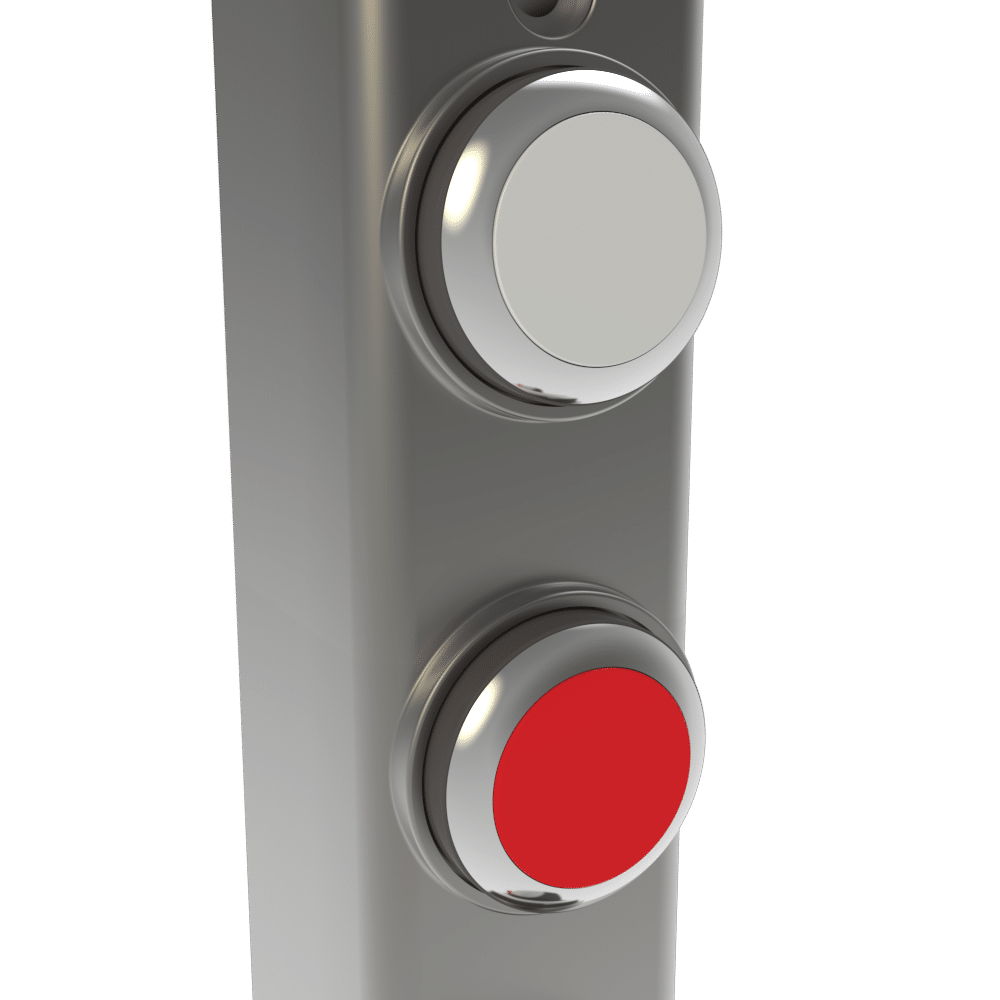

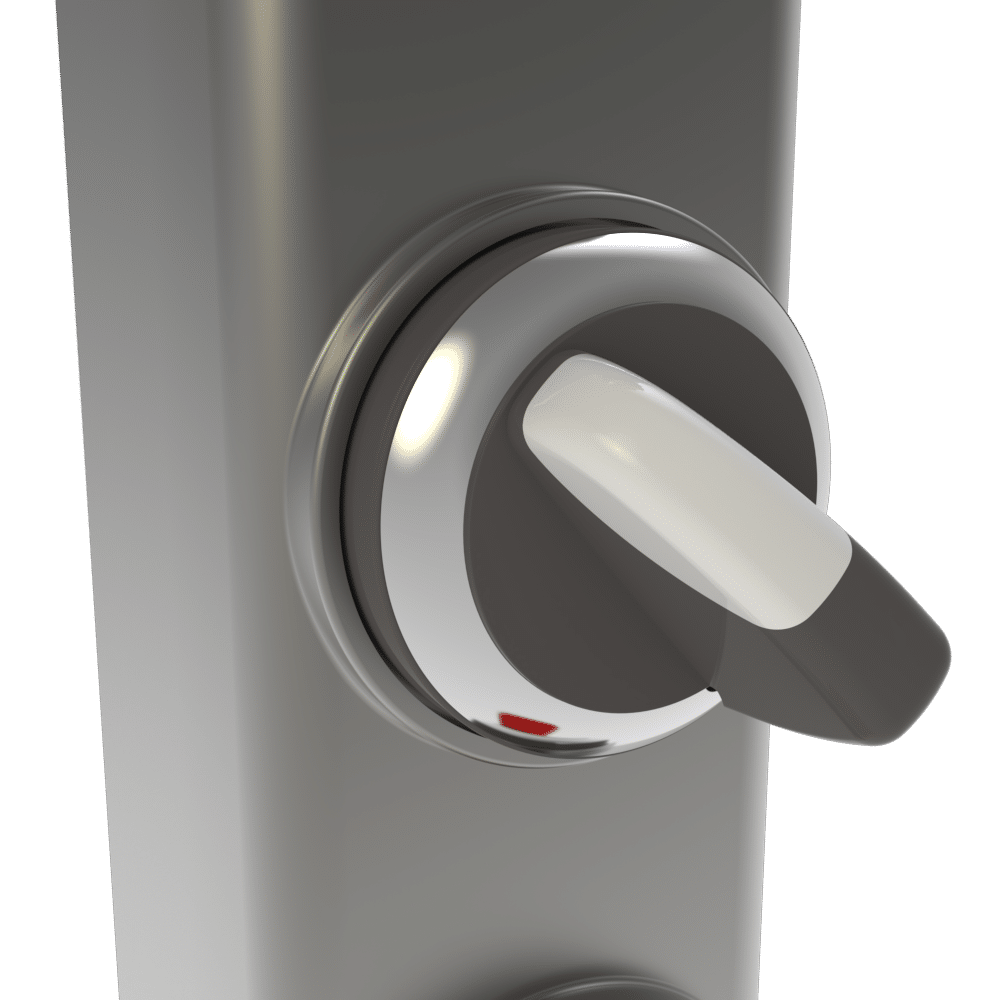

This control station includes a white pushbutton, a red pushbutton, a 2-position selector switch (1 N/O & 1 N/C), a green illuminated independent pushbutton, and an emergency stop. Includes a 19-pin M23 quick disconnect.
The Fortress Safety THCP7P12VU3EIQ8 model is a high-performance control station designed for industrial safety applications. This product features a white pushbutton, a red pushbutton, a 2-position selector switch (1 N/O & 1 N/C), a green illuminated independent pushbutton, and an emergency stop button. With its 19-pin M23 quick disconnect feature, installation and connections are made effortless.
Operating at 24V, this control station provides safe usage in challenging industrial environments thanks to its IP65 protection class. It maintains functionality within a temperature range of -25°C to 40°C and is made from durable painted die-cast aluminum material. This high-quality product from Fortress Safety is designed in accordance with safety standards, making it ideal for enhancing safety in industrial automation systems. Elevate the safety of your workplace with the THCP7P12VU3EIQ8 model.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Control Station |
| LED Life | 100,000 hours on time |
| Environment | Indoor |
| Part Number | THCP7P12VU3EIQ8 |
| Operating Life | 1,000,000 momentary version 500,000 latching version |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 5N to 10N |
| Retention Force | 2500N |
| Contact Material | Gold |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Switching Principle | Positive Break |
| Switches Conformance | IEC 60947-5-1 |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Switching Contact Element | 1 output |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THCP7P12VU3EIQ8 |
| Main Category | Fortress Safety |
