Fortress Safety
Fortress Safety
THCSNSSP3Q7
In Stock (100 items)
44 views
€0,00
VAT Included
Product Summary

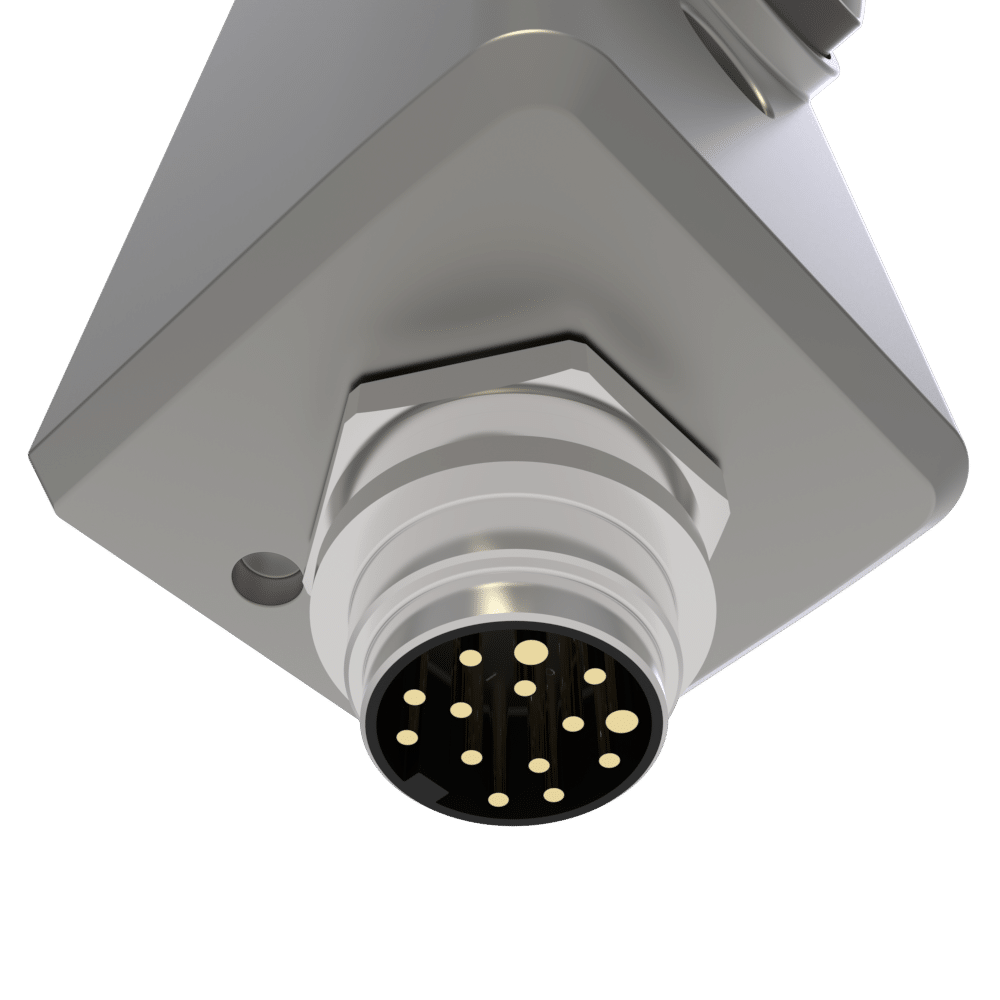

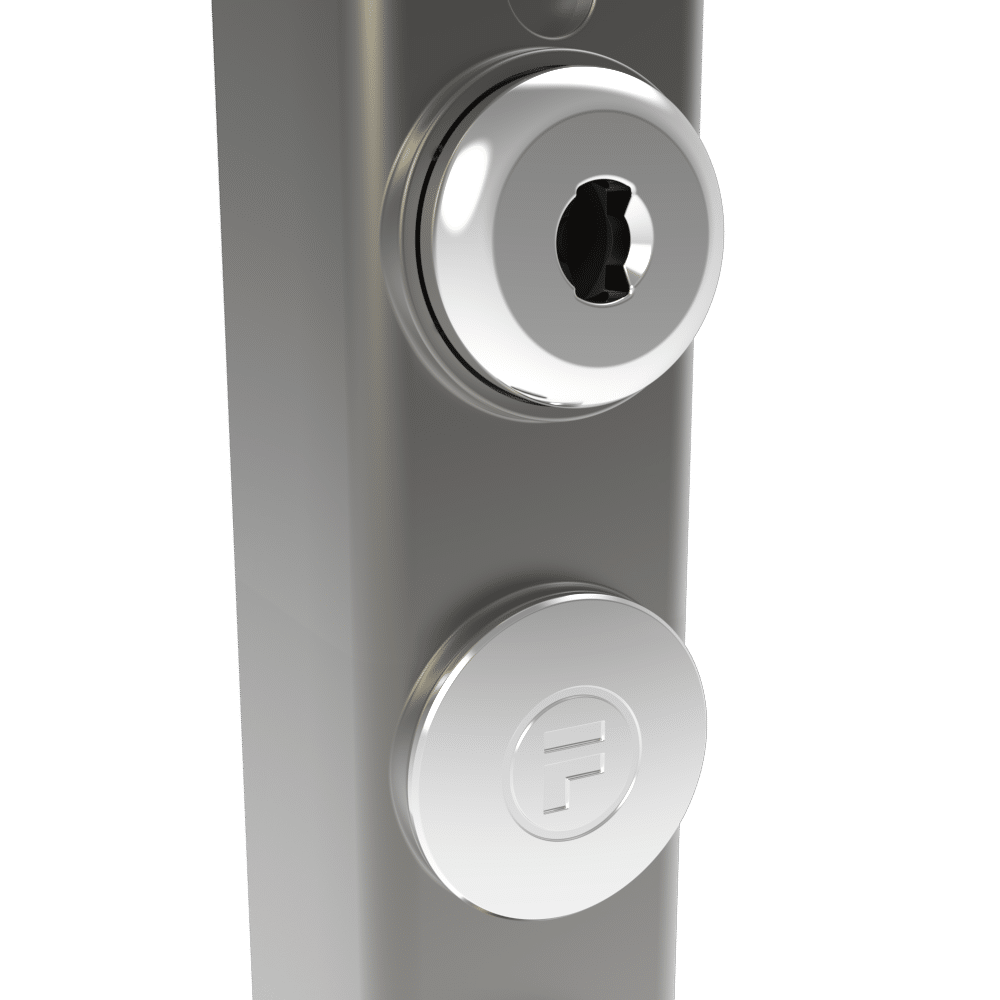

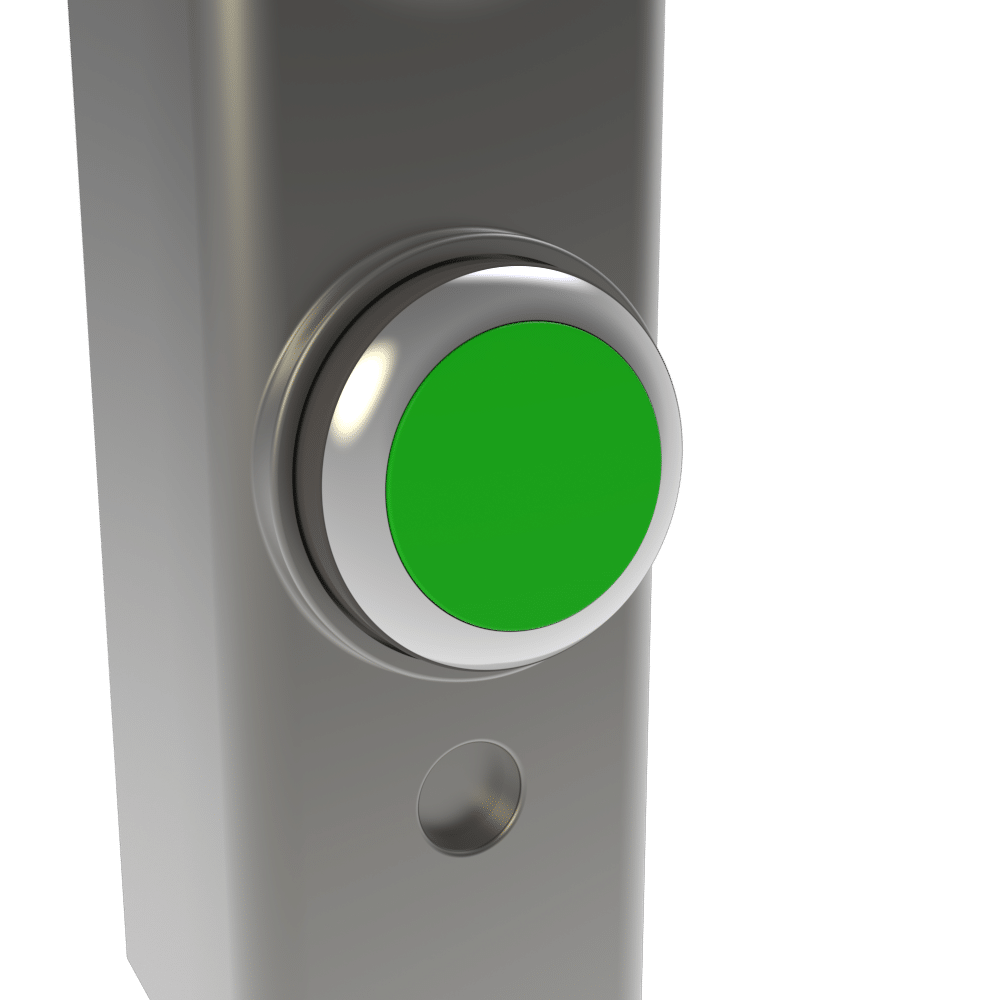

This control station includes a standard personnel (safety) lock (key not included), safety contacts (no N/O monitor contact), and a green pushbutton. Includes a 14-pin quick disconnect (7/8″).
Product Description
This control station includes a standard personnel (safety) lock (key not included), safety contacts (no N/O monitor contact), and a green pushbutton. Includes a 14-pin quick disconnect (7/8″).
The Fortress Safety THCSNSSP3Q7 model is designed to meet high standards in industrial safety. Operating at 24V, this control station includes a safety lock and a green pushbutton, allowing users to safely control machinery. With an IP65 protection rating, it is resistant to dust and water, making it an ideal choice for harsh working conditions.
Furthermore, its temperature range of -25°C to 40°C enhances its usability across various environments. The THCSNSSP3Q7 model features a 14-pin quick disconnect for easy installation and maintenance. It is an excellent solution for ensuring safety standards in industrial facilities. The Fortress Safety control station will enhance the security of your workplace with its durability and reliability. This product is an ideal choice to strengthen your workplace safety practices.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Personnel Key, Control Station |
| LED Life | 100,000 hours on time |
| Environment | Indoor |
| Part Number | THCSNSSP3Q7 |
| Operating Life | 1,000,000 momentary version 500,000 latching version |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 0.5Nm |
| Retention Force | 7 – 9N (TSS/TSM) 38 – 40N (TSP) |
| Contact Material | Silver |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Switching Principle | Positive Break |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Switching Contact Element | 1 output |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THCSNSSP3Q7 |
| Main Category | Fortress Safety |
