Product Summary
This interlock features a handle actuator, 60mm escape release, Power-to-Unlock safety contacts on the head element, a blue pushbutton, an emergency stop, a white pushbutton, and a 24 terminals connec...
Product Description
This interlock features a handle actuator, 60mm escape release, Power-to-Unlock safety contacts on the head element, a blue pushbutton, an emergency stop, a white pushbutton, and a 24 terminals connector.
The THERXSMEUSREMP7W4 model from Fortress Safety offers an exceptional solution in the field of industrial security. Operating at 24V, this lock is made from painted die-cast aluminum, known for its high durability. With an IP65 protection class, it provides effective resistance against dust and water, ensuring reliable performance even in harsh working conditions.

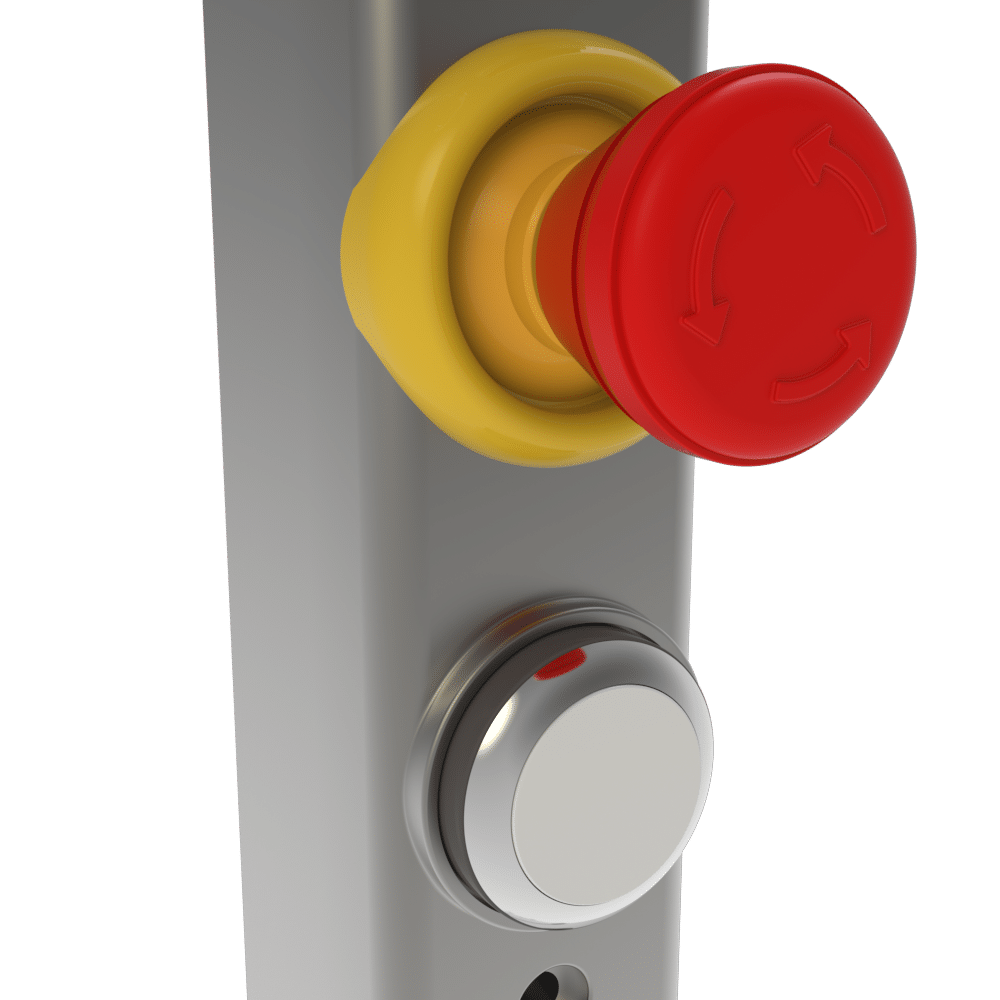

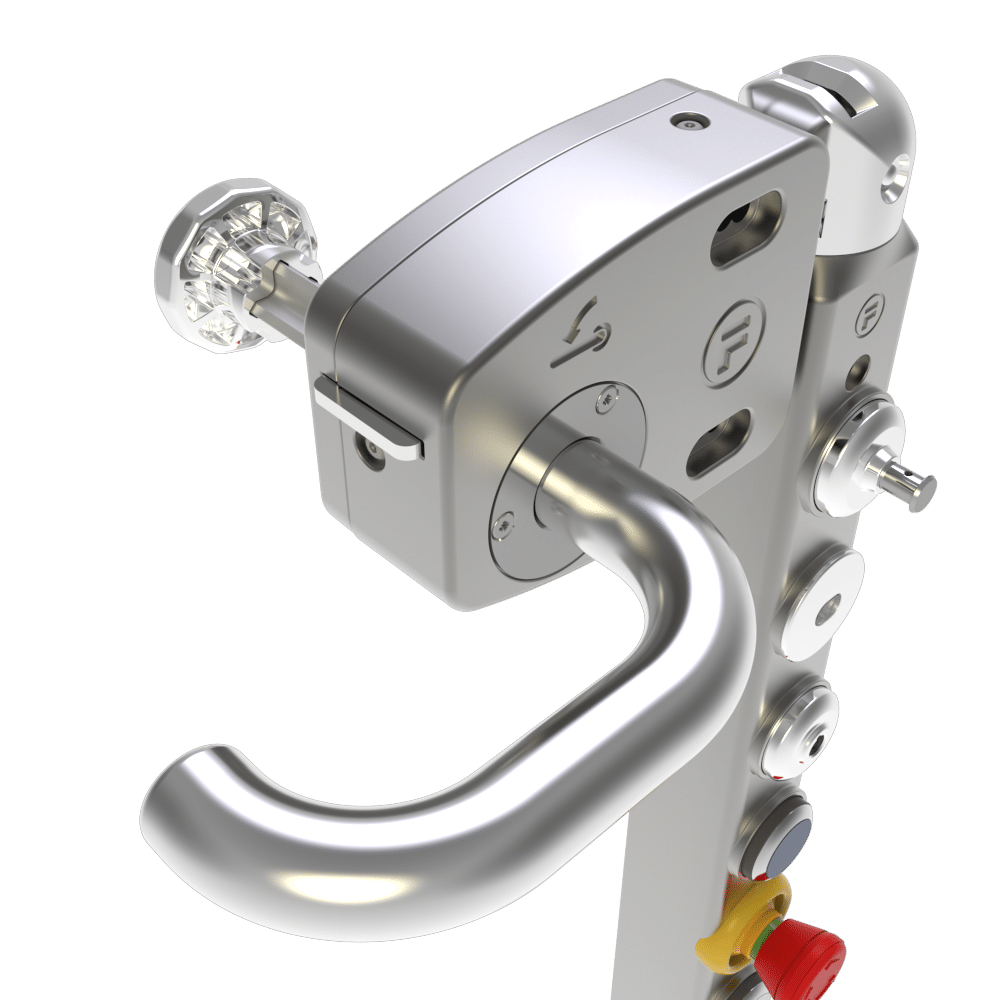

The lock is equipped with a lever actuator integrated with a 60 mm escape release mechanism and Power-to-Unlock safety contacts. Additionally, it enhances user safety through an emergency stop button and a blue button. The 24 terminal connection points facilitate system integration, offering flexibility. Operating within a temperature range of -25°C to 40°C, this product ensures reliability across a wide spectrum of conditions. Fortress Safety's THERXSMEUSREMP7W4 model is a state-of-the-art product designed to enhance safety in industrial facilities.
Technical Specifications
Colour | Dark Grey |
Voltage | 24V DC |
Features | Escape Release, Power-to-Unlock |
LED Life | 100,000 hours on time |
Back Plate | Stainless Steel will contain factory blemishes |
Environment | Indoor |
Part Number | THERXSMEUSREMP7W4 |
Operating Life | 1,000,000 momentary version 500,000 latching version |
Electrical Life | 1,000,000 Operations |
Mechanical Life | 1,000,000 Operations |
Operating Force | 5N to 10N |
Retention Force | 2500N(locked) |
Solenoid Rating | 350mA max @ 24VDC |
Contact Material | Gold |
Housing Materials | Painted die cast aluminium |
Switching Current | 1mA MIN / 100mA MAX |
Switching Voltage | 24V |
Ingress Protection | IP65 |
Isolating Distance | 2mm per switch element |
Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
Switching Principle | Positive Break |
Switches Conformance | IEC 60947-5-1 |
Min hinged door radius | 150mm (using TAH actuator handle) |
Switching Contact Element | 1 output |
Max current on power supply | 0.75A |
Brand | Fortress Safety |
Model | THERXSMEUSREMP7W4 |
Main Category | Fortress Safety |
