Product Summary
This interlock features a handle actuator, 60mm escape release, two personnel (safety) locks (no keys included), Power-to-Unlock solenoid safety contacts in series, and a white pushbutton. Includes a...
Product Description

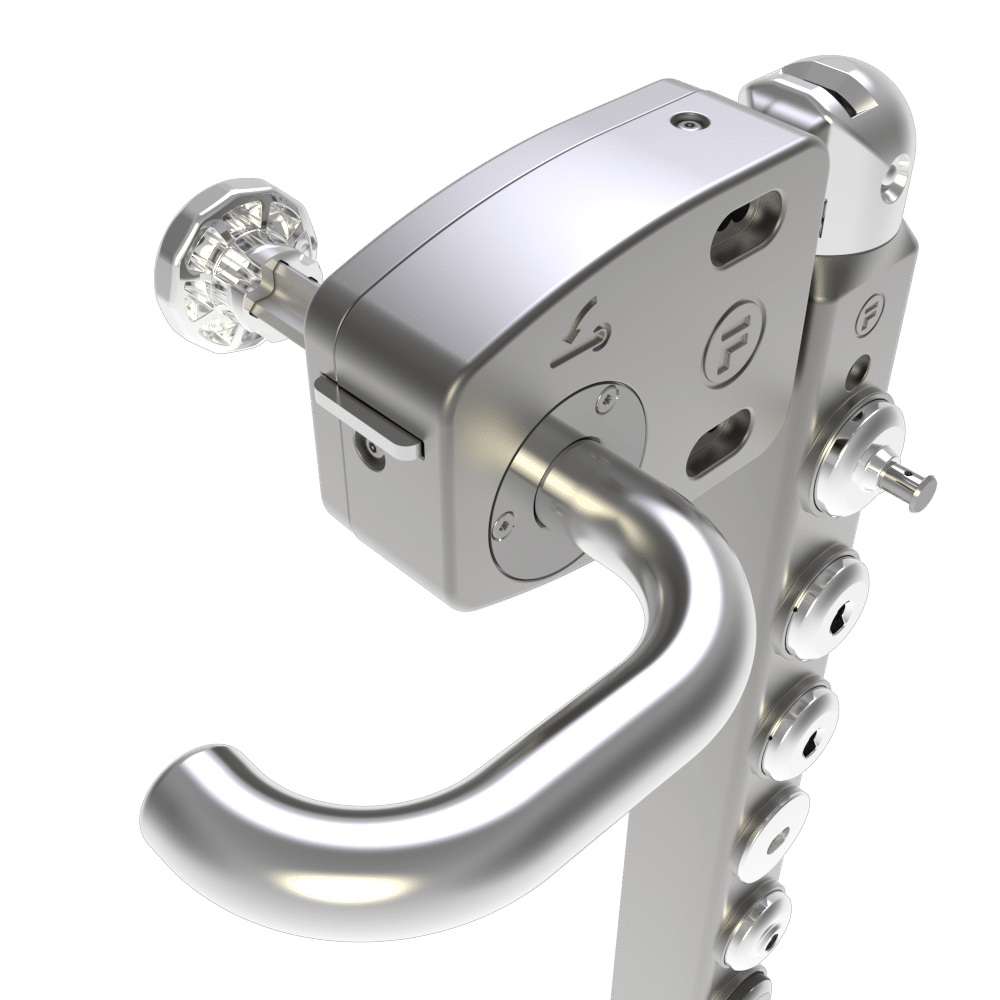

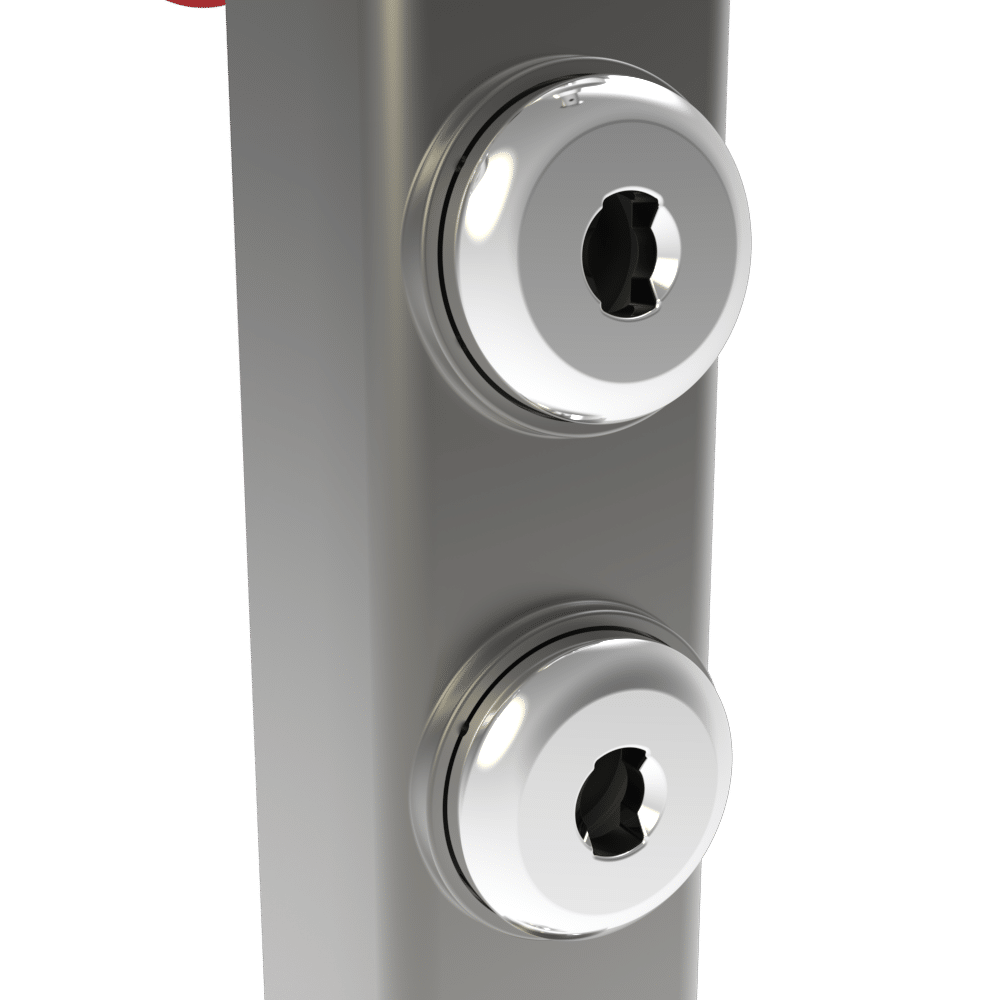

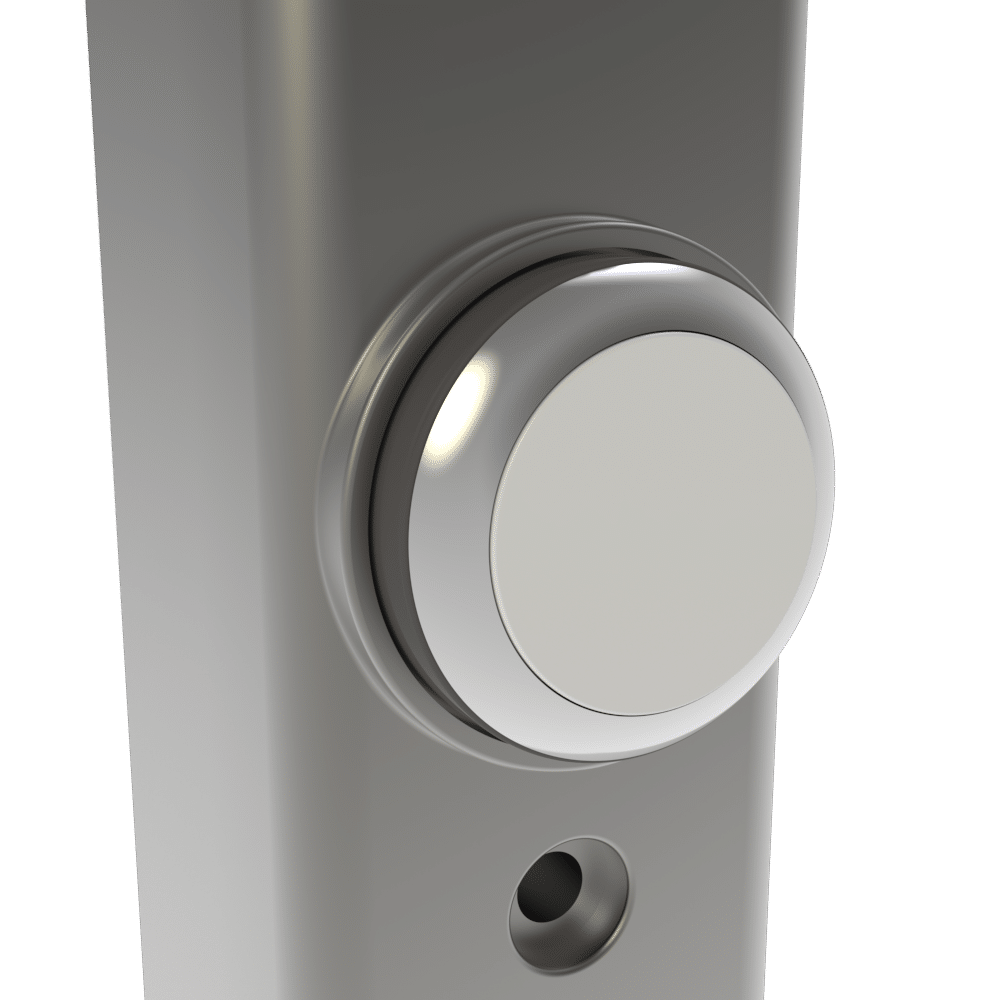

This interlock features a handle actuator, 60mm escape release, two personnel (safety) locks (no keys included), Power-to-Unlock solenoid safety contacts in series, and a white pushbutton. Includes a 12-pin M23 quick disconnect.
The Fortress Safety THERXSNSNSMDUP7Q5 model is an excellent choice for those seeking industrial safety solutions. Made of high-quality painted die-cast aluminum, this lock boasts an IP65 protection class, ensuring durability even in harsh environmental conditions. Operating at 24V, this system not only meets safety standards but also prioritizes user security.
The lock features a lever actuator, a 60mm escape release mechanism, and two personnel locks, designed to enhance safety during operations. Additionally, the series-connected Power-to-Unlock solenoid safety contacts and the white button simplify usability, while the 12-pin M23 quick connector accelerates the installation process.
With a temperature range of -25°C to 40°C, this product is ideal for various industrial applications. Fortress Safety's security lock provides all the essential features you need to enhance safety and efficiency in your workplace.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Escape Release, Personnel Key, Power-to-Unlock |
| LED Life | 100,000 hours on time |
| Back Plate | Stainless Steel will contain factory blemishes |
| Environment | Indoor |
| Part Number | THERXSNSNSMDUP7Q5 |
| Operating Life | 1,000,000 momentary version 500,000 latching version |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 0.5Nm |
| Retention Force | 2500N(locked) |
| Solenoid Rating | 350mA max @ 24VDC |
| Contact Material | Silver |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Switching Contact Element | 1 output |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THERXSNSNSMDUP7Q5 |
| Main Category | Fortress Safety |
