Fortress Safety
Fortress Safety
THFRZSNSMDLQ7
In Stock (100 items)
41 views
€0,00
VAT Included
Product Summary
This interlock features a fixed actuator, variable length escape release, standard personnel (safety) lock (key not included), and Power-to-Lock solenoid safety contacts in series. Includes a 14-pin q...
Product Description

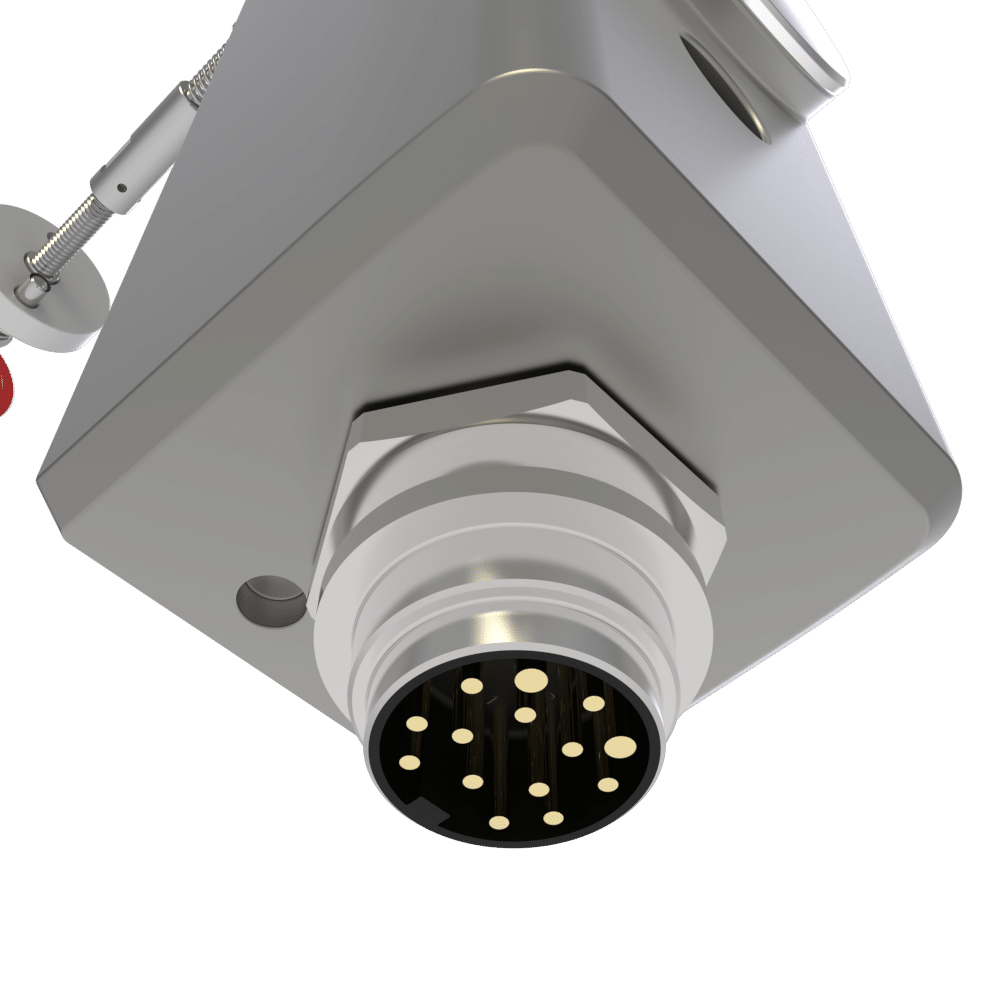

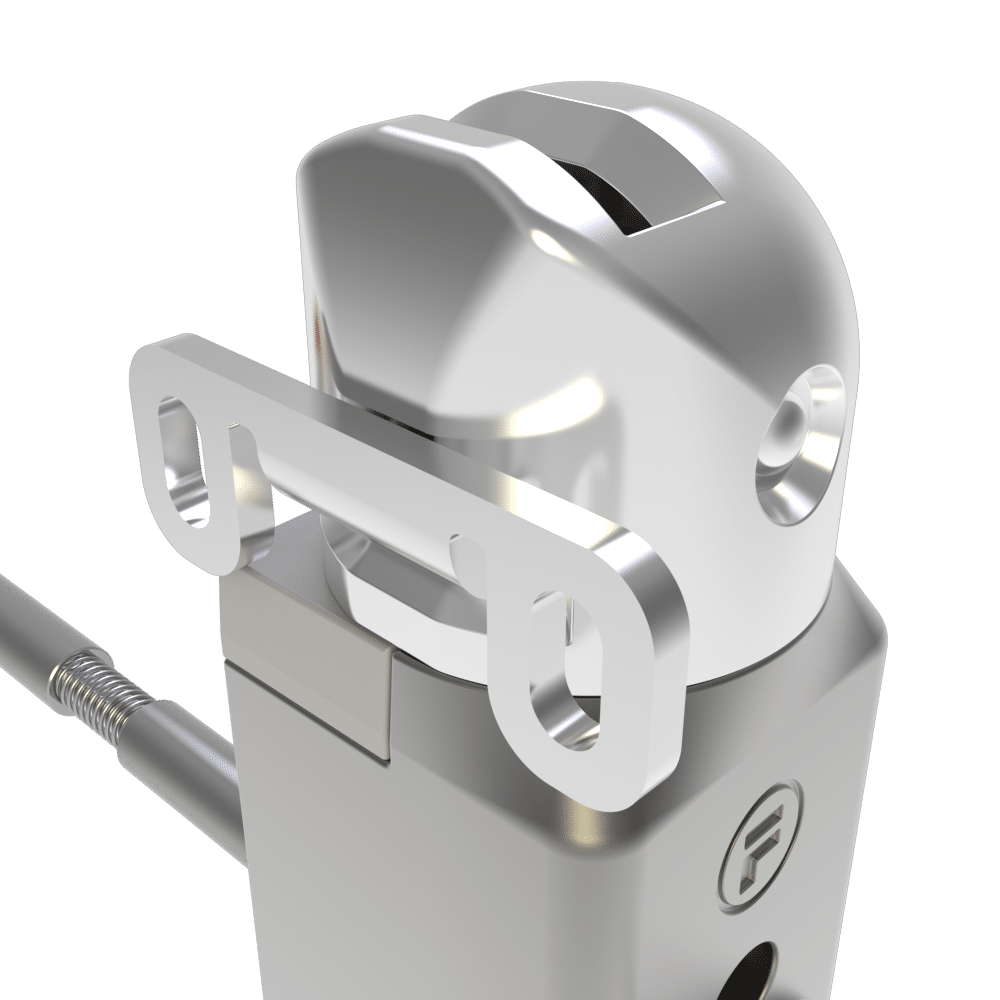

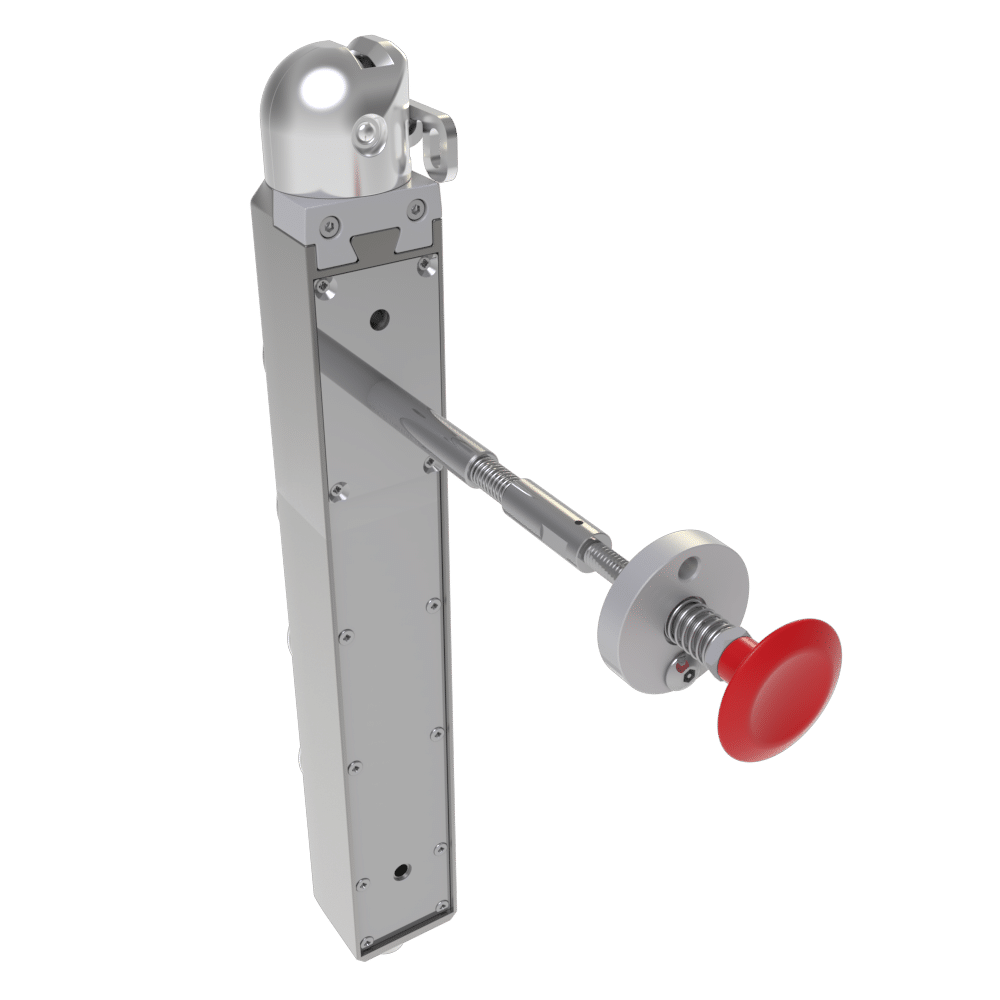

This interlock features a fixed actuator, variable length escape release, standard personnel (safety) lock (key not included), and Power-to-Lock solenoid safety contacts in series. Includes a 14-pin quick disconnect (7/8″).

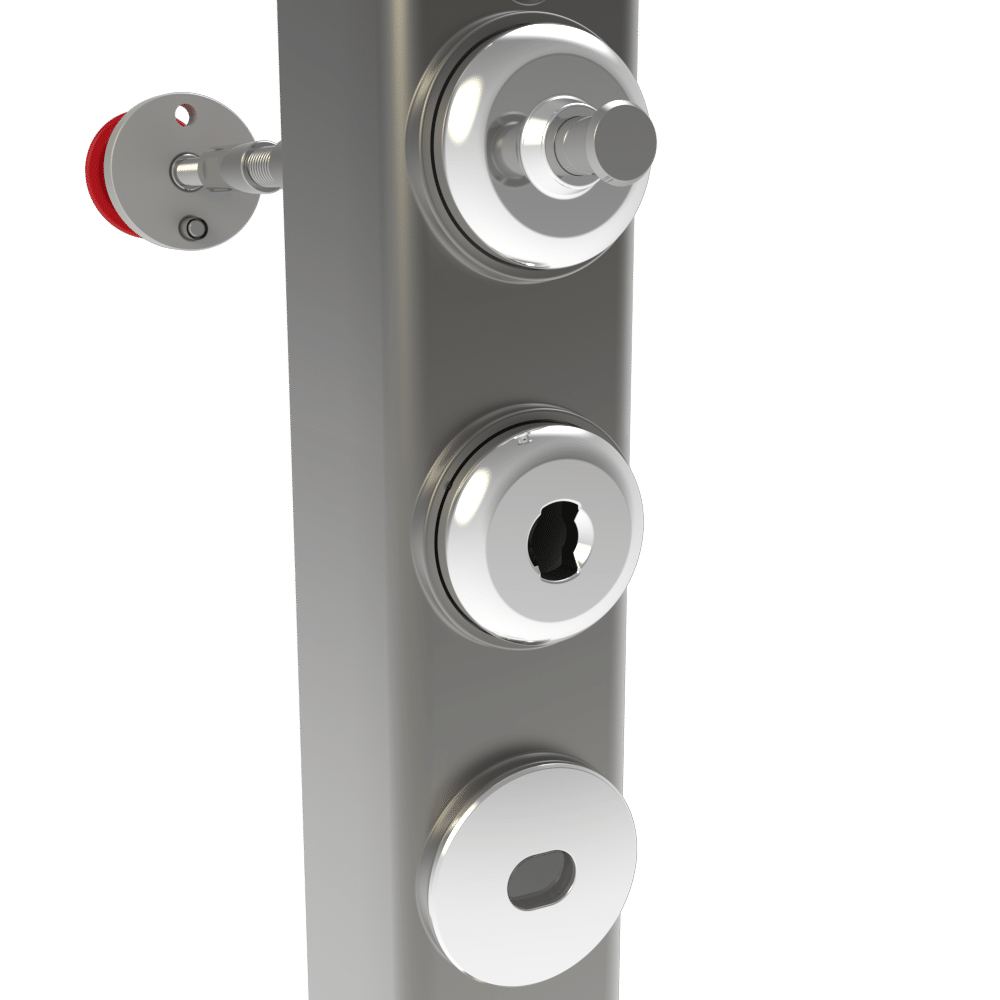

The THFRZSNSMDLQ7 model from Fortress Safety is an ideal choice for those seeking industrial safety solutions. This interlock system features a fixed actuator, variable length escape release mechanism, and a standard personnel lock (key not included), providing enhanced security through its Power-to-Lock solenoid safety contacts. With a 14-pin quick disconnect (7/8″), installation is made easy.
Designed to operate in challenging conditions, this product works effectively within a temperature range of -25°C to 40°C and is rated at IP65 for protection against dust and water. The THFRZSNSMDLQ7 operates at 24V DC and is constructed from durable painted die-cast aluminum. It is suitable for use in industrial automation systems, machine safety applications, and hazardous areas. Fortress Safety ensures full compliance with safety standards, elevating the safety of your workplace to the highest level.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Escape Release, Personnel Key, Power-to-Lock |
| Back Plate | Stainless Steel will contain factory blemishes |
| Environment | Indoor |
| Part Number | THFRZSNSMDLQ7 |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 0.5Nm |
| Retention Force | 2500N(locked) |
| Solenoid Rating | 350mA max @ 24VDC |
| Contact Material | Silver |
| Housing Materials | Painted die cast aluminium |
| Ingress Protection | IP65 |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THFRZSNSMDLQ7 |
| Main Category | Fortress Safety |
