THFSMDUQ5
In Stock (100 items)
209 views
€0,00
VAT Included
Product Summary

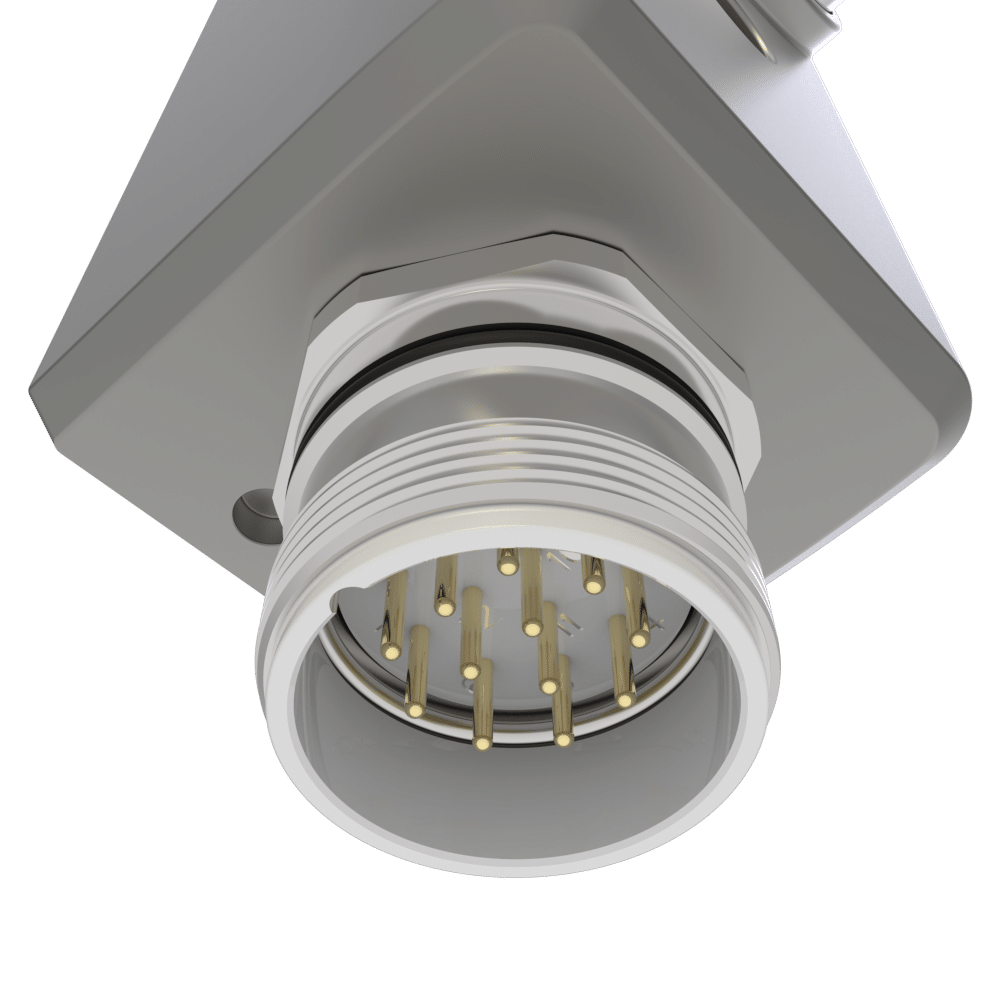

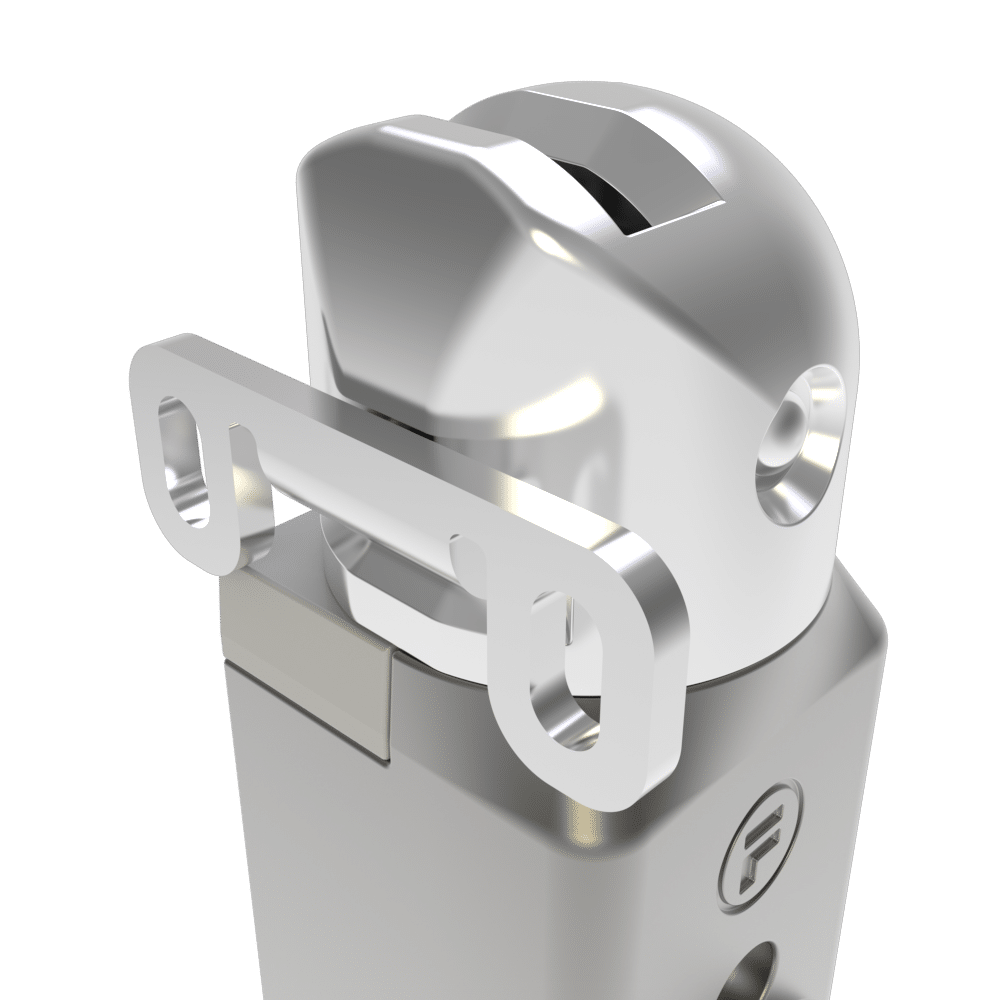

This interlock features a fixed actuator with Power-to-Unlock solenoid safety contacts in series. Includes a 12-pin M23 quick disconnect.
Product Description
This interlock features a fixed actuator with Power-to-Unlock solenoid safety contacts in series. Includes a 12-pin M23 quick disconnect.
The Fortress Safety THFSMDUQ5 model is a high-quality interlock system designed to provide maximum protection in industrial safety applications. Operating at 24V DC, this product is equipped with Power-to-Unlock solenoid safety contacts, ensuring a safe working environment for operators and making the machine shutdown process secure.
Constructed from durable painted die-cast aluminum, the THFSMDUQ5 offers excellent protection against dust and water with its IP65 rating. It operates flawlessly in temperature ranges from -25°C to 40°C, delivering long-lasting performance in demanding industrial environments. The 12-pin M23 quick disconnect feature simplifies installation and maintenance processes. Fortress Safety products are an excellent choice to enhance your industrial safety standards.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Power-to-Unlock |
| Environment | Indoor |
| Part Number | THFSMDUQ5 |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 5N to 10N |
| Retention Force | 2500N(locked) |
| Solenoid Rating | 350mA max @ 24VDC |
| Contact Material | Silver |
| Housing Materials | Painted die cast aluminium |
| Ingress Protection | IP65 |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THFSMDUQ5 |
| Main Category | Fortress Safety |
