Product Summary

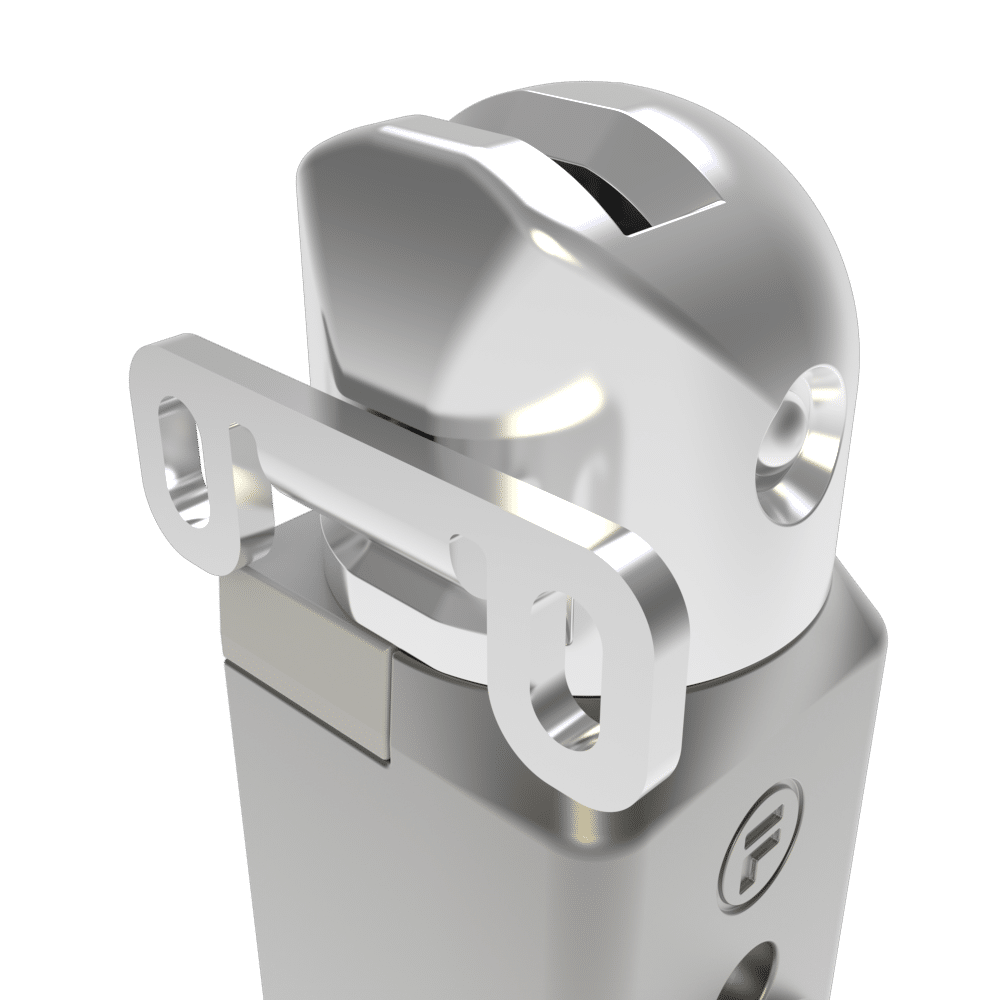

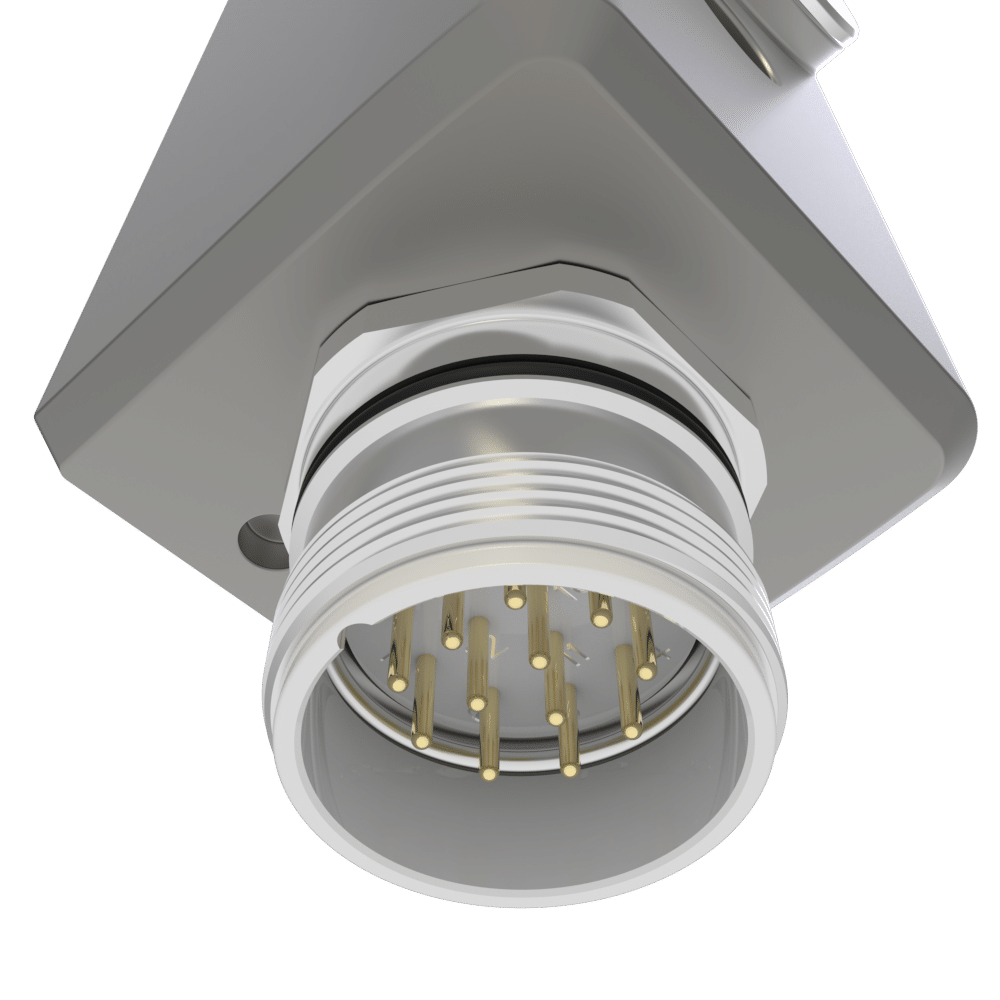

This interlock features a fixed actuator with Power-to-Lock safety contacts on the head element. Includes a 12-pin M23 quick disconnect.
Product Description
This interlock features a fixed actuator with Power-to-Lock safety contacts on the head element. Includes a 12-pin M23 quick disconnect.
The Fortress Safety THFSMELQ5 model is an excellent choice for industrial safety applications. This interlock features a fixed actuator with Power-to-Lock safety contacts on the head element, ensuring enhanced security in your operations. Operating at 24V DC, this product delivers robust performance, effectively increasing your safety measures. The 12-pin M23 quick disconnect feature allows for swift and easy installation and maintenance.
Crafted from durable painted die-cast aluminium, the THFSMELQ5 boasts an IP65 protection class, making it highly resistant to dust and water. Its wide temperature range of -25°C to 40°C ensures compatibility in various industrial environments. Compliant with safety standards, this product maximizes workplace safety while also enhancing operational efficiency. The THFSMELQ5 model from Fortress Safety is an ideal investment for any safety solution in your business.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Power-to-Lock |
| Environment | Indoor |
| Part Number | THFSMELQ5 |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 5N to 10N |
| Retention Force | 2500N(locked) |
| Solenoid Rating | 350mA max @ 24VDC |
| Contact Material | Silver |
| Housing Materials | Painted die cast aluminium |
| Ingress Protection | IP65 |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THFSMELQ5 |
| Main Category | Fortress Safety |
