Fortress Safety
Fortress Safety
THHGNQBBF
In Stock (100 items)
48 views
€0,00
VAT Included
Product Summary

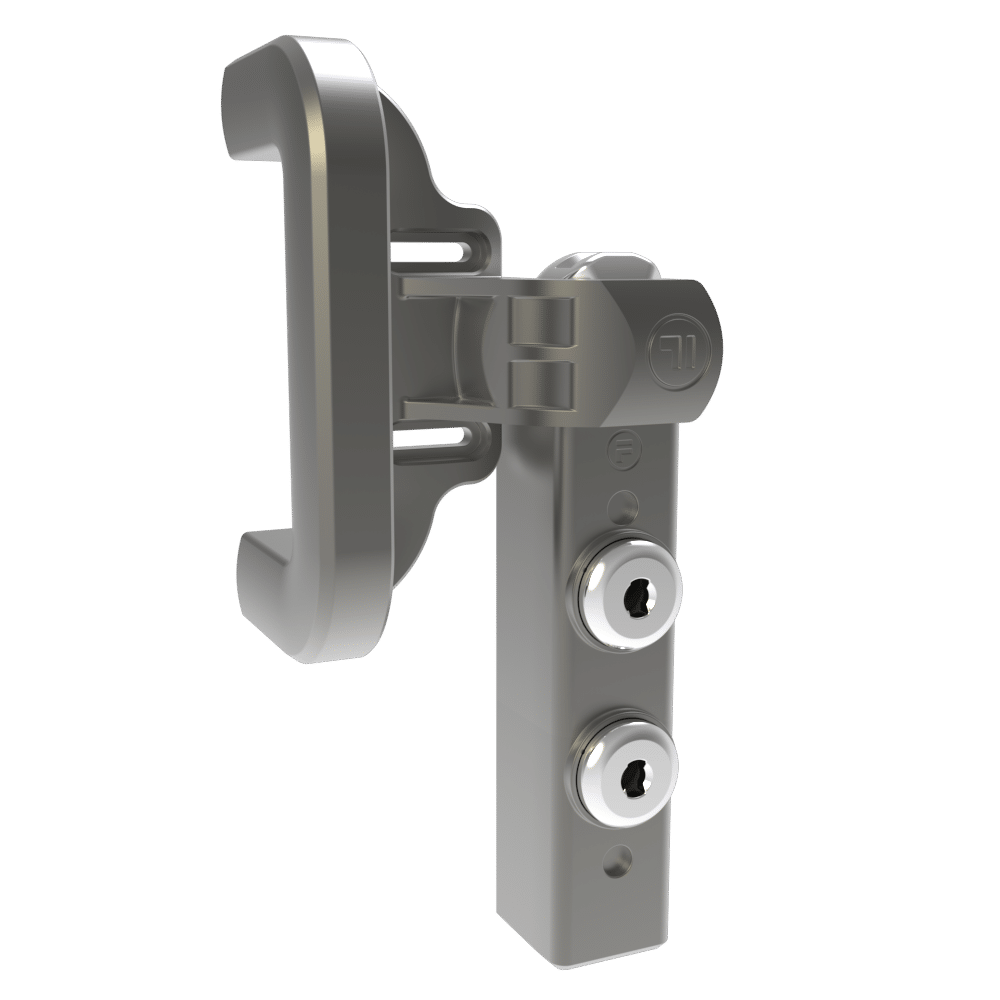

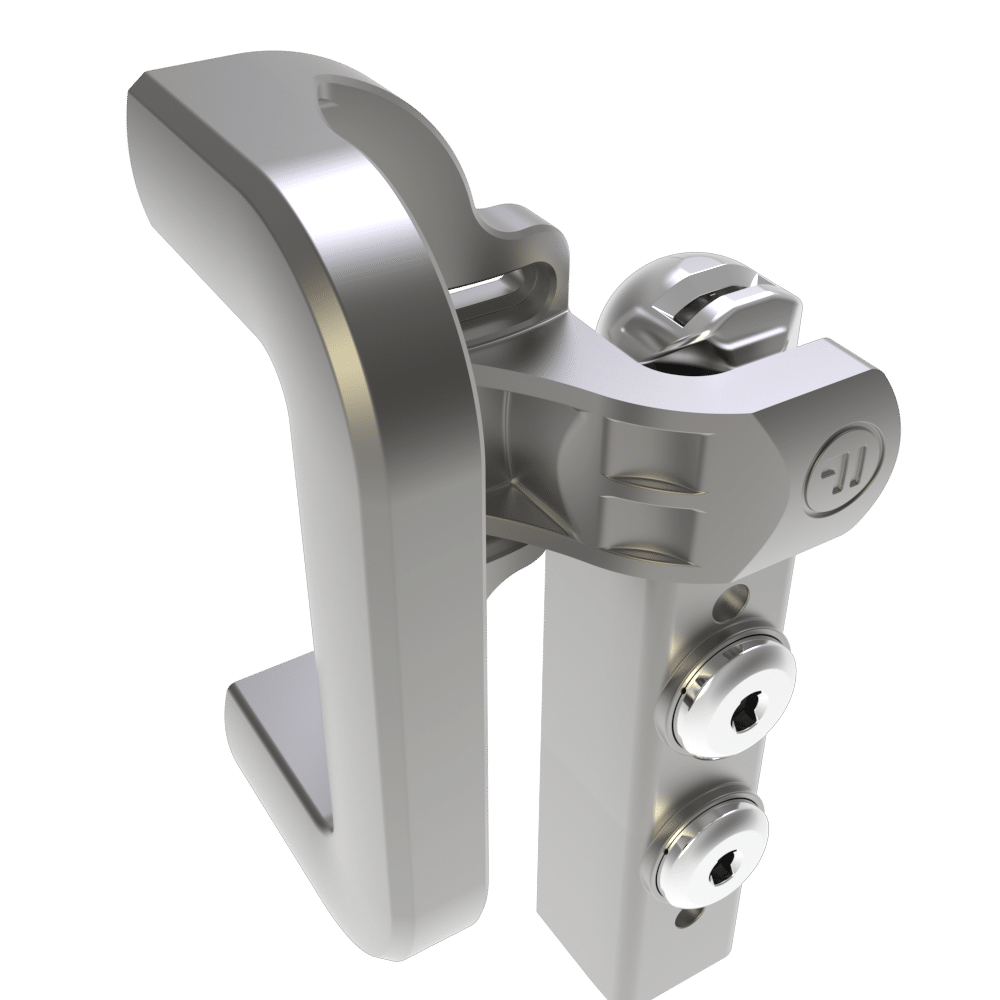

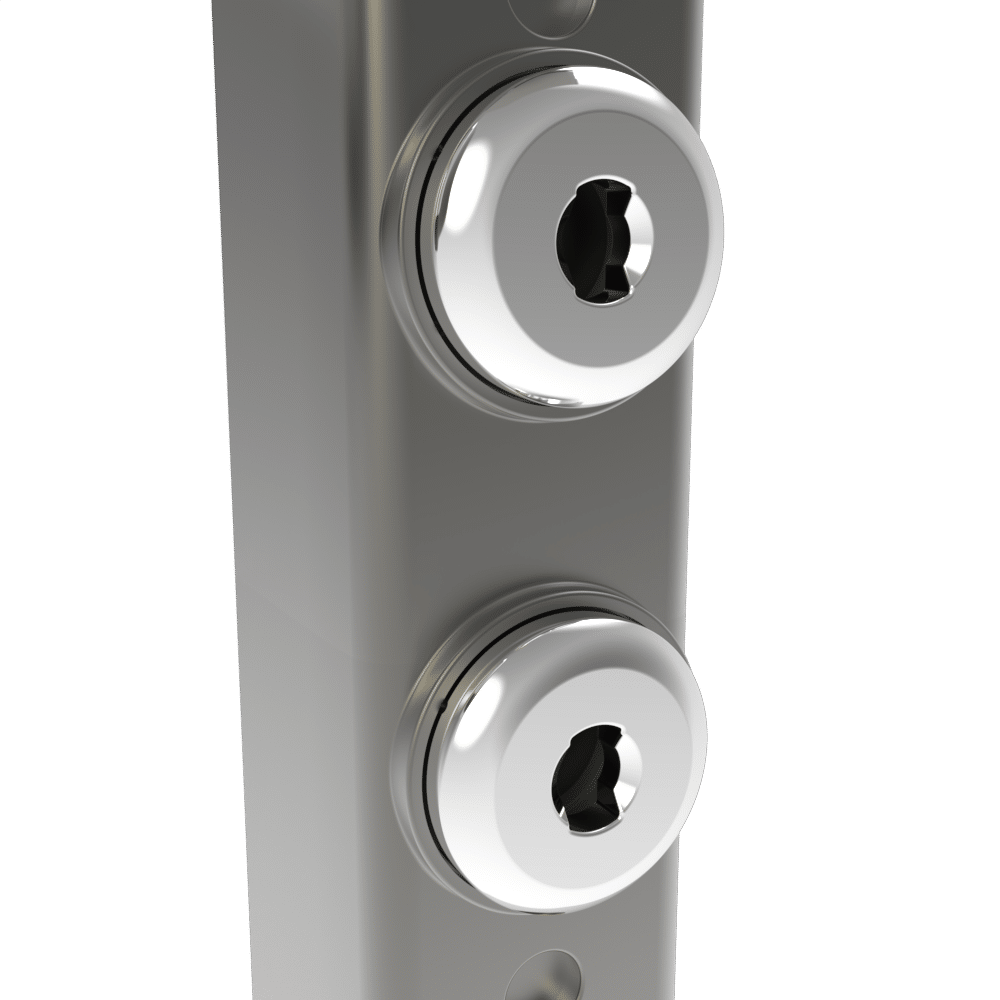

This interlock features a hinged actuator, master personnel (safety) lock and master access lock (keys not included), and a blank foot (no QD – mechanical unit).
Product Description
This interlock features a hinged actuator, master personnel (safety) lock and master access lock (keys not included), and a blank foot (no QD – mechanical unit).
The THHGNQBBF model from Fortress Safety is an effective interlock system that provides superior protection in industrial safety applications. This product is equipped with a hinged actuator, master personnel (safety) lock, and a master access lock designed to enhance user safety. With an IP65 protection class, this interlock is capable of withstanding harsh industrial conditions. It operates efficiently in temperature ranges from -25°C to 40°C, while the painted die-cast aluminum material ensures long-lasting durability. The THHGNQBBF model complies fully with safety standards and plays a critical role in industrial automation systems. Ideal for various sectors, it enhances workplace safety and fosters a secure working environment. Elevate your safety measures with this innovative product from Fortress Safety!
Technical Specifications
| Colour | Dark Grey |
| Features | Mechanical Only, Personnel Key |
| Environment | Indoor |
| Part Number | THHGNQBBF |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 0.5Nm |
| Retention Force | 2500N |
| Housing Materials | Painted die cast aluminium |
| Ingress Protection | IP65 |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Brand | Fortress Safety |
| Model | THHGNQBBF |
| Main Category | Fortress Safety |
