Product Summary
This interlock features a hinged actuator, 60mm escape release, master personnel (safety) lock (key not included), Power-to-Unlock solenoid safety contacts in series, an extension blank element, white...
Product Description

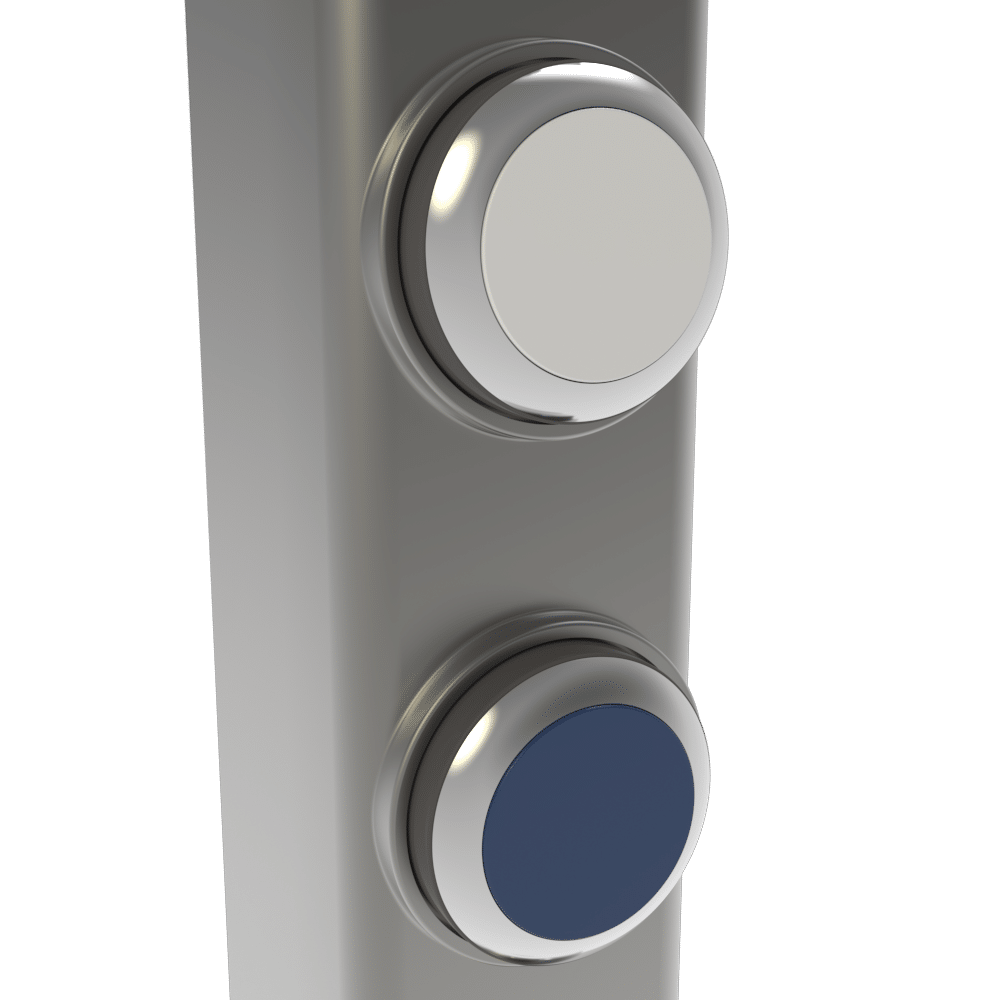

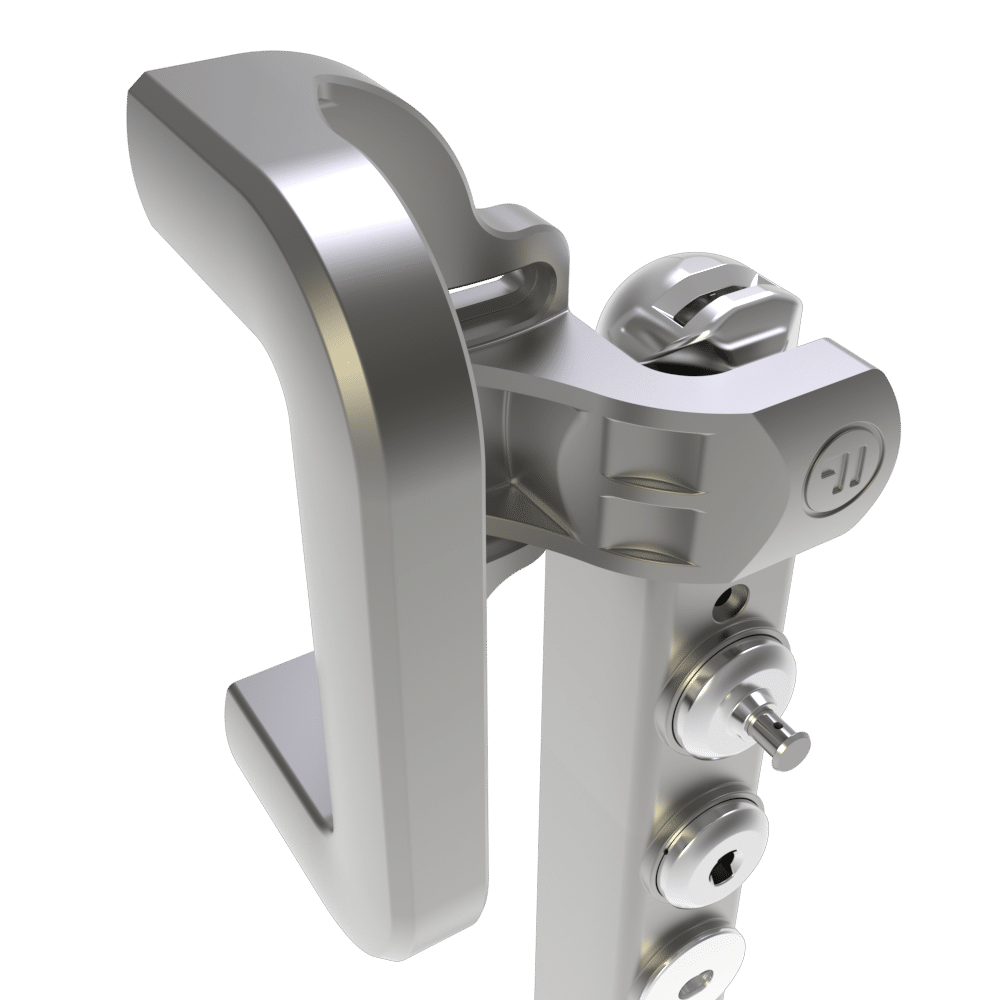

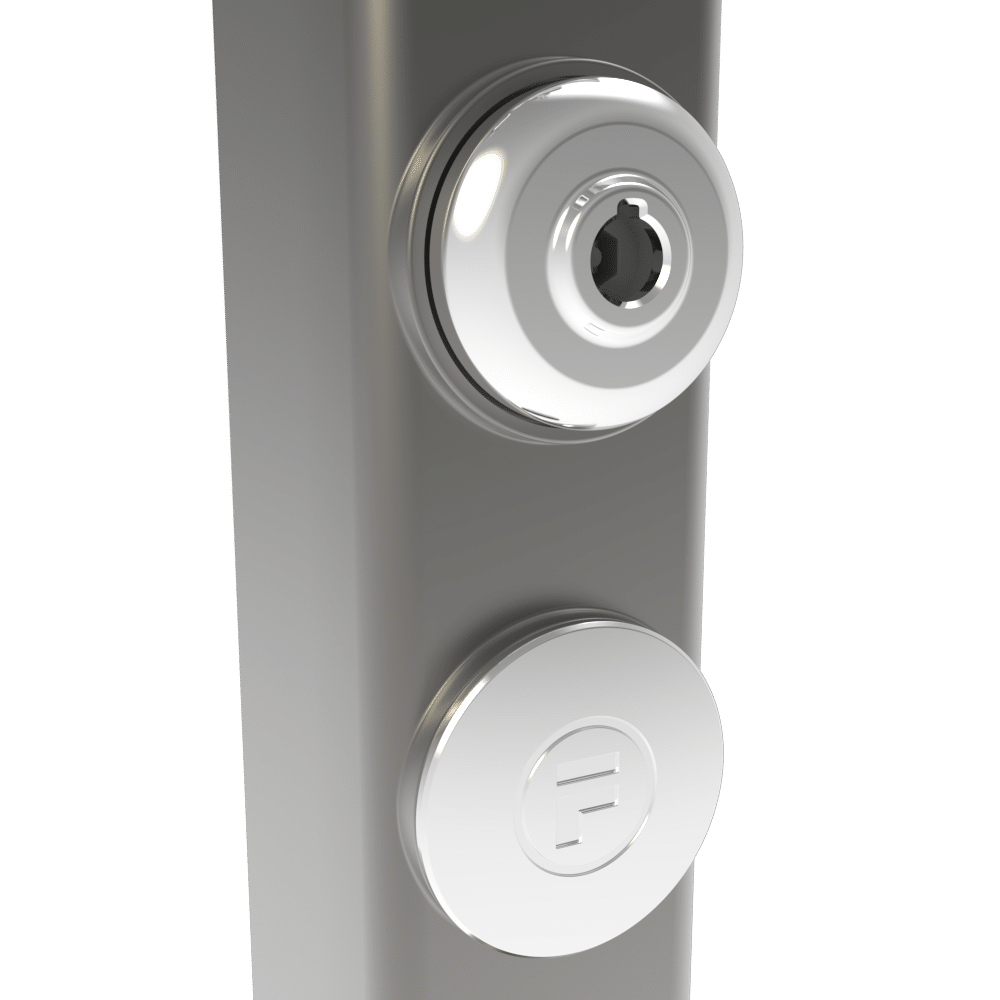

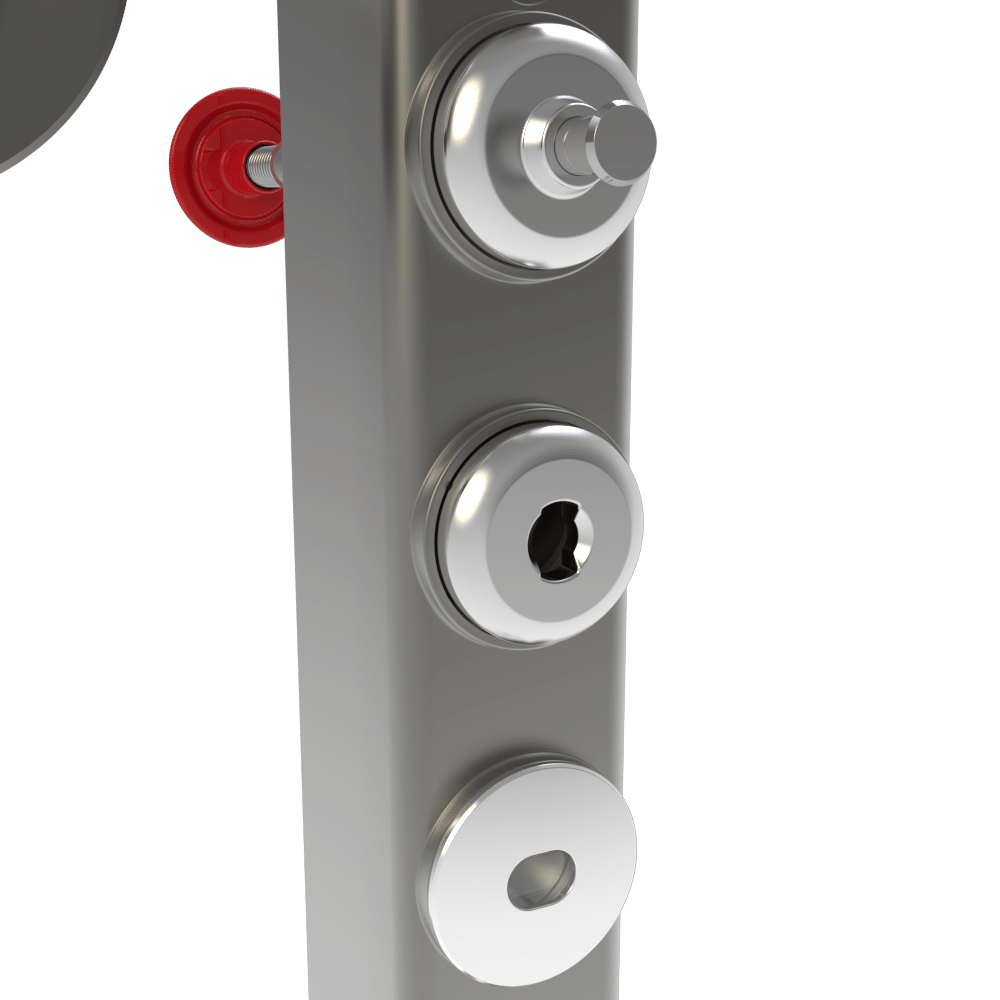

This interlock features a hinged actuator, 60mm escape release, master personnel (safety) lock (key not included), Power-to-Unlock solenoid safety contacts in series, an extension blank element, white and blue pushbuttons, and supports up to 2 AS-i nodes.
The THHRXGNSMDUEBP7P6EBB4 model from Fortress Safety is an exceptional solution for industrial safety needs. Designed with user safety in mind, this interlock features a 60 mm escape release that allows for quick and efficient exits during emergencies. It includes a master personnel lock to enhance security (key not included). Operating at 24V, this device offers excellent protection against dust and water with its IP65 rating. It performs reliably within a temperature range of -25°C to 40°C (-13°F to 104°F). Supporting up to 2 AS-i nodes provides significant advantages for system integration. The Fortress Safety THHRXGNSMDUEBP7P6EBB4 is an ideal choice to enhance security in your industrial facilities. Its compliance with safety standards minimizes risks at your workplace, ensuring a safer environment for all.
Technical Specifications
| Colour | Dark Grey |
| Features | Escape Release, Personnel Key, Power-to-Unlock |
| LED Life | 100,000 hours on time |
| Aux Supply | 24V +/- 10% (PELV or SELV) |
| Back Plate | Stainless Steel will contain factory blemishes |
| AS-i Supply | 26.5 – 31.6V |
| Aux Current | ≤400mA |
| Environment | Indoor |
| Part Number | THHRXGNSMDUEBP7P6EBB4 |
| AS-i Current | ≤135mA |
| Connector Type | M12 5 Pin |
| Operating Life | 1,000,000 momentary version 500,000 latching version |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 0.5Nm |
| Retention Force | 2500N(locked) |
| Solenoid Rating | 350mA max @ 24VDC |
| Contact Material | Silver |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Switching Contact Element | 1 output |
| Brand | Fortress Safety |
| Model | THHRXGNSMDUEBP7P6EBB4 |
| Main Category | Fortress Safety |
