Fortress Safety
Fortress Safety
THHRXSMDU2AQ5
In Stock (100 items)
45 views
€0,00
VAT Included
Product Summary

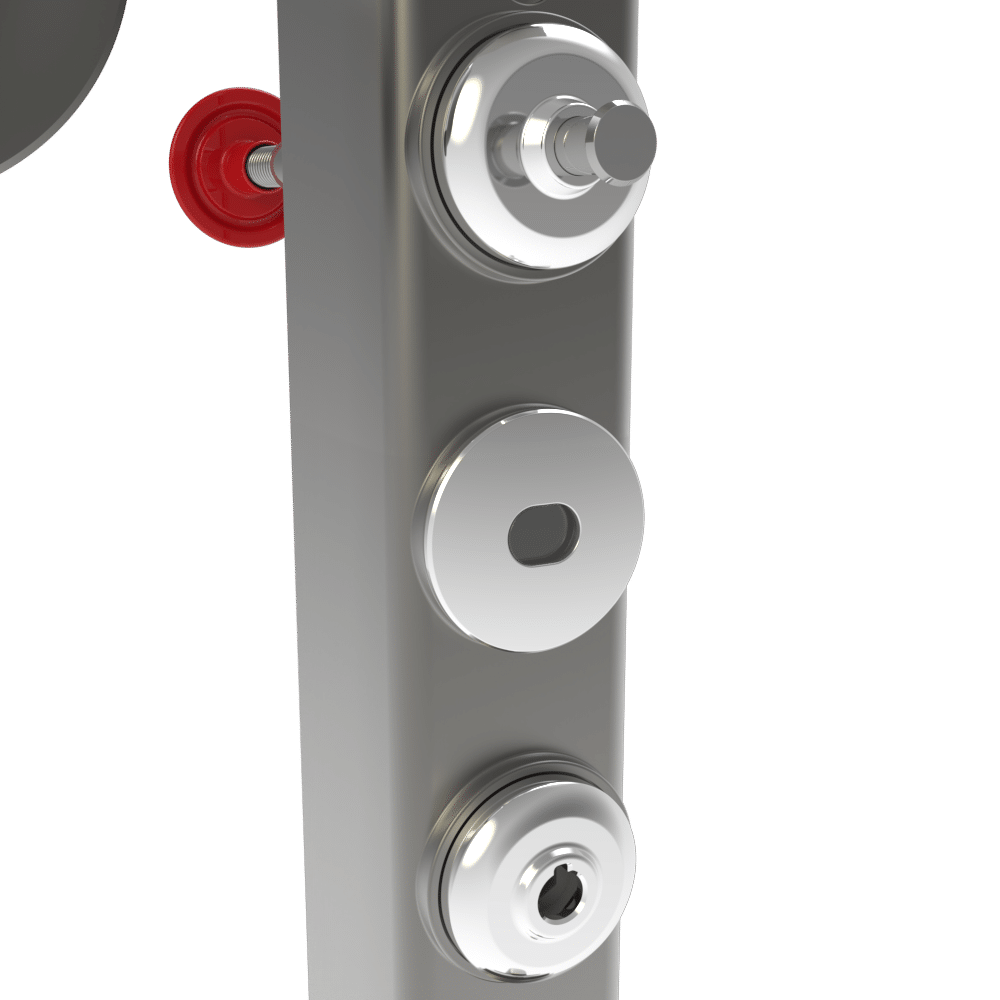

This interlock features a hinged actuator, 60mm escape release, Power-to-Unlock solenoid safety contacts in series, and a 2-position latching selector switch. Includes a 12-pin M23 quick disconnect.
Product Description
This interlock features a hinged actuator, 60mm escape release, Power-to-Unlock solenoid safety contacts in series, and a 2-position latching selector switch. Includes a 12-pin M23 quick disconnect.
The Fortress Safety THHRXSMDU2AQ5 model is an exceptional solution for industrial safety applications. This interlock system stands out with its durable yet lightweight design. The 60mm escape release mechanism ensures safe and reliable operation, while the Power-to-Unlock solenoid safety contacts in series elevate security standards to the highest level.

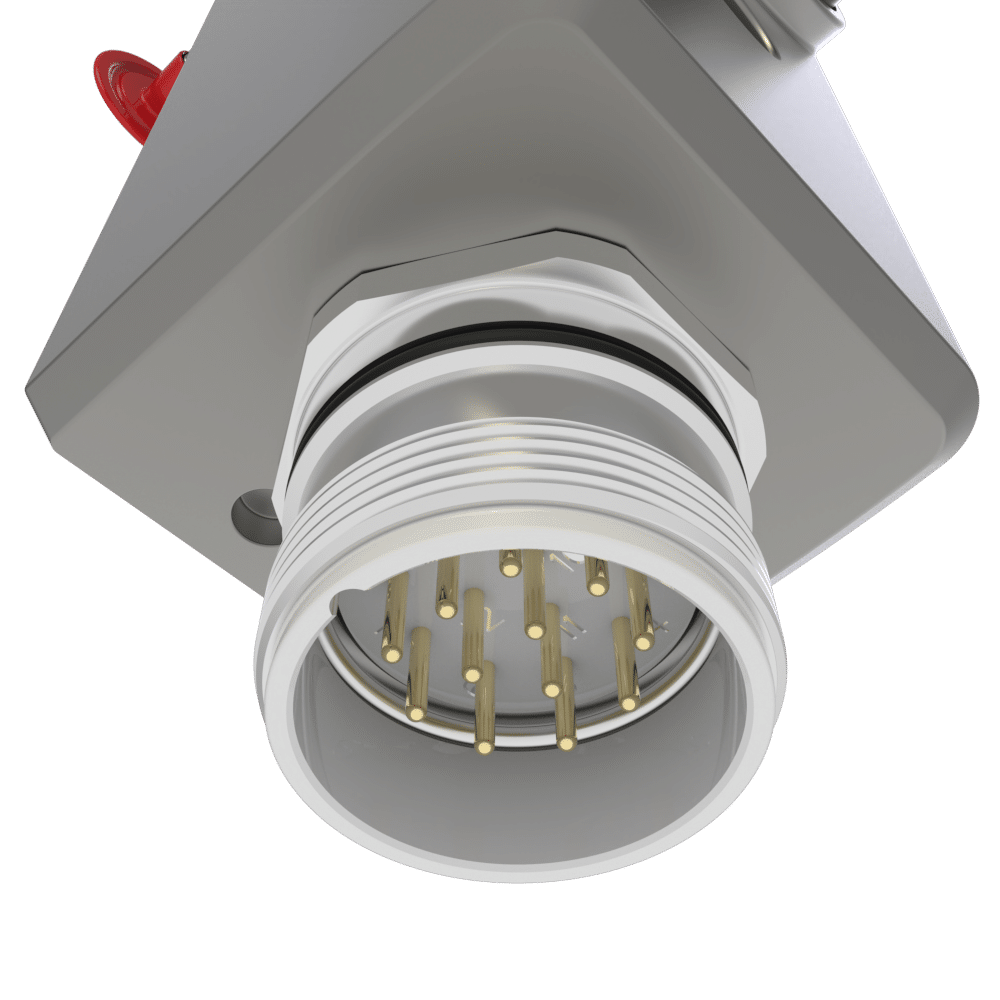

With an IP65 protection class, this product offers high resistance to dust and water, making it suitable for demanding industrial environments. Its operational temperature range of -25°C to 40°C ensures reliable performance under various conditions. The 12-pin M23 quick disconnect feature reduces installation time, enhancing overall efficiency. The THHRXSMDU2AQ5 is an ideal choice for improving safety in industrial automation systems. It is the perfect solution for businesses seeking security, efficiency, and durability.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Escape Release, Power-to-Unlock |
| Back Plate | Stainless Steel will contain factory blemishes |
| Environment | Indoor |
| Part Number | THHRXSMDU2AQ5 |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 5N to 10N |
| Retention Force | 2500N(locked) |
| Solenoid Rating | 350mA max @ 24VDC |
| Contact Material | Gold |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Switching Contact Element | 1 output |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THHRXSMDU2AQ5 |
| Main Category | Fortress Safety |
