Fortress Safety
Fortress Safety
THHRZGNSMELEM3FQ9
In Stock (100 items)
57 views
€0,00
VAT Included
Product Summary
This interlock features a hinged actuator, variable length escape release, master personnel (safety) lock (key not included), Power-to-Lock safety contacts on the head element, an emergency stop, and...
Product Description

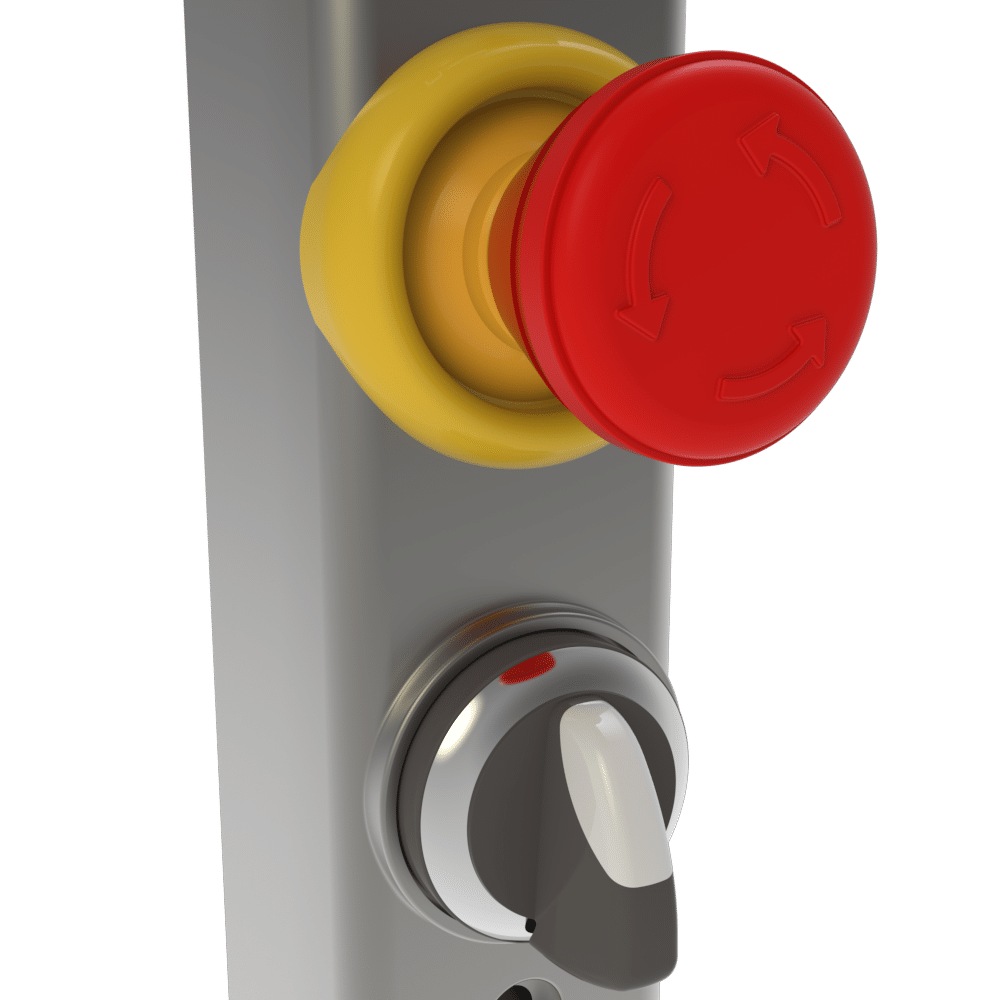

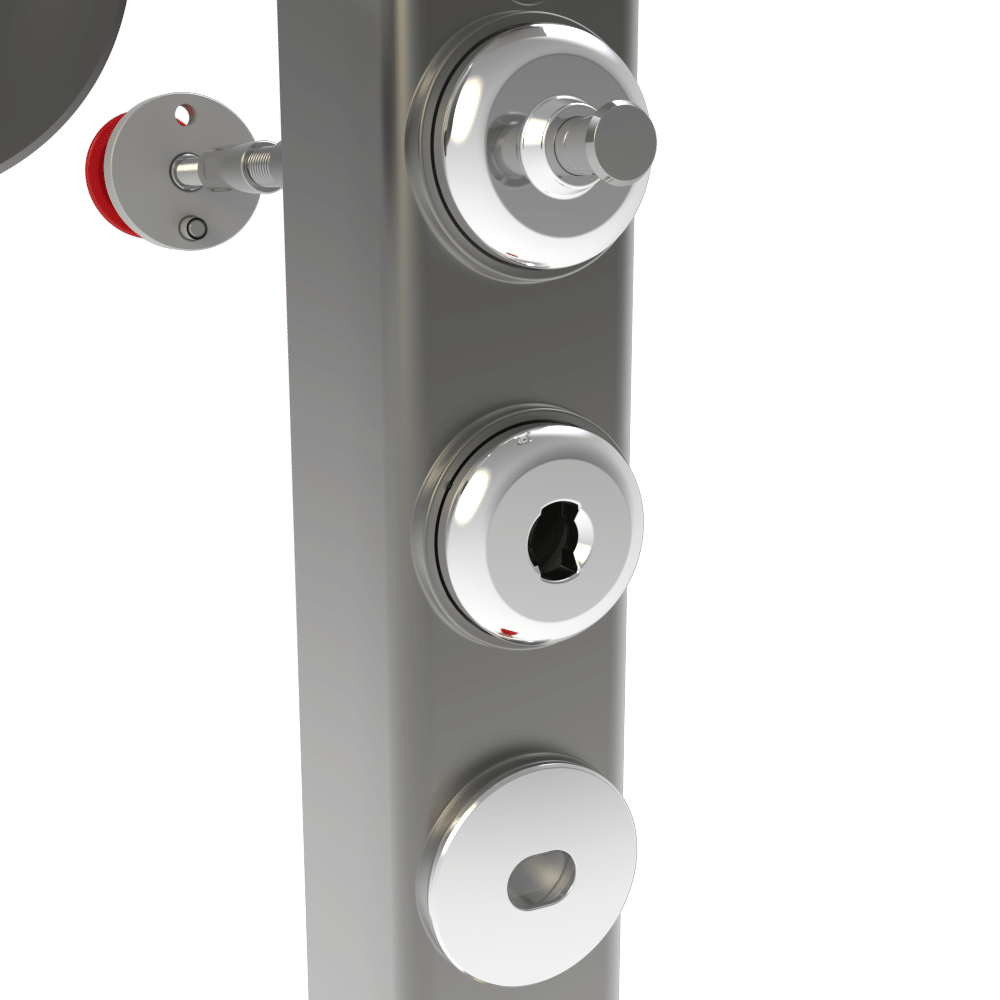

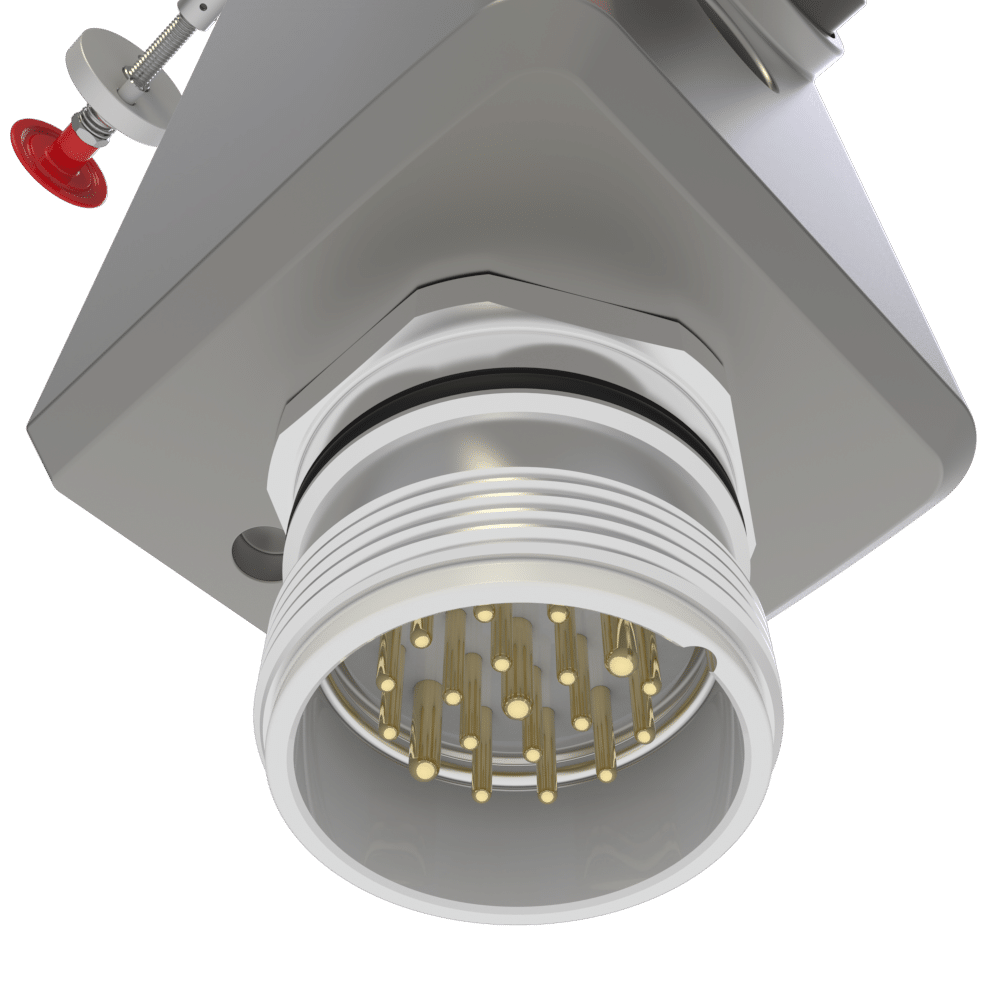

This interlock features a hinged actuator, variable length escape release, master personnel (safety) lock (key not included), Power-to-Lock safety contacts on the head element, an emergency stop, and three-position momentary illuminated selector switches. Includes a 19-pin M23 quick disconnect.
The THHRZGNSMELEM3FQ9 model by Fortress Safety represents a groundbreaking solution in the field of industrial safety. Designed with a strong focus on user security, this interlock features a hinged actuator and a variable length escape release mechanism. It is equipped with a master personnel (safety) lock and a 19-pin M23 quick disconnect, ensuring seamless operation. The Power-to-Lock safety contacts, emergency stop feature, and three-position illuminated selector switches enable immediate user intervention when necessary.
With an IP65 protection rating, this product operates reliably in temperatures ranging from -25°C to 40°C (-13°F to 104°F). It is particularly favored in challenging environments such as heavy industry, automotive, and manufacturing facilities. Offering Fortress Safety's renowned quality and technology, the THHRZGNSMELEM3FQ9 is the ideal solution for enhancing workplace safety. Complying with industry safety standards, this product provides the necessary d...
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Escape Release, Personnel Key, Power-to-Lock |
| LED Life | 100,000 hours on time |
| Back Plate | Stainless Steel will contain factory blemishes |
| Environment | Indoor |
| Part Number | THHRZGNSMELEM3FQ9 |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 0.5Nm |
| Retention Force | 2500N(locked) |
| Solenoid Rating | 350mA max @ 24VDC |
| Contact Material | Silver |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Switching Principle | Positive Break |
| Switches Conformance | IEC 60947-5-1 |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Switching Contact Element | 2 outputs |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THHRZGNSMELEM3FQ9 |
| Main Category | Fortress Safety |
