Fortress Safety
Fortress Safety
THHRZSNSMELEIQ9
In Stock (100 items)
45 views
€0,00
VAT Included
Product Summary
This interlock features a hinged actuator, variable length escape release, standard personnel (safety) lock (key not included), Power-to-Lock safety contacts on the head element, and an emergency stop...
Product Description

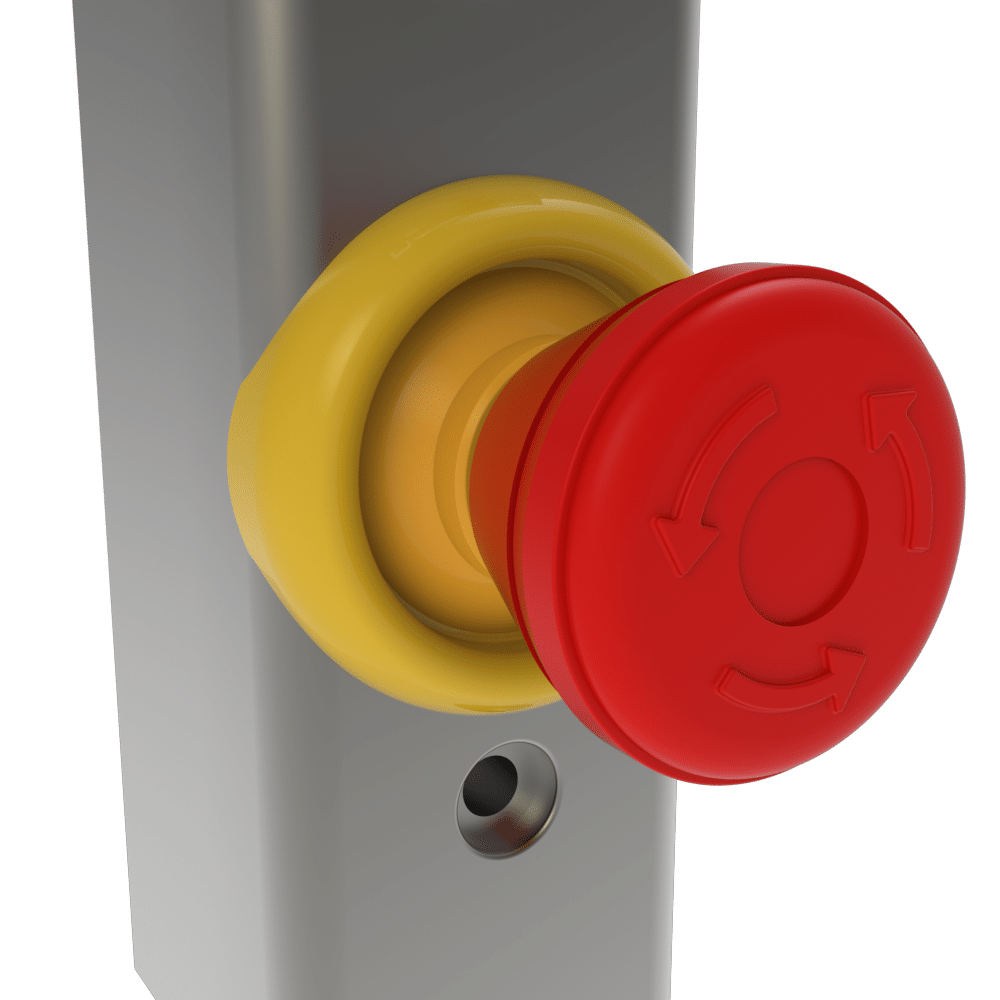

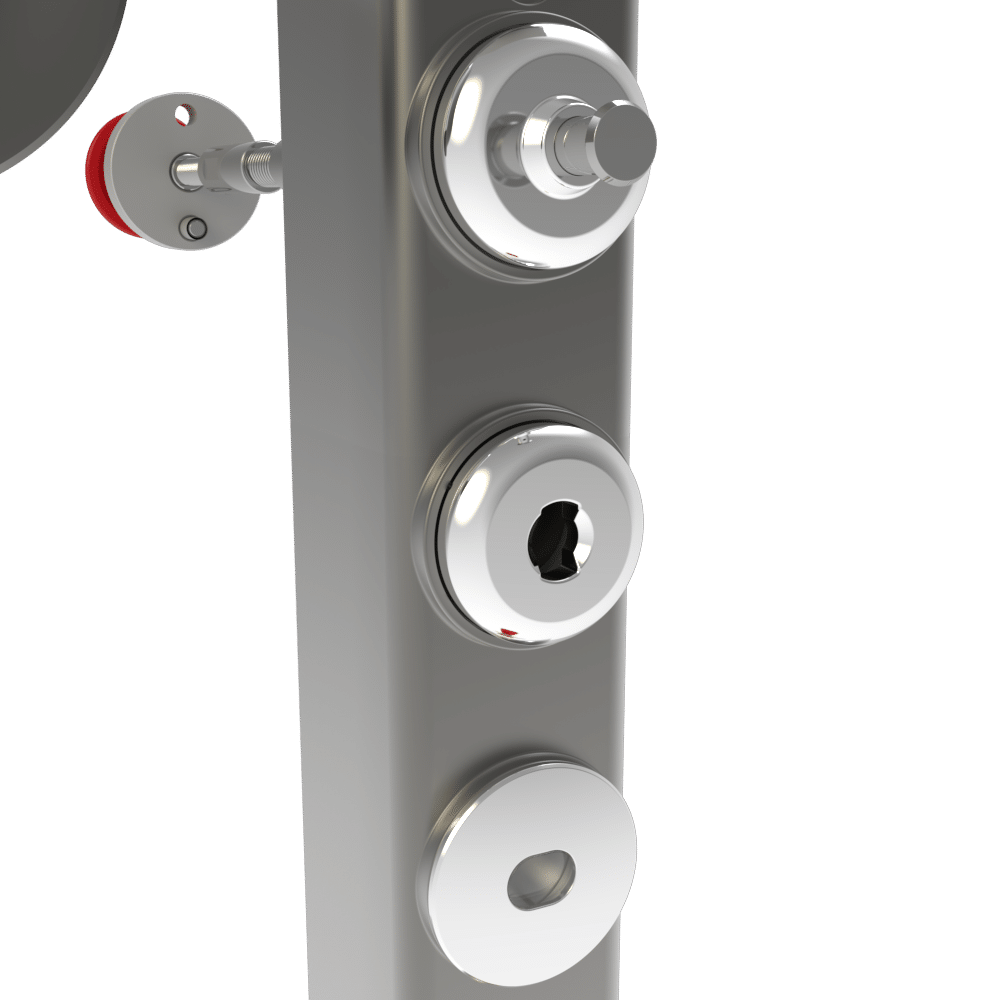

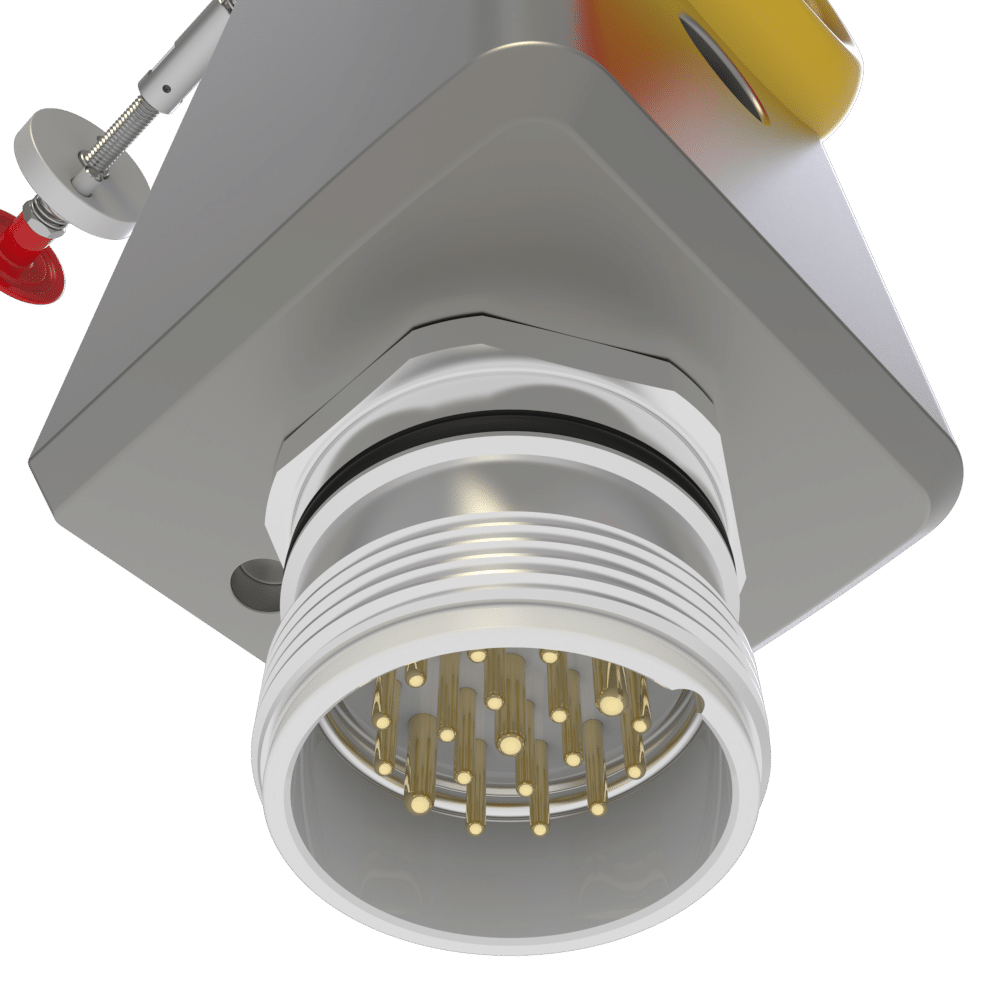

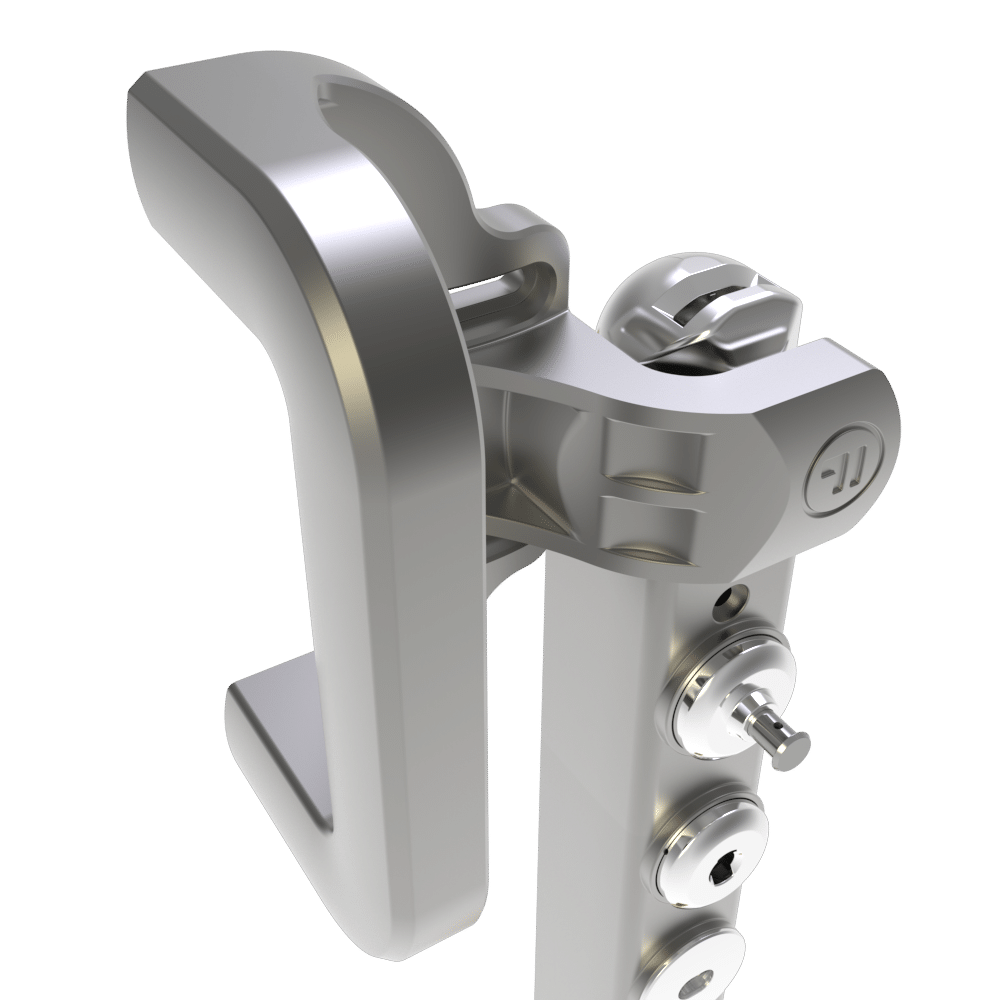

This interlock features a hinged actuator, variable length escape release, standard personnel (safety) lock (key not included), Power-to-Lock safety contacts on the head element, and an emergency stop. Includes a 19-pin M23 quick disconnect.
The Fortress Safety THHRZSNSMELEIQ9 model is designed to meet the highest standards in industrial safety. This interlock features a hinged actuator and a variable length escape release mechanism, ensuring maximum user safety. It also includes a standard personnel safety lock (key not included) and Power-to-Lock safety contacts on the head element, along with an emergency stop function.
With an IP65 protection class, it offers dust and water resistance, making it reliable even in harsh industrial environments. Its operational temperature range of -25°C to 40°C allows for versatile use in various climate conditions. Operating at 24V, this safety device can be easily installed with the 19-pin M23 quick disconnect feature. The Fortress Safety THHRZSNSMELEIQ9 is an ideal solution to enhance your industrial safety systems and ensure the protection of your employees.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Escape Release, Personnel Key, Power-to-Lock |
| Back Plate | Stainless Steel will contain factory blemishes |
| Environment | Indoor |
| Part Number | THHRZSNSMELEIQ9 |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 0.5Nm |
| Retention Force | 2500N(locked) |
| Solenoid Rating | 350mA max @ 24VDC |
| Contact Material | Silver |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Switching Principle | Positive Break |
| Switches Conformance | IEC 60947-5-1 |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THHRZSNSMELEIQ9 |
| Main Category | Fortress Safety |
