Fortress Safety
Fortress Safety
THHRZSNSMEUPZW1
In Stock (100 items)
202 views
€0,00
VAT Included
Product Summary

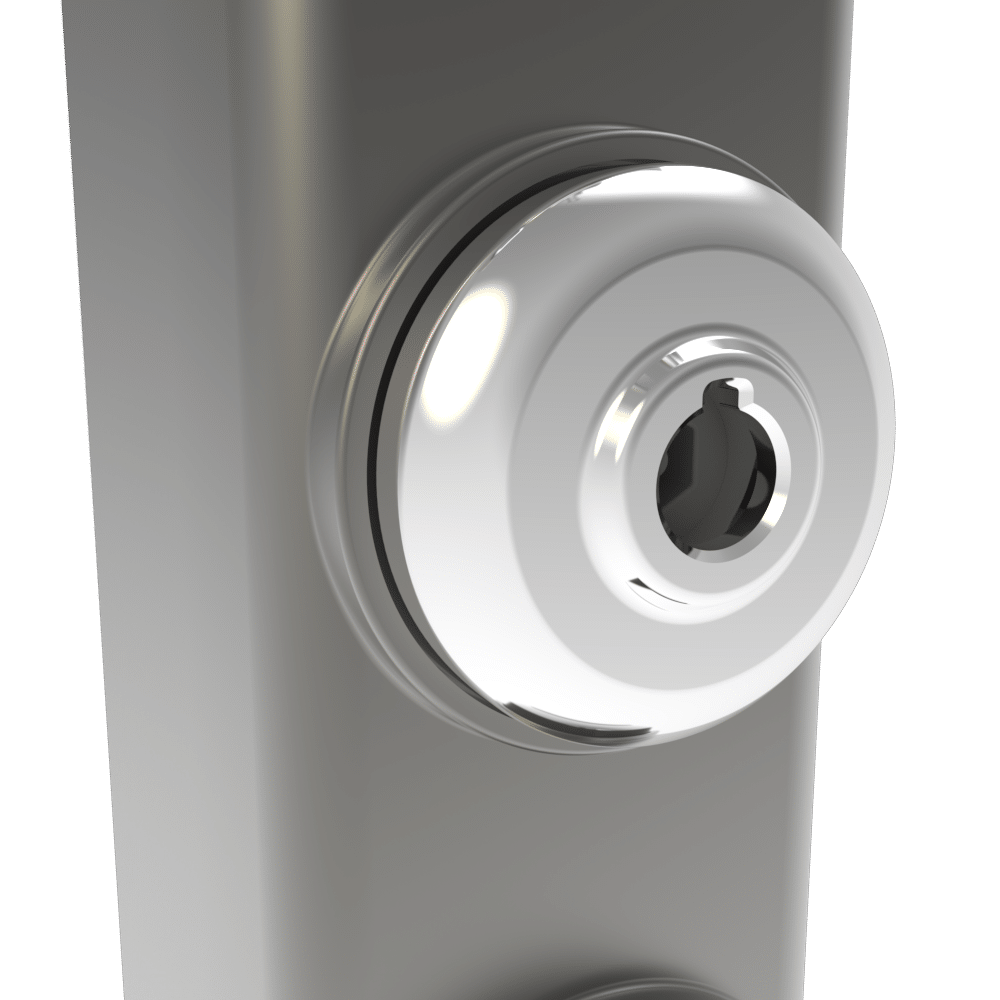

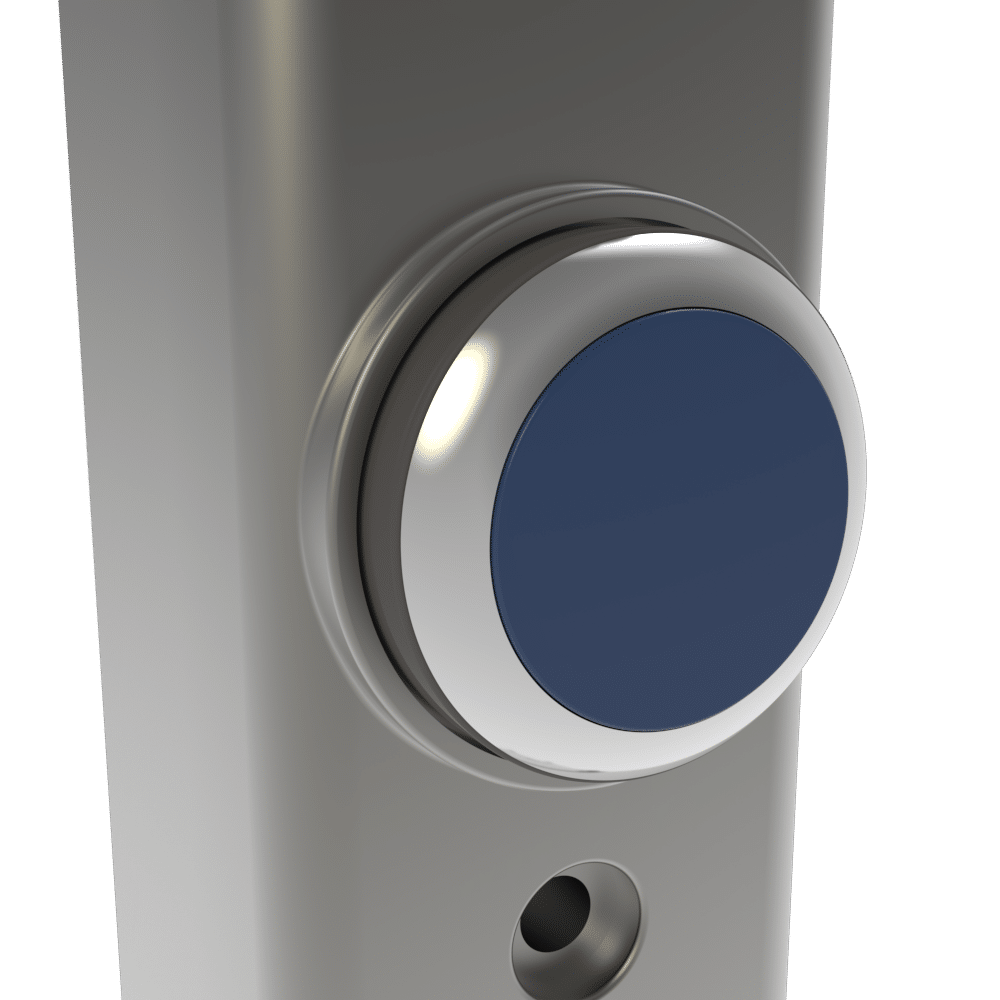

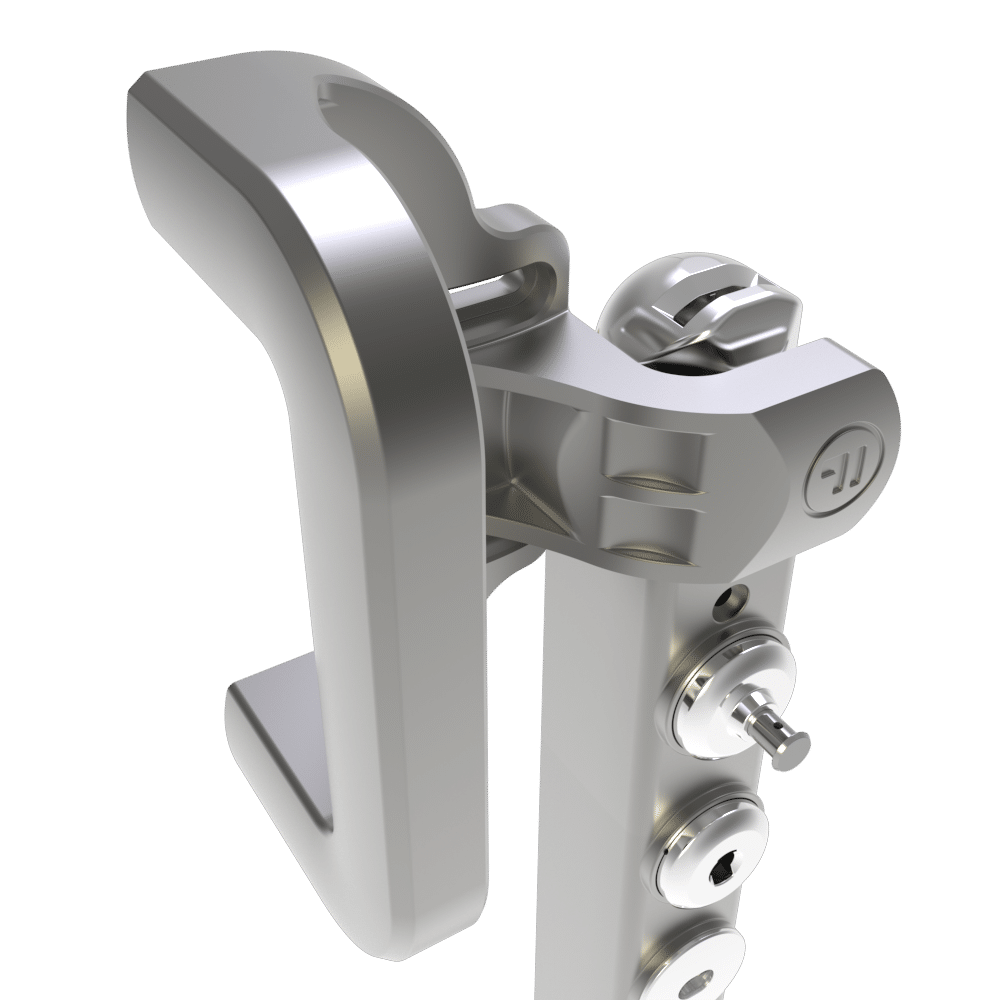

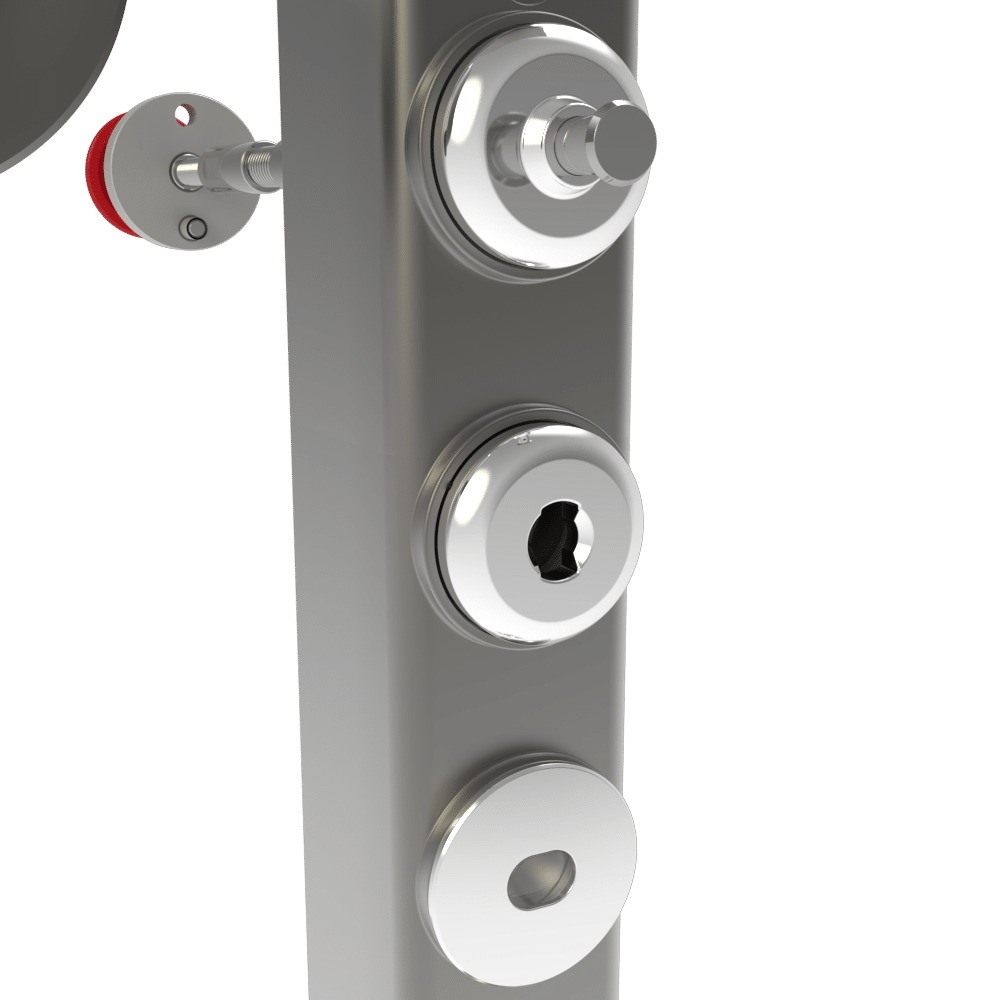

This interlock features a hinged actuator, variable length escape release, personnel (safety) lock (key not included), Power-to-Unlock safety contacts on the head element, a blue pushbutton, and a 12...
Product Description
This interlock features a hinged actuator, variable length escape release, personnel (safety) lock (key not included), Power-to-Unlock safety contacts on the head element, a blue pushbutton, and a 12 terminals connector.
The Fortress Safety THHRZSNSMEUPZW1 interlock provides top-level protection in industrial safety applications. Operating at 24V, this product is constructed from durable painted die-cast aluminum and boasts an IP65 protection class, ensuring excellent resistance against external elements. It operates safely within a temperature range of -25°C to 40°C, making it ideal for use in factories, warehouses, and manufacturing facilities.
Its hinged actuator design offers a user-friendly experience, while the variable length escape release mechanism allows for quick exits in emergencies. The personnel safety lock (key not included) and Power-to-Unlock safety contacts on the head element add an extra layer of security. With its distinctive blue pushbutton and a 12-terminal connector, installation is made easy. Choose the Fortress Safety THHRZSNSMEUPZW1 model to enhance your industrial safety and take your security to the next level.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Escape Release, Personnel Key, Power-to-Unlock |
| Back Plate | Stainless Steel will contain factory blemishes |
| Environment | Indoor |
| Part Number | THHRZSNSMEUPZW1 |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 0.5Nm |
| Retention Force | 2500N(locked) |
| Solenoid Rating | 350mA max @ 24VDC |
| Contact Material | Gold |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Switching Contact Element | 1 output |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THHRZSNSMEUPZW1 |
| Main Category | Fortress Safety |
