Fortress Safety
Fortress Safety
THHSMDUQM
In Stock (100 items)
50 views
€0,00
VAT Included
Product Summary

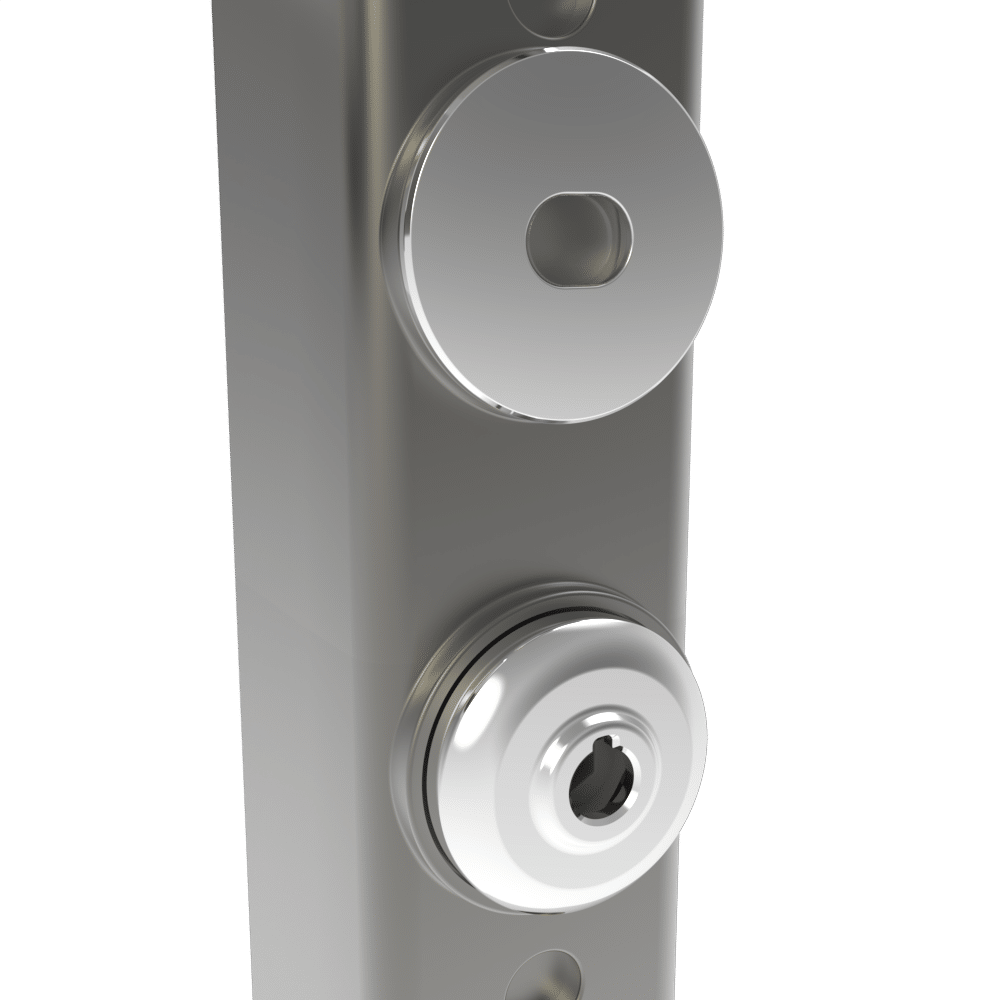

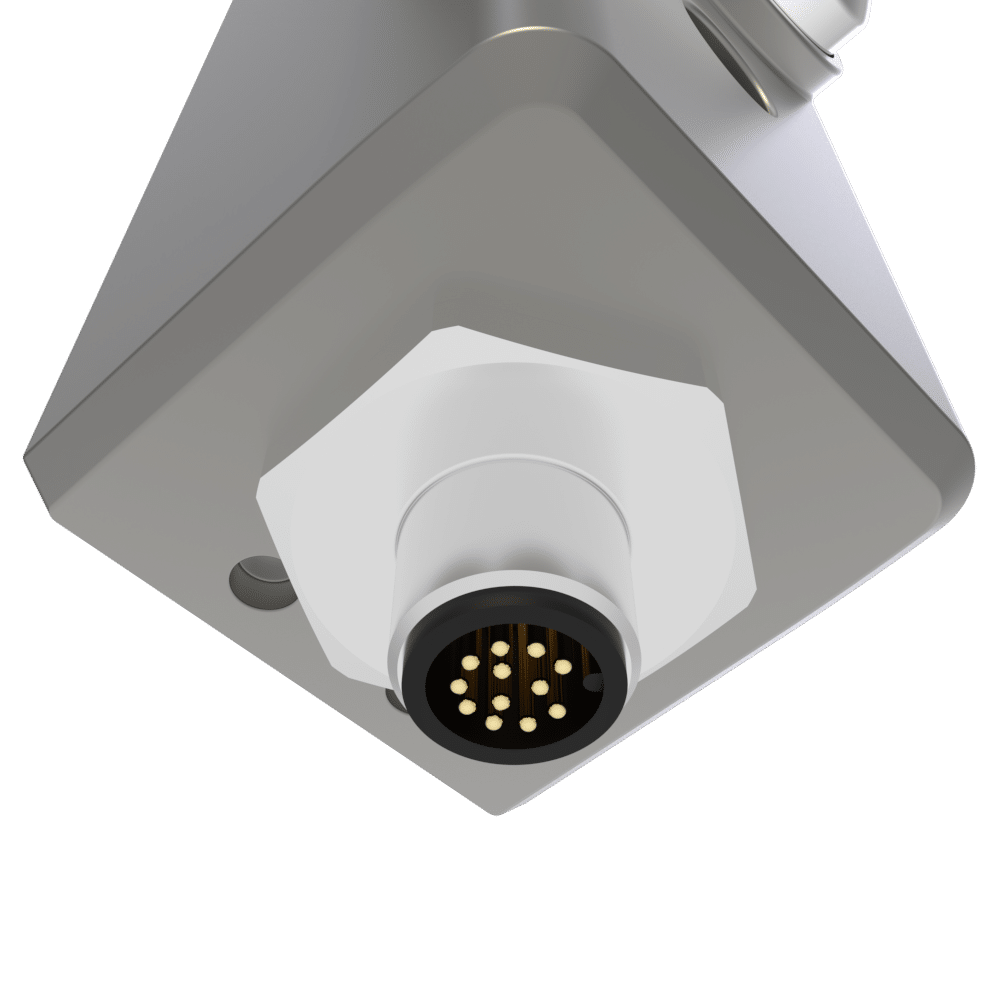

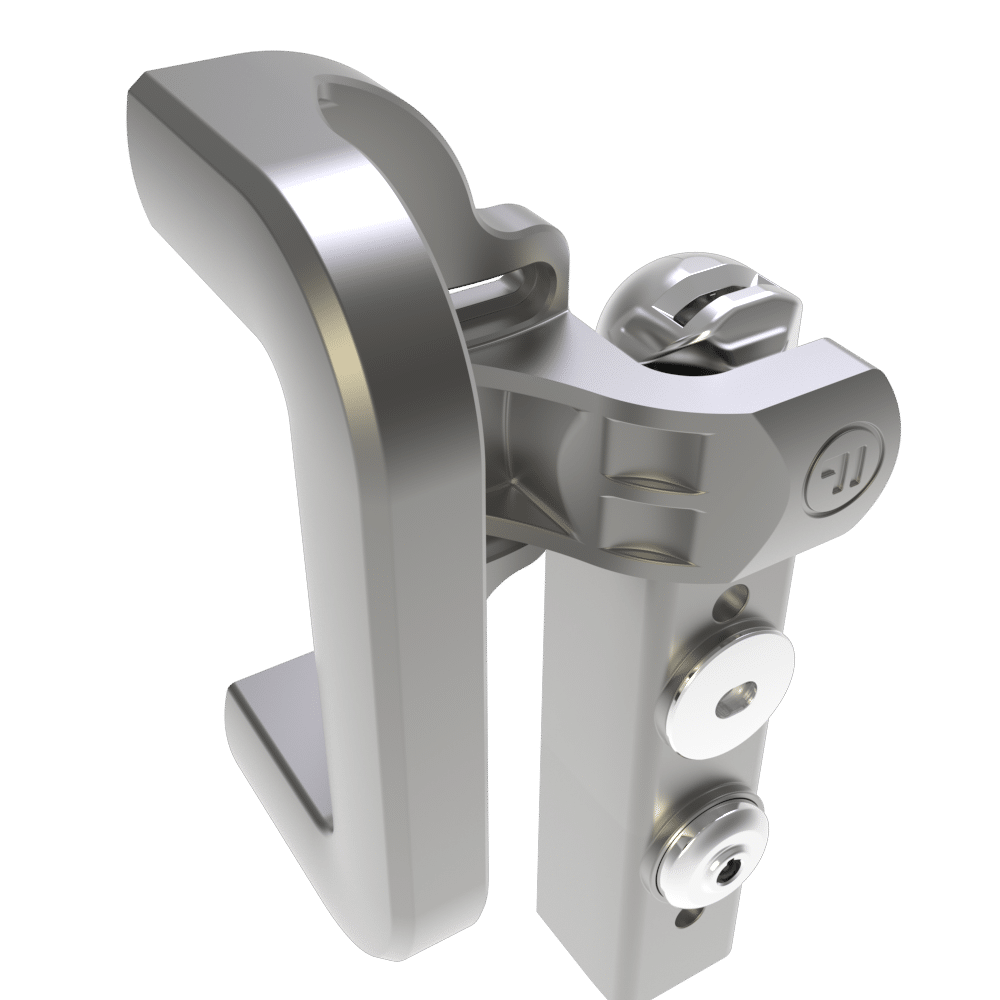

This interlock features a hinged actuator with Power-to-Unlock solenoid safety contacts in series. Includes a 12-pin M12 quick disconnect.
Product Description
This interlock features a hinged actuator with Power-to-Unlock solenoid safety contacts in series. Includes a 12-pin M12 quick disconnect.
The Fortress Safety THHSMDUQM model offers an excellent solution in the field of industrial safety. This safety interlock stands out with its hinged actuator design and operates in conjunction with Power-to-Unlock solenoid safety contacts, ensuring maximum security. The 12-pin M12 quick disconnect feature makes installation fast and convenient.
With an IP65 protection class, the THHSMDUQM is resistant to external factors and can operate safely in a temperature range of -25°C to 40°C. These features make it suitable for use even in harsh industrial environments. Fortress Safety meets safety standards by utilizing high-quality materials. This product is an ideal choice for factories, automotive sectors, and various industrial applications. Choose the THHSMDUQM model to enhance your workplace safety and strengthen your machine protection systems.
Technical Specifications
| Colour | Dark Grey |
| Features | Power-to-Unlock |
| Environment | Indoor |
| Part Number | THHSMDUQM |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 5N to 10N |
| Retention Force | 2500N(locked) |
| Solenoid Rating | 350mA max @ 24VDC |
| Contact Material | Silver |
| Housing Materials | Painted die cast aluminium |
| Ingress Protection | IP65 |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Brand | Fortress Safety |
| Model | THHSMDUQM |
| Main Category | Fortress Safety |
