THHSNABSMDUEDP6P7P2Q8
In Stock (100 items)
53 views
€0,00
VAT Included
Product Summary
This interlock features a hinged actuator, personnel (safety) lock and access lock (keys not included), Power-to-Unlock solenoid safety contacts in series, an emergency stop, blue, white, and yellow p...
Product Description

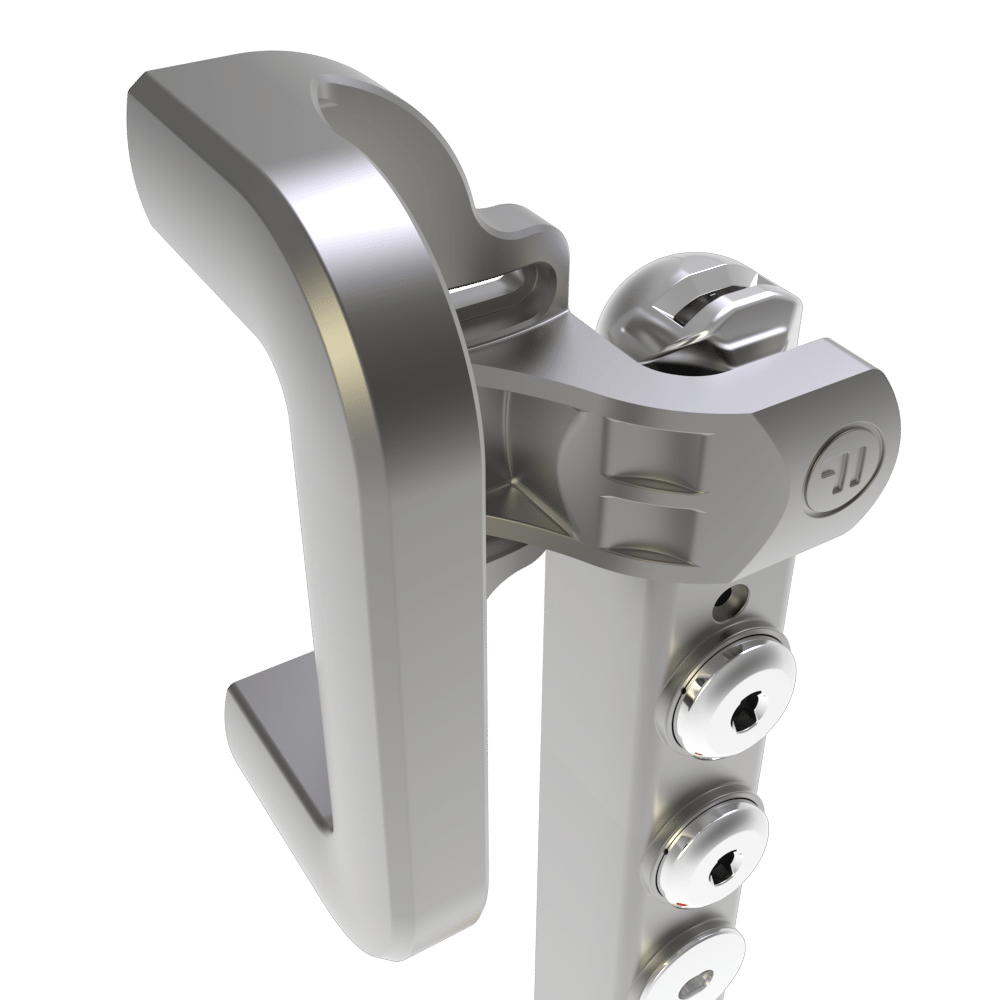

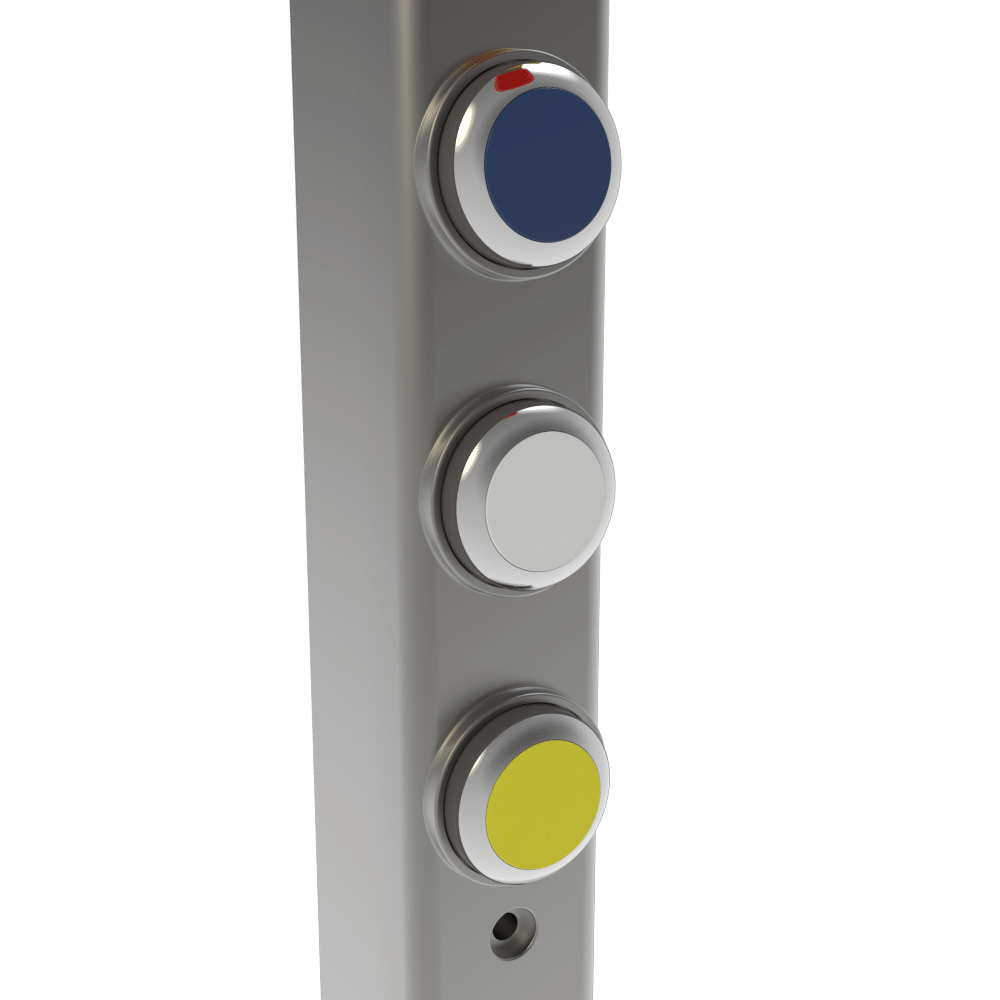

This interlock features a hinged actuator, personnel (safety) lock and access lock (keys not included), Power-to-Unlock solenoid safety contacts in series, an emergency stop, blue, white, and yellow pushbuttons. Includes a 19-pin M23 quick disconnect.

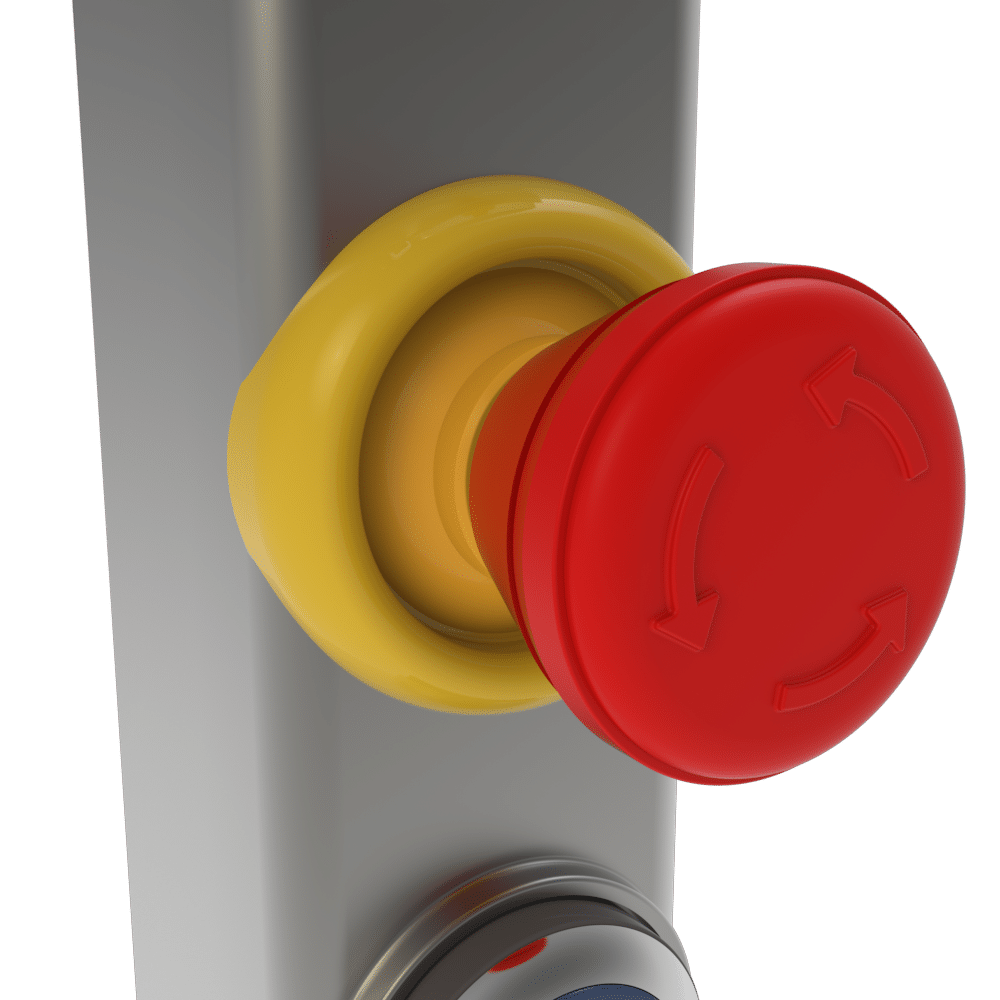

The THHSNABSMDUEDP6P7P2Q8 model from Fortress Safety is an advanced interlock safety system designed to meet the highest standards in industrial security. This interlock features a hinged actuator, personnel safety lock, and access lock, ensuring the utmost safety for your workforce. Operating at 24V, it includes an emergency stop button and blue, white, and yellow pushbuttons, providing versatility in emergency situations.
With an IP65 protection rating, this system is resilient against external factors and functions seamlessly within a temperature range of -25°C to 40°C. The 19-pin M23 quick disconnect feature simplifies installation and maintenance processes. Ideal for industrial automation, manufacturing facilities, and machinery safety, this model enhances security standards, ensuring maximum protection for your employees. Choose Fortress Safety's THHSNABSMDUEDP6P7P2Q8 for a reliable safety solution that elevates workplace safety to new heights.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Personnel Key, Power-to-Unlock |
| LED Life | 100,000 hours on time |
| Environment | Indoor |
| Part Number | THHSNABSMDUEDP6P7P2Q8 |
| Operating Life | 1,000,000 momentary version 500,000 latching version |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 0.5Nm |
| Retention Force | 2500N(locked) |
| Solenoid Rating | 350mA max @ 24VDC |
| Contact Material | Silver |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Switching Principle | Positive Break |
| Switches Conformance | IEC 60947-5-1 |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Switching Contact Element | 1 output |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THHSNABSMDUEDP6P7P2Q8 |
| Main Category | Fortress Safety |
