THNSMDUP7Q5
In Stock (100 items)
47 views
€0,00
VAT Included
Product Summary

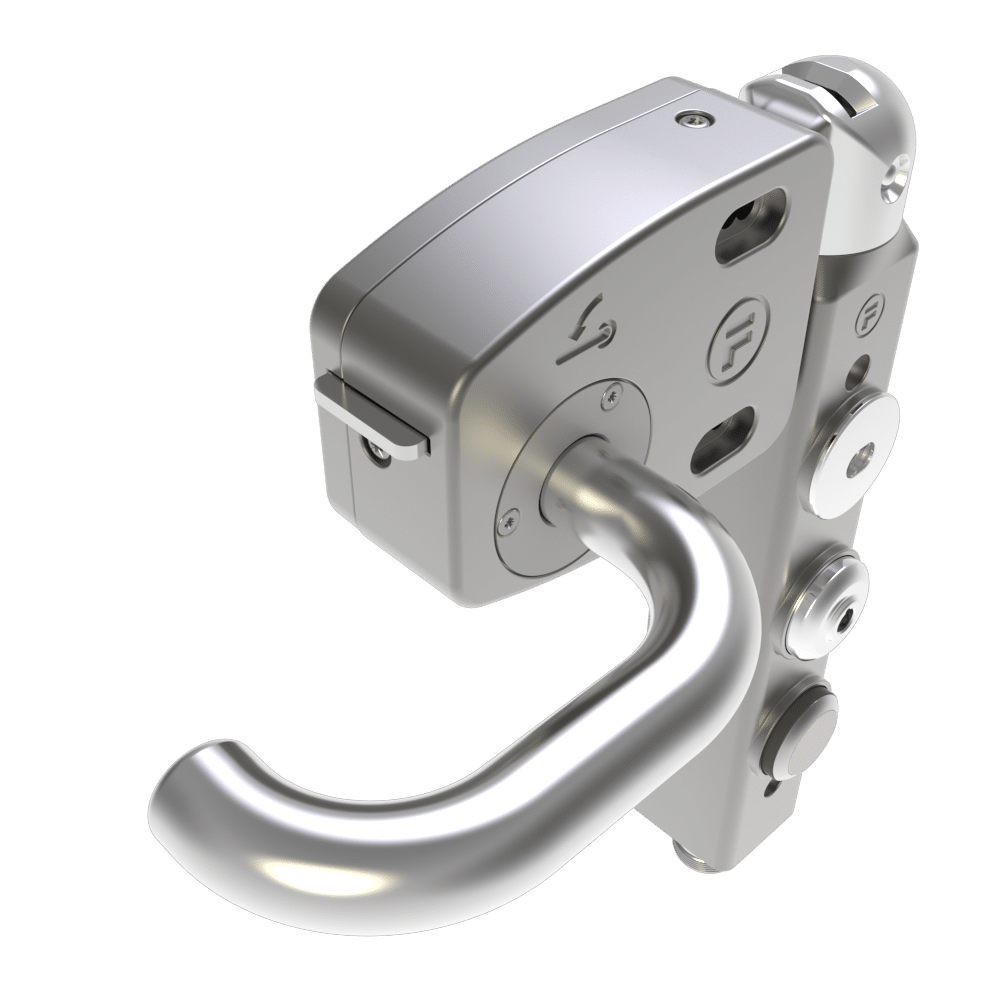

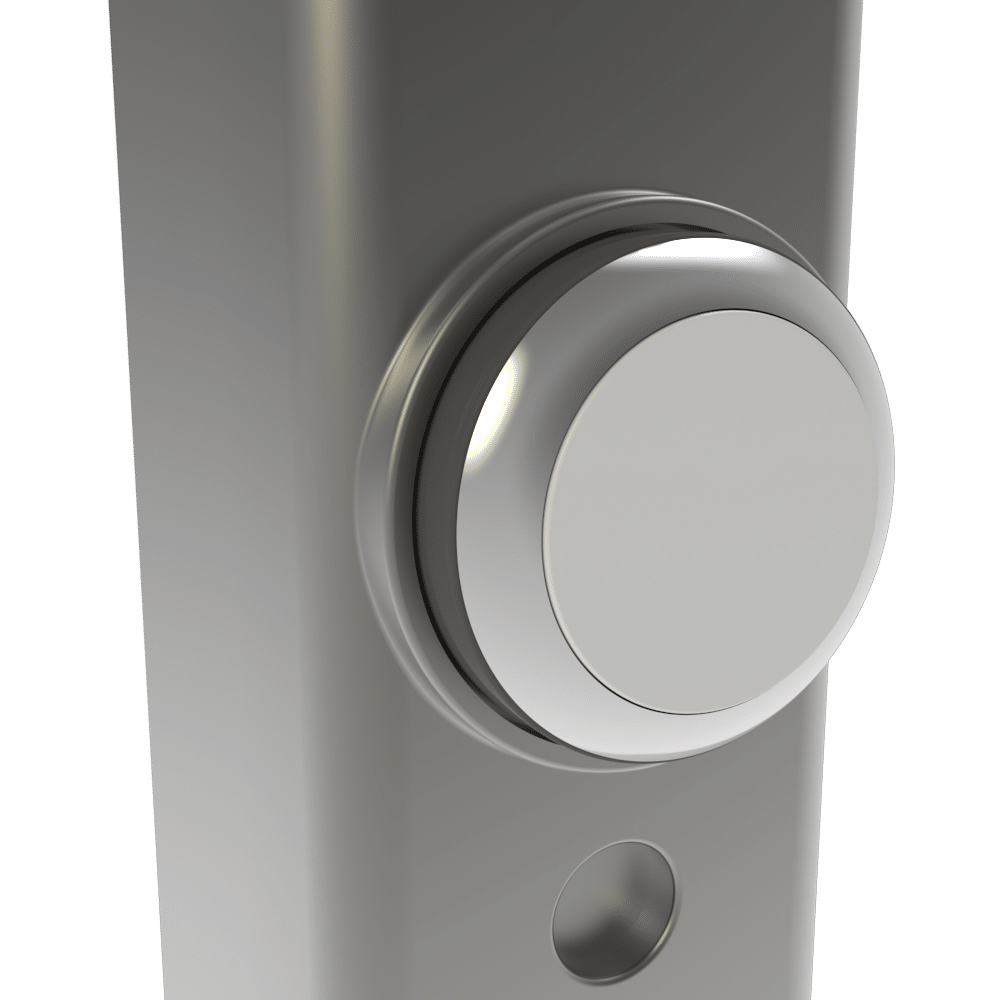

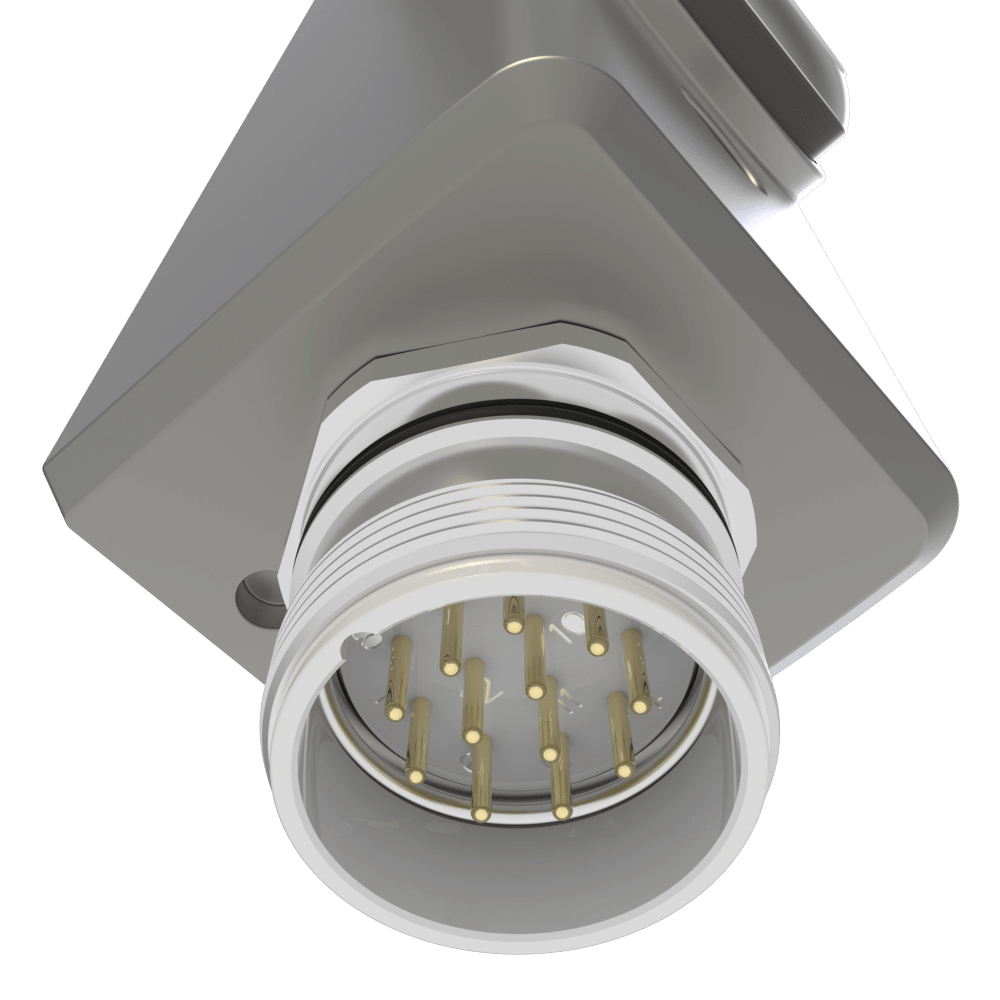

This interlock features a handle actuator (without an internal knob), Power-to-Unlock solenoid safety contacts in series, and a white pushbutton. Includes a 12-pin M23 quick disconnect.
Product Description
This interlock features a handle actuator (without an internal knob), Power-to-Unlock solenoid safety contacts in series, and a white pushbutton. Includes a 12-pin M23 quick disconnect.
The Fortress Safety THNSMDUP7Q5 model is designed with safety as a priority in industrial environments. Operating at 24V, this interlock features a handle actuator without an internal knob and is equipped with Power-to-Unlock solenoid safety contacts, ensuring maximum reliability. With an IP65 protection rating, this product offers excellent resistance to dust and water, making it suitable for challenging industrial applications. Its wide temperature range of -25°C to 40°C allows for consistent performance across various climate conditions. The 12-pin M23 quick disconnect feature simplifies installation and maintenance processes, while the durable painted die-cast aluminum construction ensures long-lasting use. The Fortress Safety THNSMDUP7Q5 is an ideal solution to enhance safety in industrial facilities, making it a perfect addition to automation systems and machine guarding applications.
Technical Specifications
| Colour | Dark Grey |
| Voltage | 24V DC |
| Features | Power-to-Unlock |
| LED Life | 100,000 hours on time |
| Environment | Indoor |
| Part Number | THNSMDUP7Q5 |
| Operating Life | 1,000,000 momentary version 500,000 latching version |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 5N to 10N |
| Retention Force | 2500N(locked) |
| Solenoid Rating | 350mA max @ 24VDC |
| Contact Material | Silver |
| Housing Materials | Painted die cast aluminium |
| Switching Current | 1mA MIN / 100mA MAX |
| Switching Voltage | 24V |
| Ingress Protection | IP65 |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Switching Contact Element | 1 output |
| Max current on power supply | 0.75A |
| Brand | Fortress Safety |
| Model | THNSMDUP7Q5 |
| Main Category | Fortress Safety |
