THSSMDLEBB4
In Stock (100 items)
53 views
€0,00
VAT Included
Product Summary

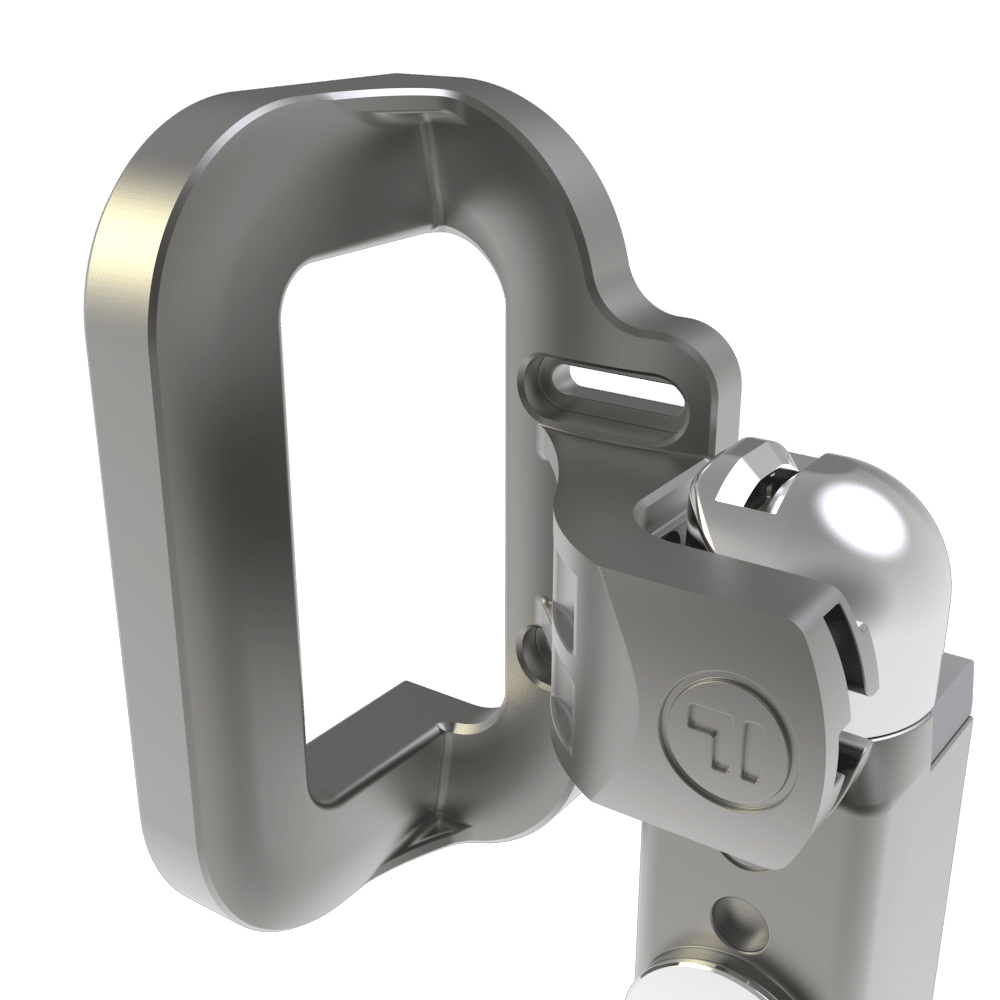

This interlock features a sliding actuator with Power-to-Lock solenoid safety contacts in series. Supports up to 2 AS-i nodes.
Product Description
This interlock features a sliding actuator with Power-to-Lock solenoid safety contacts in series. Supports up to 2 AS-i nodes.
The Fortress Safety THSSMDLEBB4 model is a high-quality interlock system designed for industrial safety applications. Featuring a sliding actuator and Power-to-Lock solenoid safety contacts, this model supports up to 2 AS-i nodes, providing flexible usage options. Constructed from painted die-cast aluminum, it offers increased durability while boasting an IP65 protection class that ensures high resistance to dust and water. It operates reliably within a temperature range of -25°C to 40°C (-13°F to 104°F), making it suitable for even the most challenging industrial environments. The Fortress Safety brand is known for meeting industry safety standards, and this model exemplifies that reliability. The THSSMDLEBB4 is the ideal solution for managing your industrial processes safely and efficiently.
Technical Specifications
| Colour | Dark Grey |
| Features | Power-to-Lock |
| Aux Supply | 24V +/- 10% (PELV or SELV) |
| AS-i Supply | 26.5 – 31.6V |
| Aux Current | ≤400mA |
| Environment | Indoor |
| Part Number | THSSMDLEBB4 |
| AS-i Current | ≤135mA |

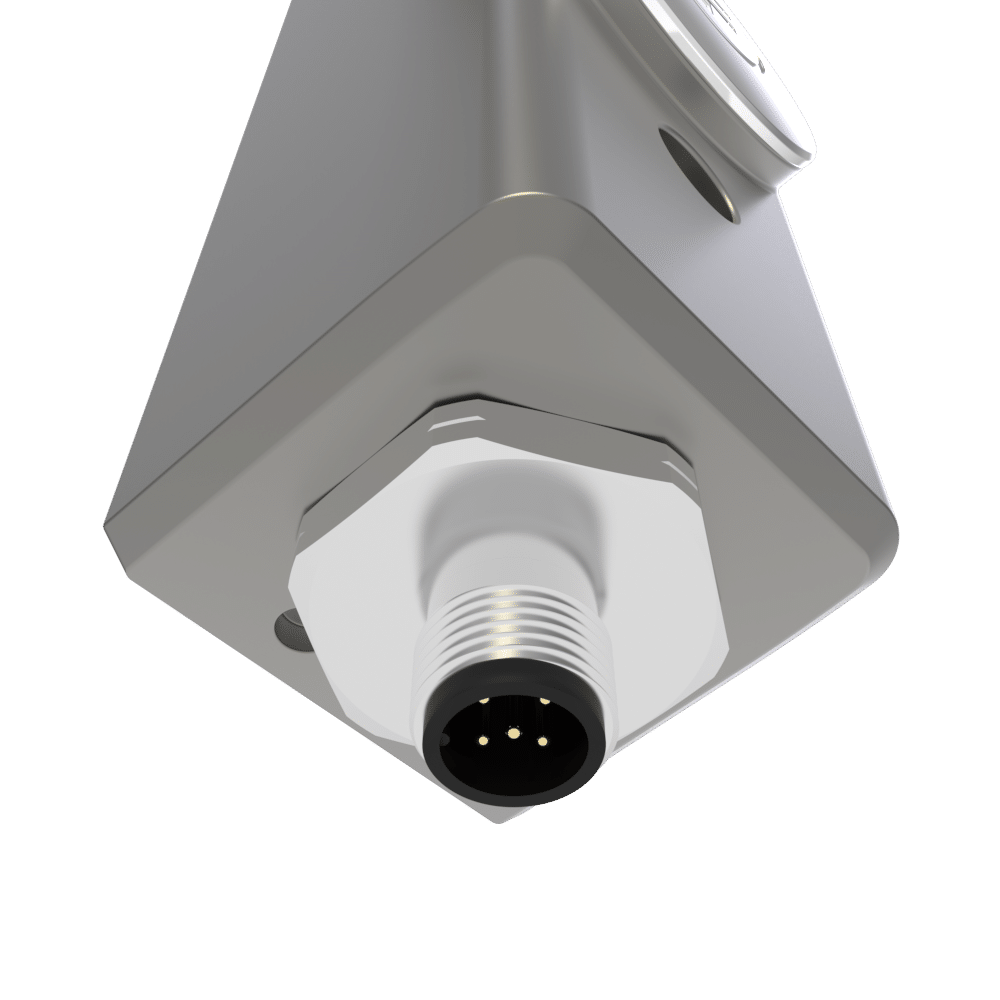

| Connector Type | M12 5 Pin |
| Electrical Life | 1,000,000 Operations |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 5N to 10N |
| Retention Force | 2500N(locked) |
| Solenoid Rating | 350mA max @ 24VDC |
| Contact Material | Silver |
| Housing Materials | Painted die cast aluminium |
| Ingress Protection | IP65 |
| Safety Switch Type | DC13: Le=0.5A, Ue=24V DC AC15: Le=1A, Ue=24V AC |
| Ambient Temperature | -25°C to 40°C (-13°F to 104°F) |
| Monitoring Switches | DC13: Le=0.5A, Ue=24V DC |
| Min hinged door radius | 150mm (using TAH actuator handle) |
| Brand | Fortress Safety |
| Model | THSSMDLEBB4 |
| Main Category | Fortress Safety |
