Fortress Safety
Fortress Safety
TI2T6RZAKR71ST401
In Stock (100 items)
49 views
€0,00
VAT Included
Product Summary

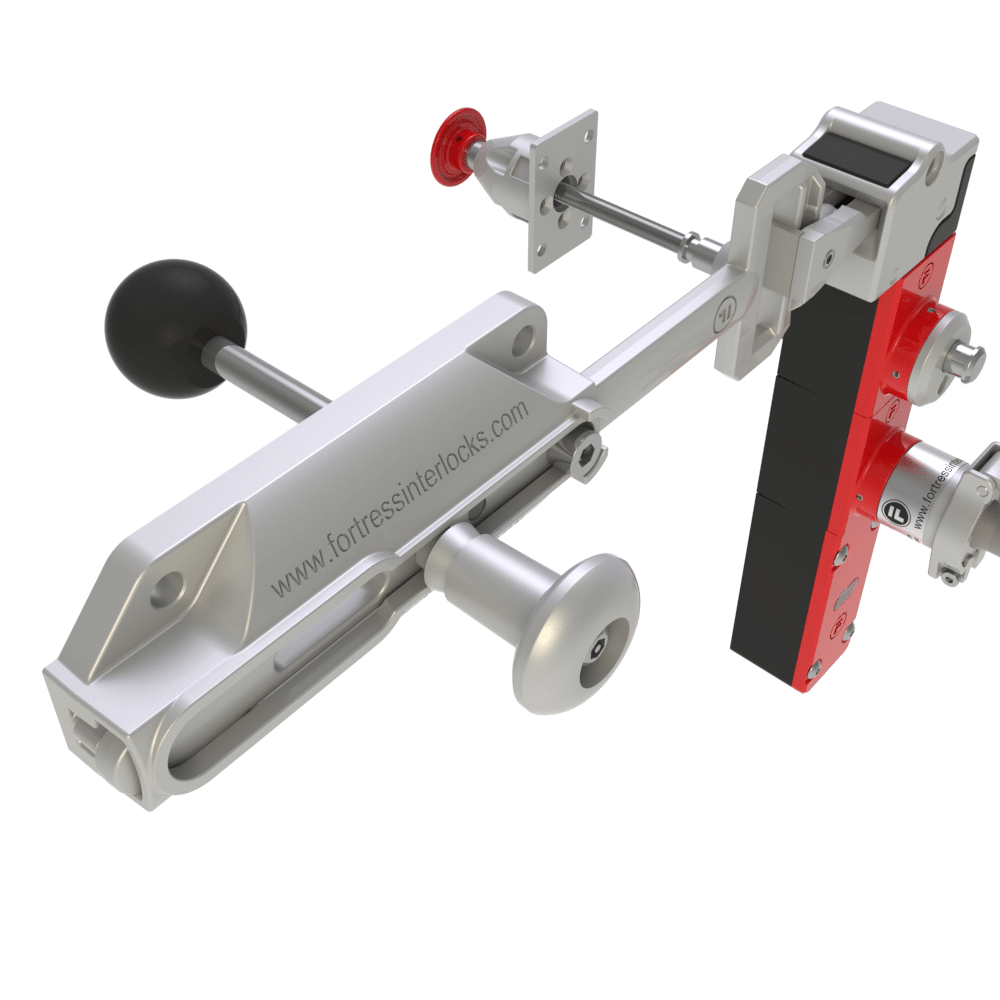

An interlock without locking, featuring a slidebar with an internal handle, push escape release with external button reset, and an access key adaptor with a masterable lock and dustcover.
Product Description
An interlock without locking, featuring a slidebar with an internal handle, push escape release with external button reset, and an access key adaptor with a masterable lock and dustcover.

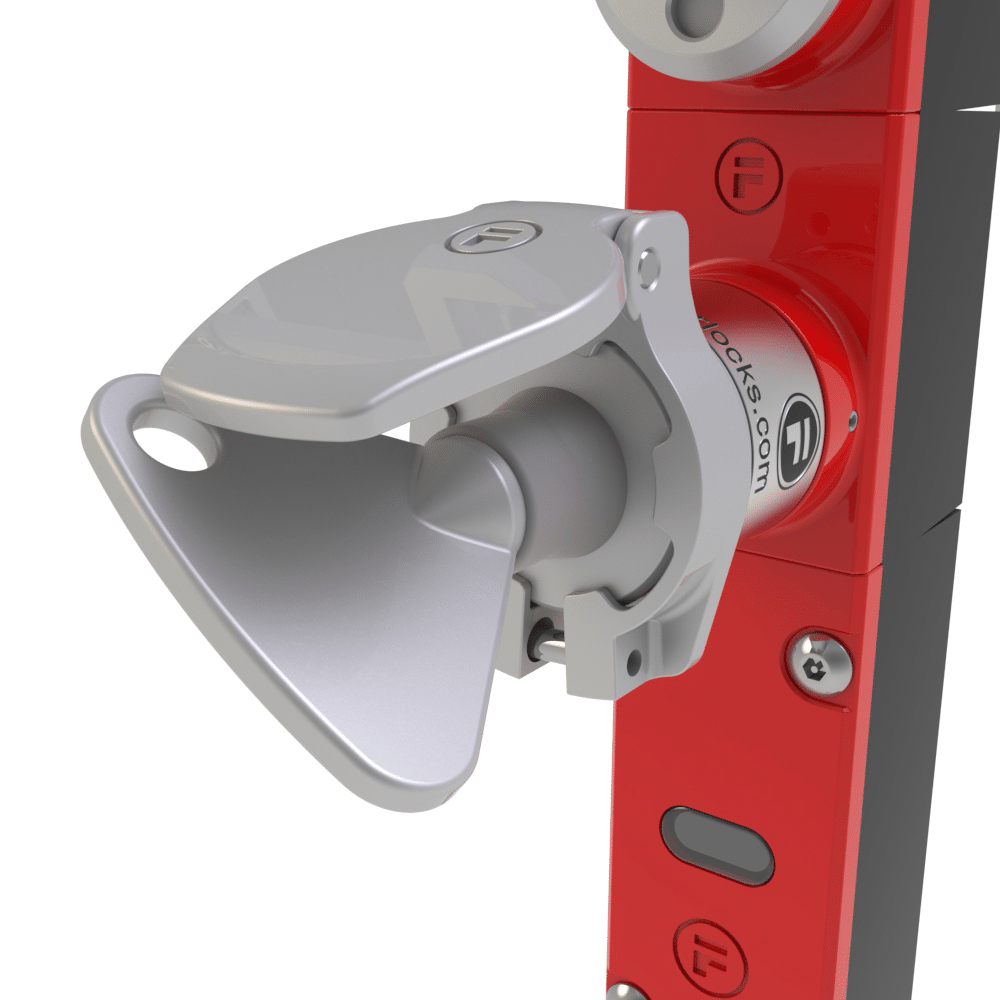

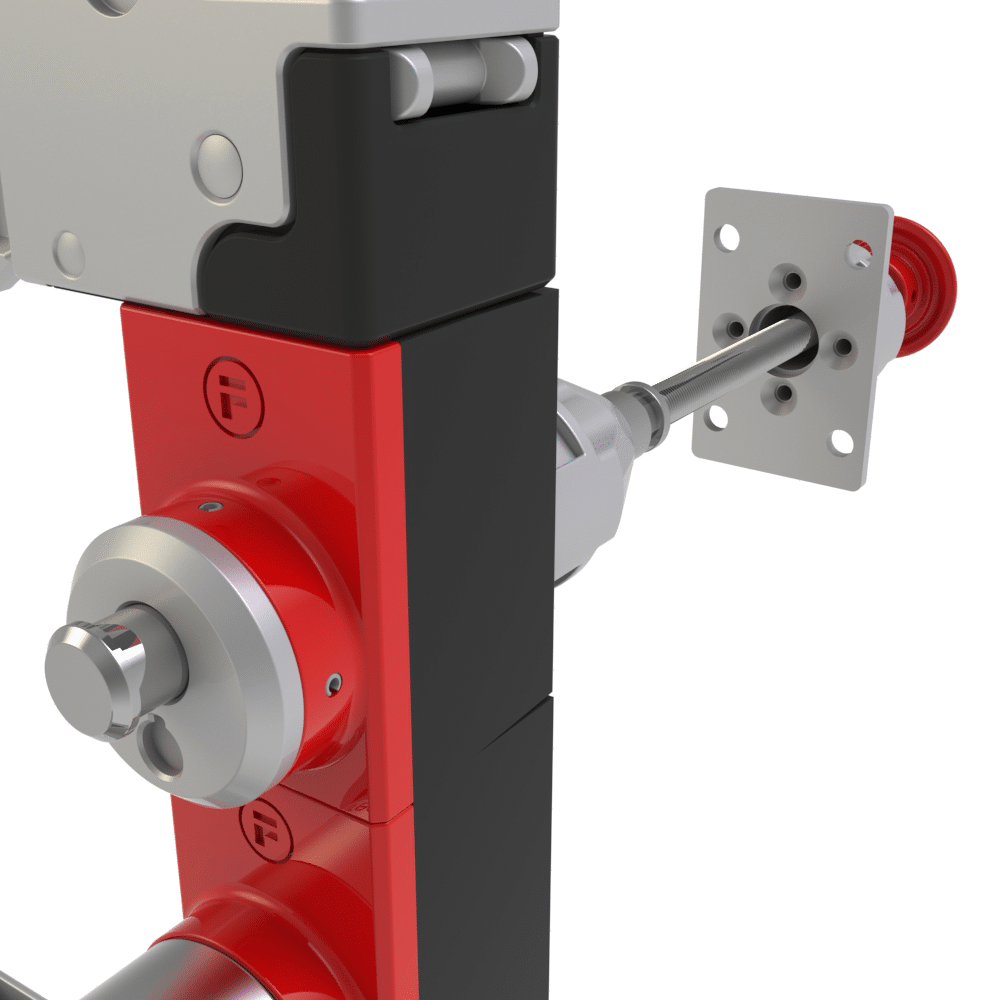

The Fortress Safety TI2T6RZAKR71ST401 model is an essential industrial safety solution designed to enhance security in demanding environments. Recognized by its part number TI2-T6-RZ-AKR71-ST401, this interlock system operates without a locking mechanism, providing functionality and ease of use. Its slidebar with an internal handle allows for effortless operation, while the push escape release with an external button reset ensures quick exit in emergencies. Additionally, the access key adapter features a manageable lock system and a dust cover for added protection.
With a voltage capacity of 2500V AC, this product is constructed entirely from stainless steel, offering durability and reliability. It meets the PLe performance level, ensuring compliance with safety standards. The IP67 protection class guarantees resistance to dust and water, making it an ideal choice for harsh industrial settings. The Fortress Safety TI2T6RZAKR71ST401 is the perfect solution to enhance your workplace ...
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | TI2-T6-RZ-AKR71-ST401 |

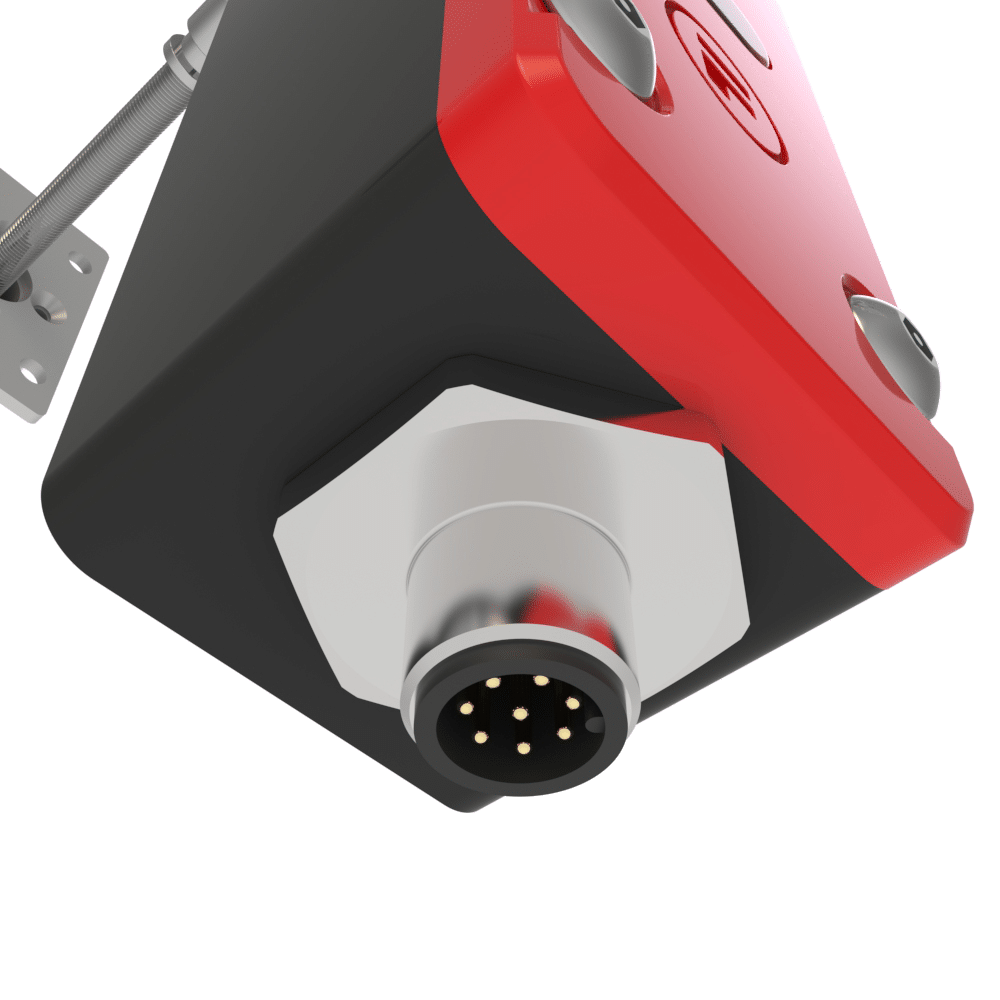

| Connector Type | Spring Activated Vibration Proof Block |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Operating Cycles |
| Retention Force | 10,000N(locked) |
| Housing Materials | Die-cast Zinc Alloy |
| Performance Level | PLe |
| Ingress Protection | IP67 |
| Insulating Voltage | 2500V AC |
| Internal Materials | All Stainless Steel |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Utilisation Category | AC 15 or DC 13 |
| Insulating Resistance | 20M Ohm |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Brand | Fortress Safety |
| Model | TI2T6RZAKR71ST401 |
| Main Category | Fortress Safety |
