Fortress Safety
Fortress Safety
TI2T6SE411
In Stock (100 items)
55 views
€0,00
VAT Included
Product Summary

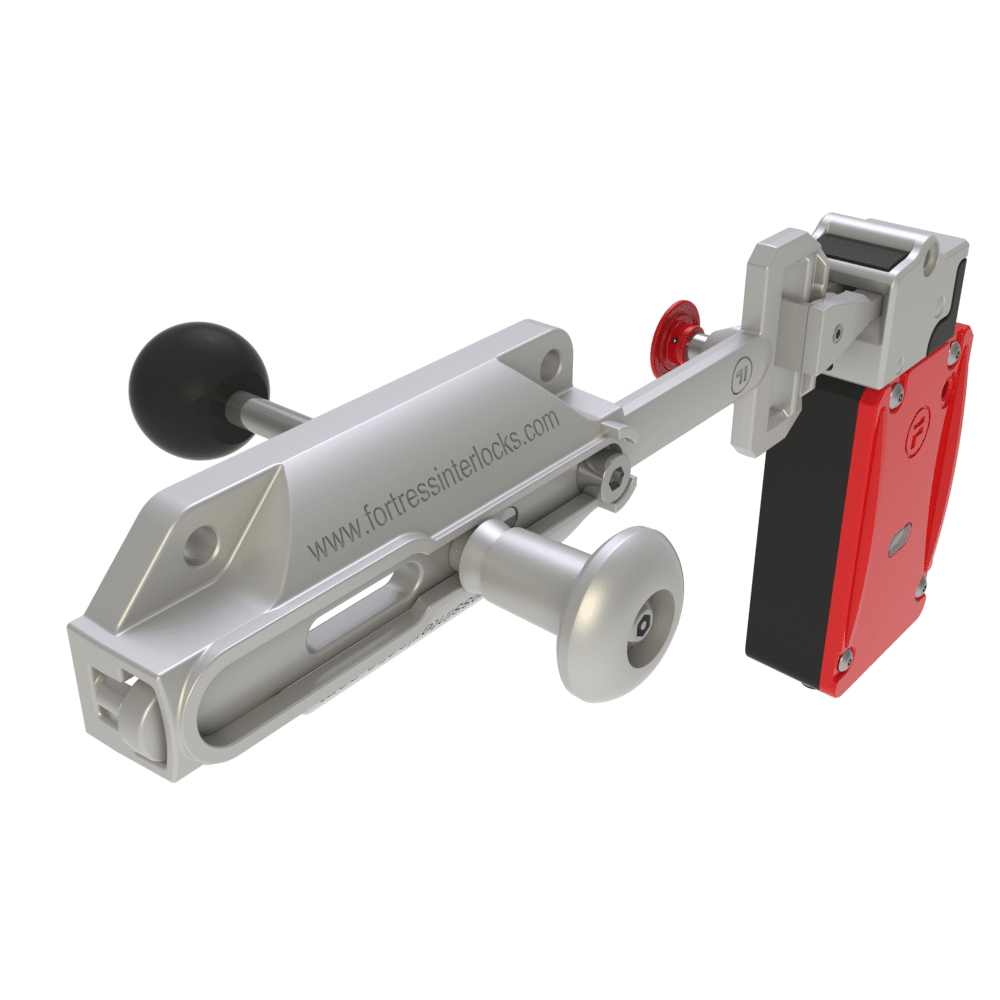

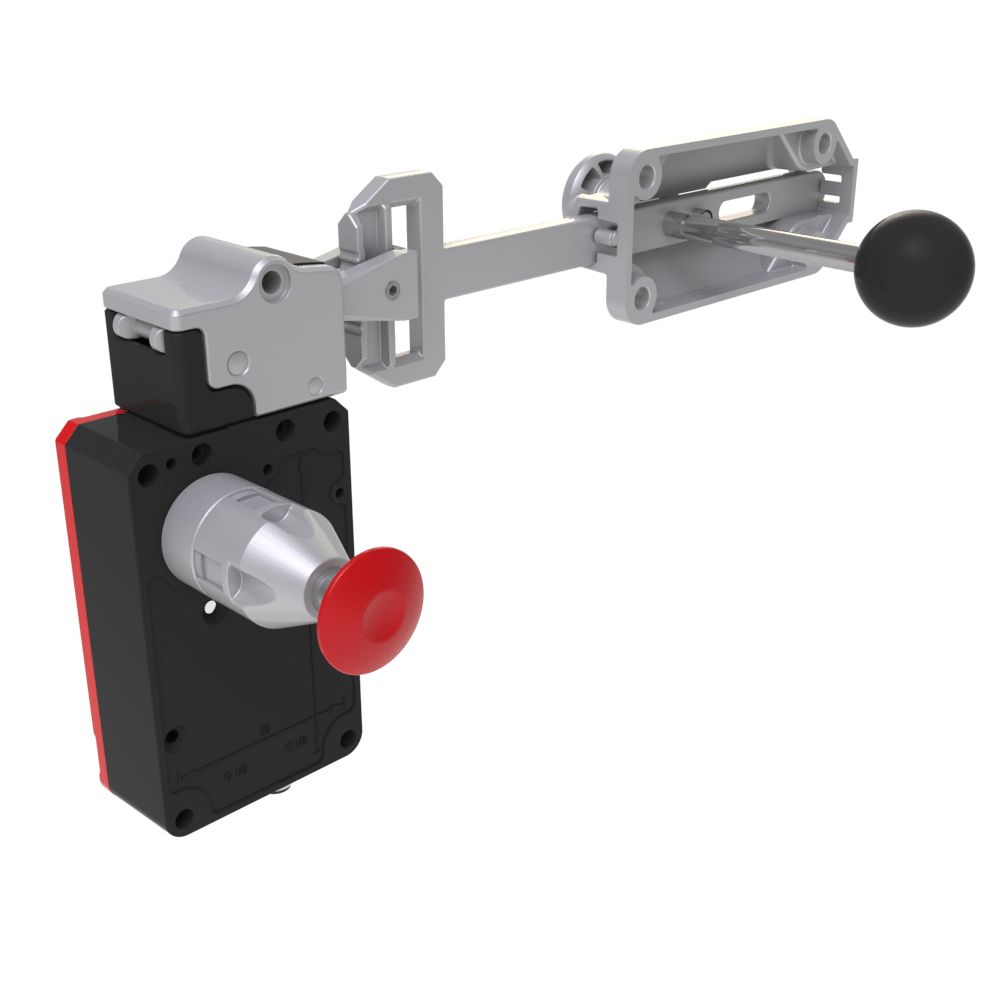

A solenoid-controlled interlock with Power-to-Unlock, integrated escape release, and monitored safety circuits. Features a slidebar with an internal handle but no return spring.
Product Description
A solenoid-controlled interlock with Power-to-Unlock, integrated escape release, and monitored safety circuits. Features a slidebar with an internal handle but no return spring.
The Fortress Safety TI2T6SE411 model is a solenoid-controlled interlock system designed for high standards in industrial safety. This product features a Power-to-Unlock capability, allowing users to exit safely. Additionally, it is equipped with an integrated escape release mechanism and monitored safety circuits, ensuring maximum security. The TI2T6SE411 offers a performance level of PLe, elevating your safety protocols to new heights. Its slidebar design, combined with an internal handle, provides ease of use, while the absence of a return spring ensures a reliable user experience. Operating within a voltage range of 90% to 110% of nominal, this system is manufactured from zinc alloy in accordance with BSEN12844 standards. With an IP67 protection class, it is resistant to dust and water, making it ideal for challenging industrial environments. The Fortress Safety TI2T6SE411 is the perfect solution to meet your safety requirements.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Escape Release, Power-to-Unlock |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | TI2-T6-SE411 |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Retention Force | 10,000N(locked) |
| Actuator Contact | 2NC 1NO |
| Solenoid Voltage | 24V ac/dc, 110V ac, 230V ac |
| Housing Materials | Zinc Alloy to BSEN12844 |
| Performance Level | PLe |
| Solenoid Contacts | 2NC 1NO |
| Ingress Protection | IP67 |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Switches Conformance | DIN VDE 0060 Part 206 & IEC 947-5-1 |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Solenoid Voltage Tolerance | 90% to 110% of nominal |
| Solenoid Rating (Duty Cycle) | 100% |
| Brand | Fortress Safety |
| Model | TI2T6SE411 |
| Main Category | Fortress Safety |
