Fortress Safety
Fortress Safety
TN2T6SL411
In Stock (100 items)
55 views
€0,00
VAT Included
Product Summary

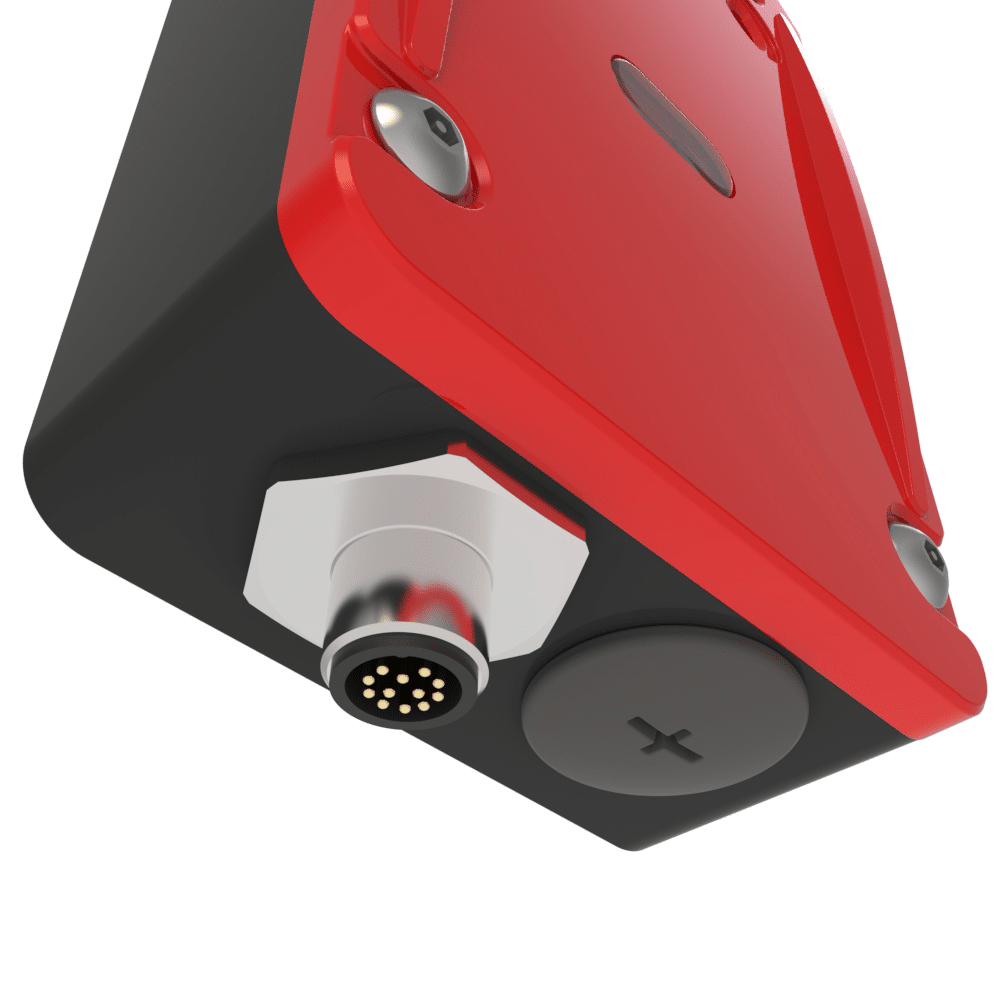

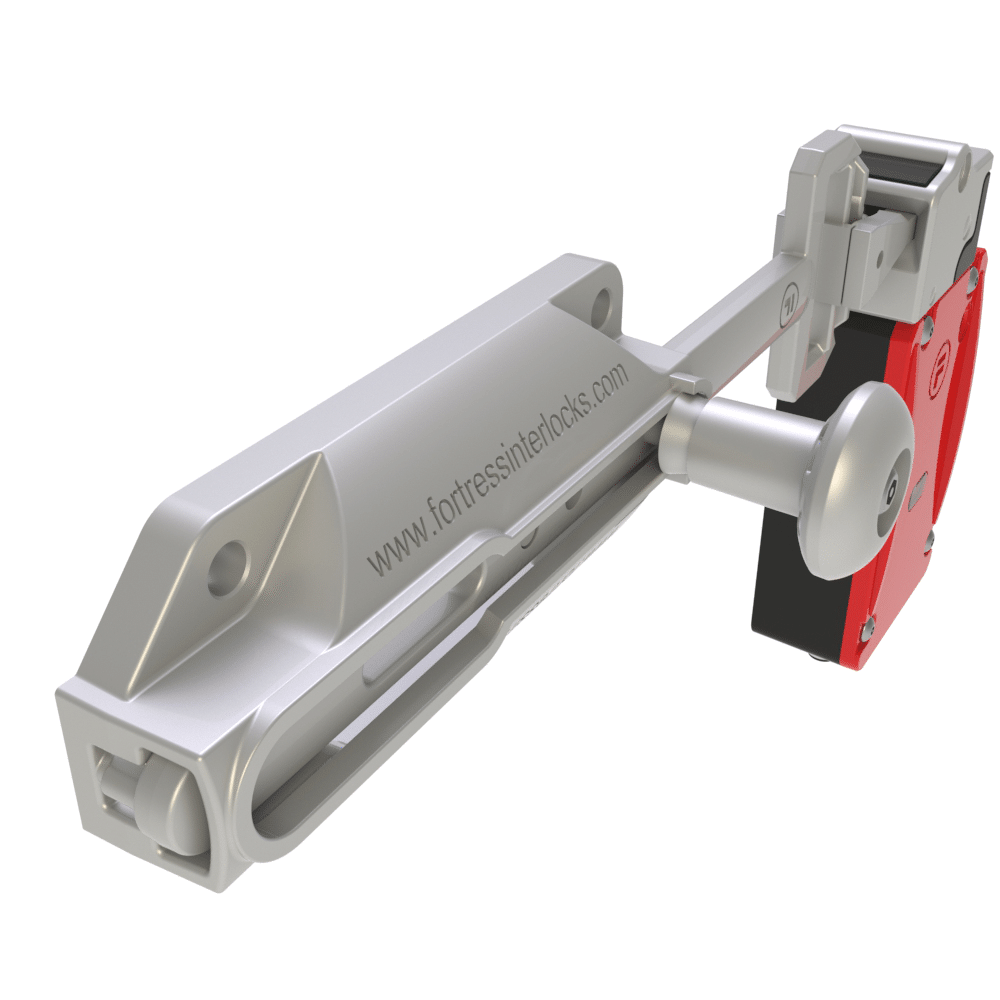

A solenoid-controlled interlock with Power-to-Unlock, auxiliary release, and monitored safety circuits. Includes a slidebar with an AT head.
Product Description
A solenoid-controlled interlock with Power-to-Unlock, auxiliary release, and monitored safety circuits. Includes a slidebar with an AT head.
The Fortress Safety TN2T6SL411 model is a solenoid-controlled interlock, providing an excellent solution for industrial safety applications. Equipped with the powerful "Power-to-Unlock" feature, this device prioritizes user safety. The auxiliary release mechanism and monitored safety circuits ensure that operators can work in a secure environment. The TN2T6SL411 comes with a slidebar and AT head, significantly simplifying the installation and integration process.
This product operates within a voltage range of 90% to 110% of nominal, offering flexible usage. Made from zinc alloy, it enhances durability, while the IP67 protection class provides maximum defense against external factors. With a performance level of PLe, it meets the highest safety standards in industrial environments. The Fortress Safety TN2T6SL411 offers effective solutions for industrial automation, machine safety, and production lines, making it an ideal choice to enhance security in your workplace.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Power-to-Unlock |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | TN2-T6-SL411 |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Retention Force | 10,000N(locked) |
| Actuator Contact | 2NC 1NO |
| Solenoid Voltage | 24V ac/dc, 110V ac, 230V ac |
| Housing Materials | Zinc Alloy to BSEN12844 |
| Performance Level | PLe |
| Solenoid Contacts | 2NC 1NO |
| Ingress Protection | IP67 |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Switches Conformance | DIN VDE 0060 Part 206 & IEC 947-5-1 |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Solenoid Voltage Tolerance | 90% to 110% of nominal |
| Solenoid Rating (Duty Cycle) | 100% |
| Brand | Fortress Safety |
| Model | TN2T6SL411 |
| Main Category | Fortress Safety |
