Fortress Safety
Fortress Safety
TN4T6EKL2SL461
In Stock (100 items)
54 views
€0,00
VAT Included
Product Summary

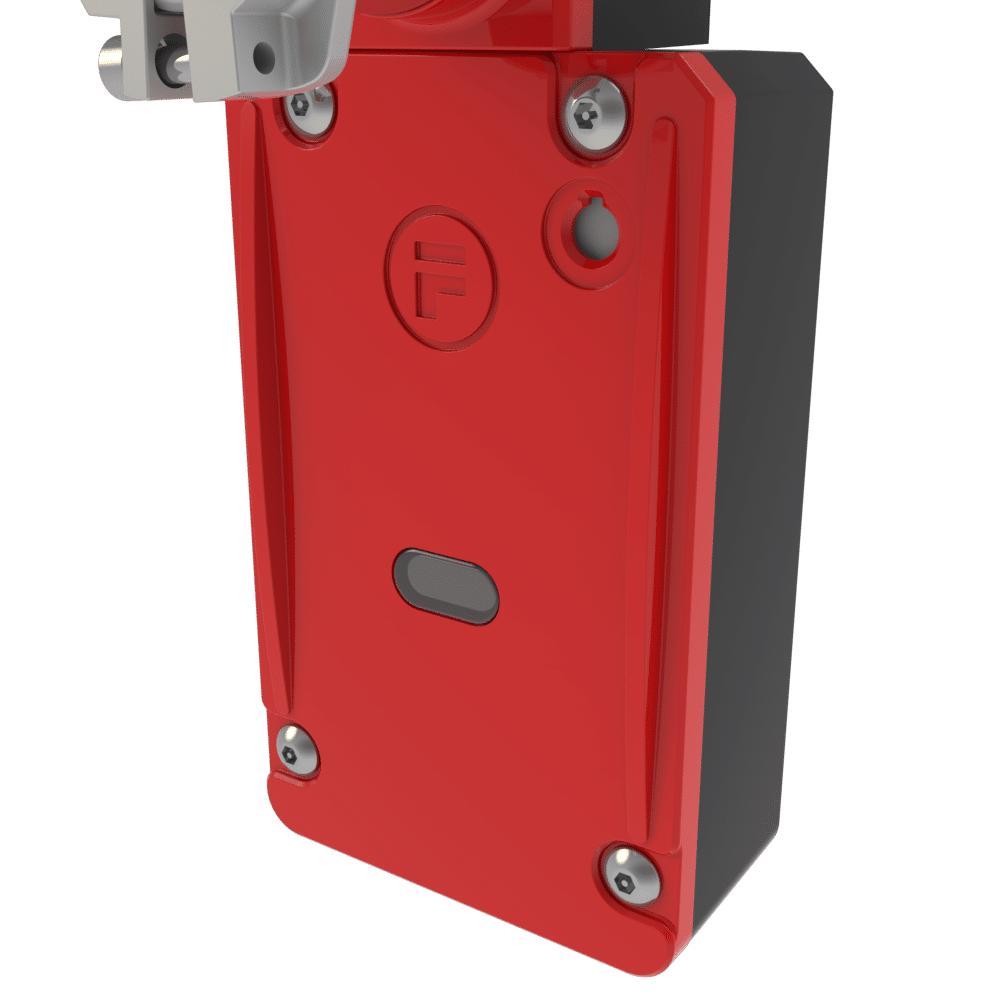

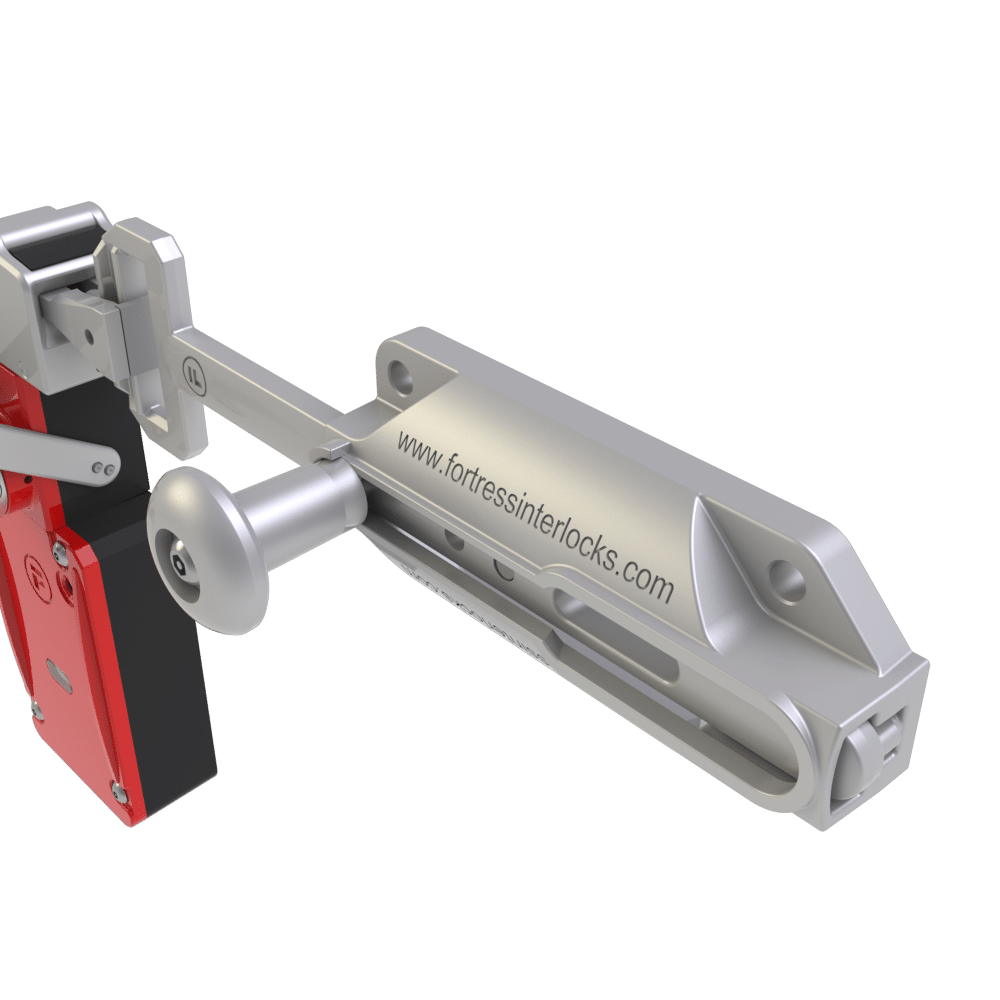

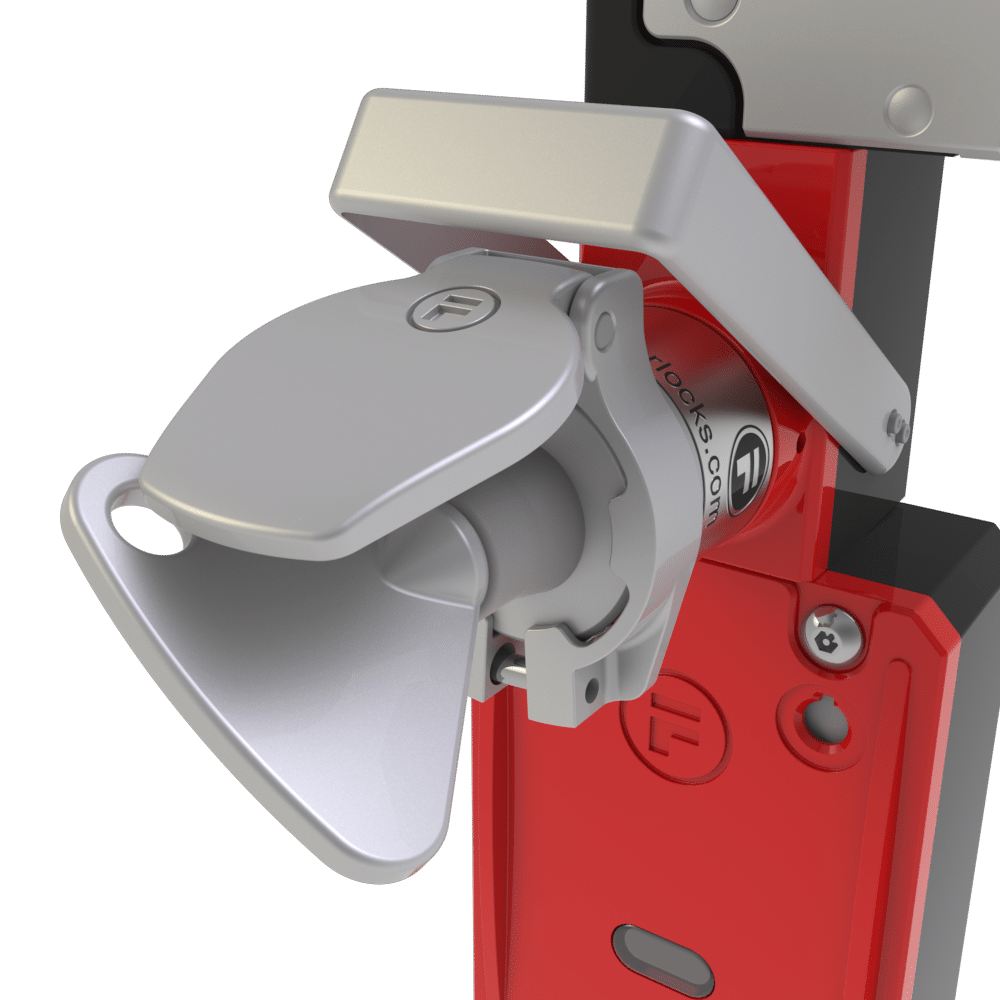

A solenoid-controlled interlock with Power-to-Lock, unmonitored solenoid safety circuits, and no manual release. Includes a slidebar, forced extracted key adaptor, and dustcover.
Product Description
A solenoid-controlled interlock with Power-to-Lock, unmonitored solenoid safety circuits, and no manual release. Includes a slidebar, forced extracted key adaptor, and dustcover.
The Fortress Safety TN4T6EKL2SL461 model is an advanced solenoid-controlled interlock designed to meet your industrial safety needs. With its Power-to-Lock feature, this product provides a secure working environment while unmonitored solenoid safety circuits enhance protection. The absence of a manual release mechanism makes it an ideal choice for maximizing user safety in various applications.
Constructed entirely from stainless steel, the TN4T6EKL2SL461 is built to withstand harsh industrial conditions, offering excellent protection with its IP67 rating against dust and water ingress. Operating at 90% to 110% of nominal voltage, this model meets PLe performance level safety standards, making it suitable for use in industrial automation systems, machinery safety, and hazardous areas. Fortress Safety’s high-quality offering is the perfect solution for businesses seeking reliability and security in their operations.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Personnel Key, Power-to-Lock |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | TN4-T6-EKL2-SL461 |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Retention Force | 10,000N(locked) |
| Actuator Contact | 2NC 1NO |
| Solenoid Voltage | 24V ac/dc, 110V ac, 230V ac |
| Housing Materials | Zinc Alloy to BSEN12844 |
| Performance Level | PLe |
| Solenoid Contacts | 1NO |
| Ingress Protection | IP67 |
| Internal Materials | All Stainless Steel |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Switches Conformance | DIN VDE 0060 Part 206 & IEC 947-5-1 |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Solenoid Voltage Tolerance | 90% to 110% of nominal |
| Solenoid Rating (Duty Cycle) | 100% |
| Brand | Fortress Safety |
| Model | TN4T6EKL2SL461 |
| Main Category | Fortress Safety |
