Fortress Safety
Fortress Safety
TN4T6EKL3SKL31ST401
In Stock (100 items)
42 views
€0,00
VAT Included
Product Summary

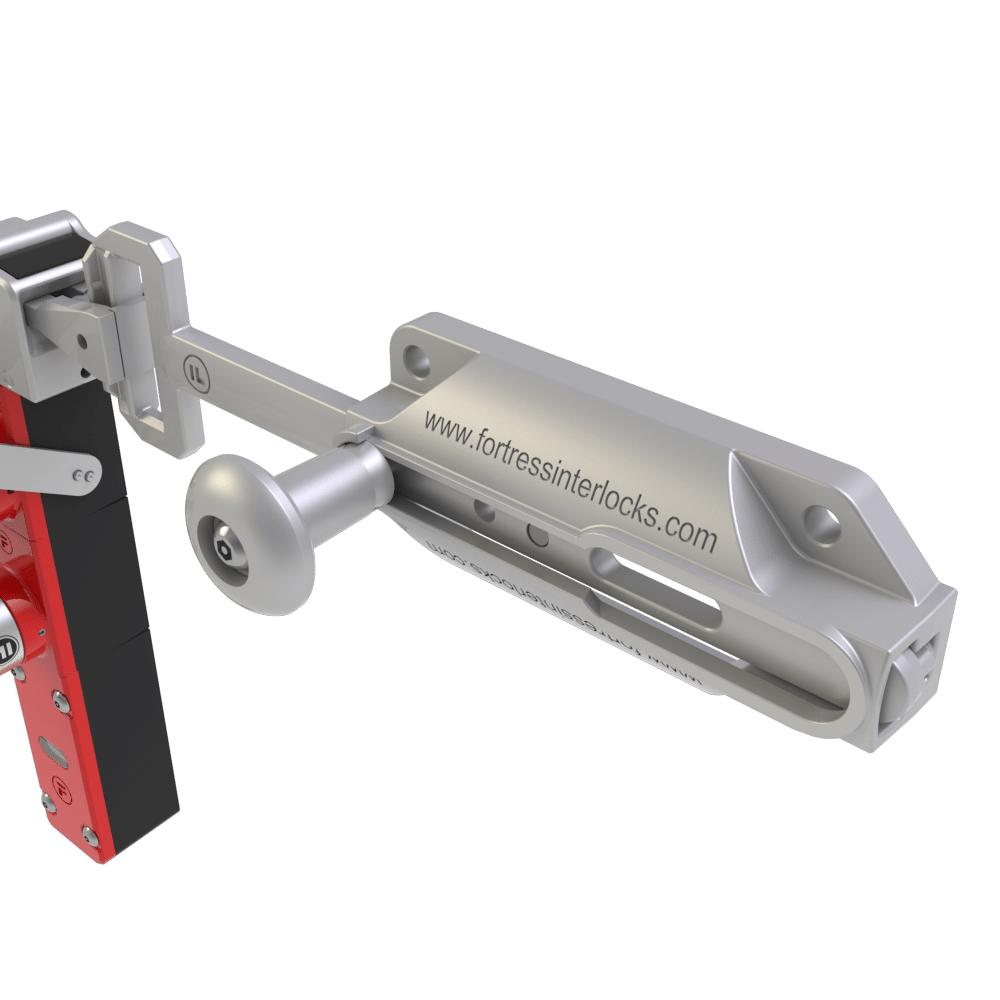

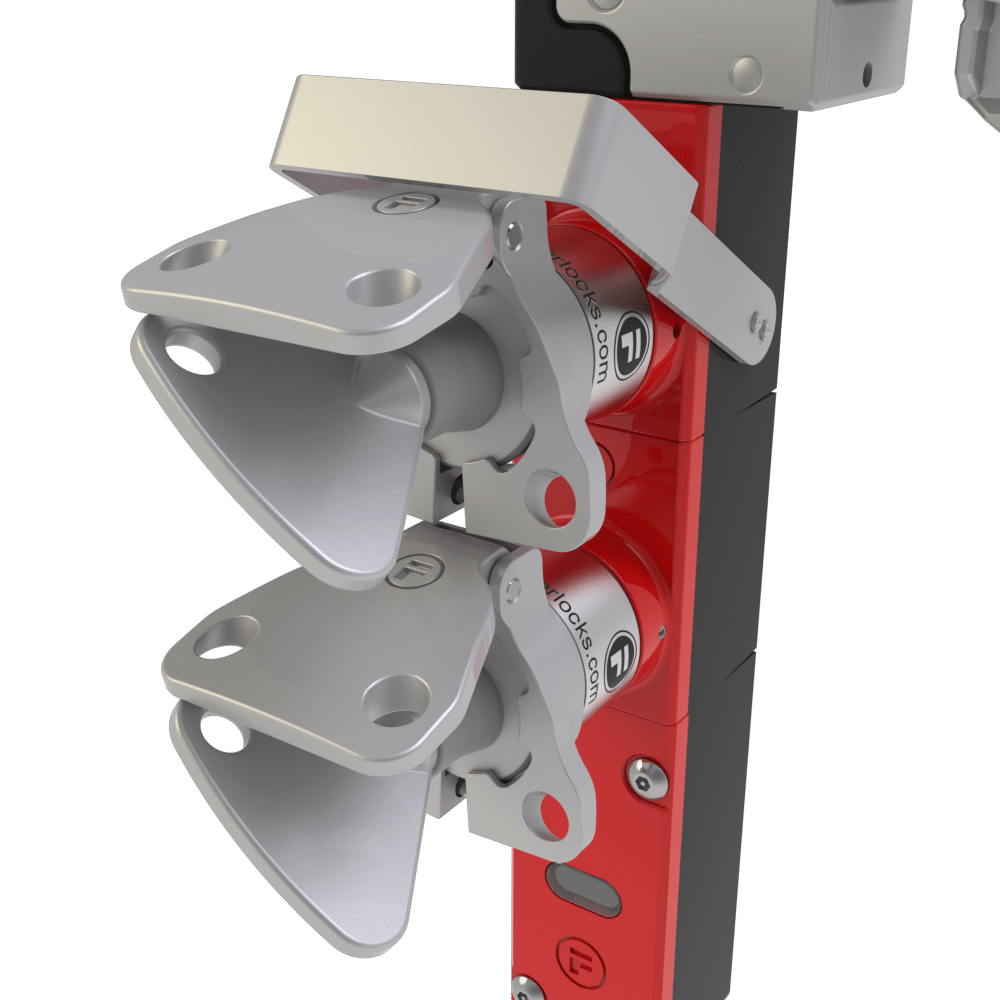

An interlock without locking, featuring a slidebar without a return spring, an AT head, extracted key and personnel key adaptors with standard locks and padlockable dustcovers.
Product Description
An interlock without locking, featuring a slidebar without a return spring, an AT head, extracted key and personnel key adaptors with standard locks and padlockable dustcovers.
The Fortress Safety TN4T6EKL3SKL31ST401 model is a high-performance interlock system designed for industrial safety applications. With a voltage capacity of 2500V AC, it provides robust protection and, thanks to its IP67 rating, ensures reliable performance even in harsh environmental conditions. The use of all stainless steel material enhances durability and longevity.
This interlock features a slidebar design without locking, offering a quick and effective solution for workplaces. It comes with AT head and standard lock-compatible key adaptors, providing flexibility for various applications. With a performance level of PLe, this product meets safety standards, enhancing the protection of your personnel. The Fortress Safety TN4T6EKL3SKL31ST401 is the ideal choice for ensuring safety and efficiency in industrial facilities. Elevate your security to the highest level with top-quality materials and superior design!
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Personnel Key |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | TN4-T6-EKL3-SKL31-ST401 |
| Connector Type | Spring Activated Vibration Proof Block |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Retention Force | 10,000N(locked) |
| Housing Materials | Die-cast Zinc Alloy |
| Performance Level | PLe |
| Ingress Protection | IP67 |
| Insulating Voltage | 2500V AC |
| Internal Materials | All Stainless Steel |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Utilisation Category | AC 15 or DC 13 |
| Insulating Resistance | 20M Ohm |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Brand | Fortress Safety |
| Model | TN4T6EKL3SKL31ST401 |
| Main Category | Fortress Safety |
