TS-CLIN-024PU-60-600
In Stock (100 items)
47 views
€0,00
VAT Included
Product Summary
A time delay device is used where machines do not come to an immediate stop. It controls keys giving access to enclosed areas or machines where hazards may be present, until a safe condition has been...
Product Description

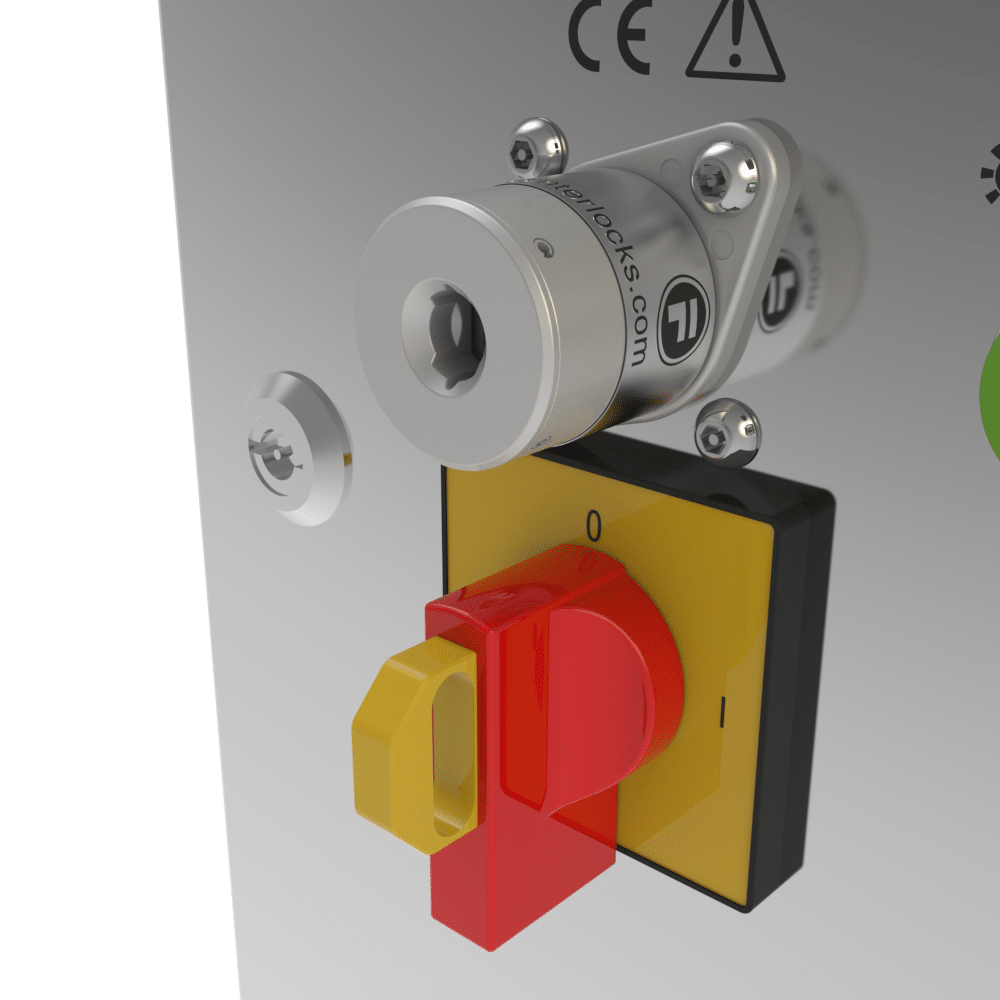

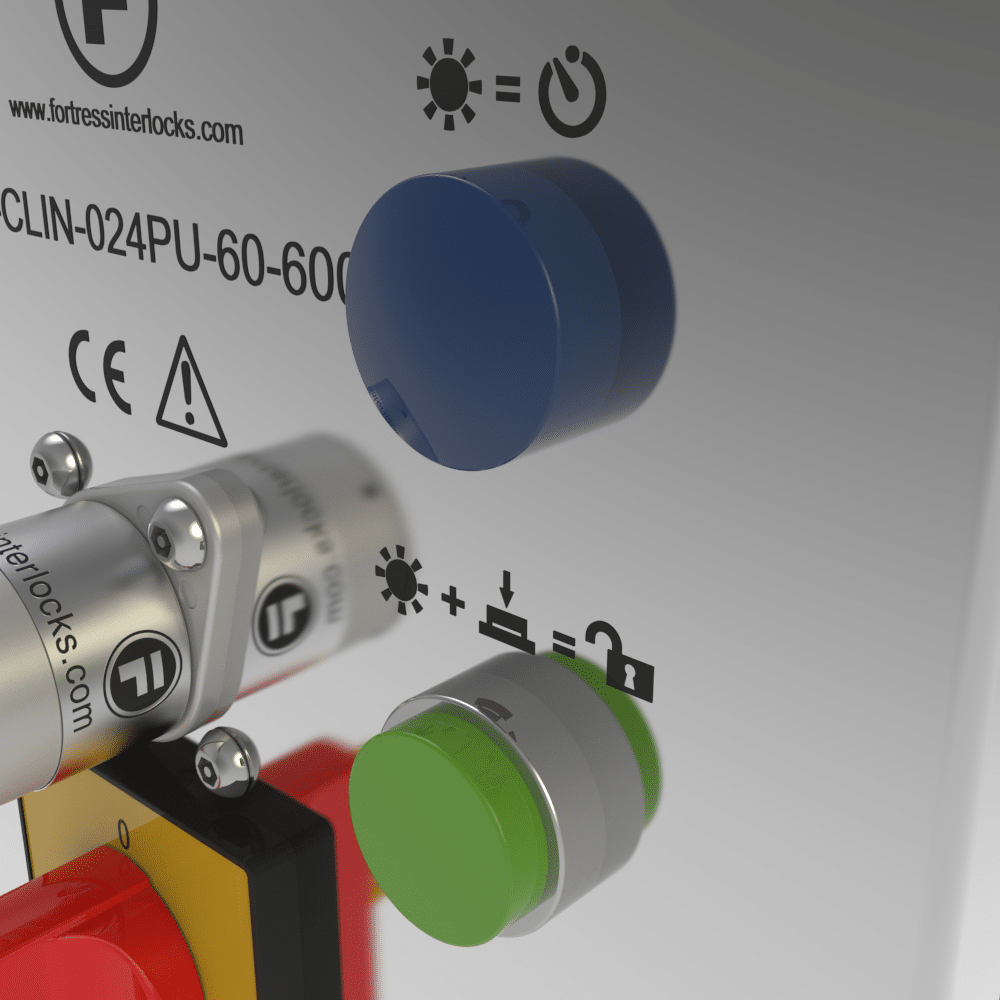

A time delay device is used where machines do not come to an immediate stop. It controls keys giving access to enclosed areas or machines where hazards may be present, until a safe condition has been achieved.
The TS-CLIN-024PU-60-600 model from Fortress Safety is an effective time delay device designed to enhance safety in industrial environments. This device is specifically developed for situations where machines do not come to an immediate stop. It controls access to enclosed areas or machines that may pose hazards until a safe condition is achieved. The IP66 rated Eldon stainless steel enclosure provides a robust construction, while the IP67 protection class ensures resistance against water and dust ingress. Certified with CE marks for all applicable directives, this device operates efficiently with a humidity tolerance of 80% at ≤31°C and 50% at 40°C. The TS-CLIN-024PU-60-600 is an ideal choice to enhance your safety measures and ensure that your machinery operates securely.
Technical Specifications
| Category | Cat. 4, PLe (EN / ISO 13849-1) and SIL3 (EN/IEC 62061) |
| Features | Power-to-Unlock |
| Standards | EN60947-3:2009 EN1088:1996 EN13849-1:2008 EN13849-2:2012 EN62061:2005 |
| Environment | Indoor |
| Part Number | TS-CLIN-024PU-60-600 |
| Certifications | CE marked for all applicable directives |
| Lock Mechanism | Die-cast zinc body with stainless operating mechanism |
| Housing Materials | IP66 Eldon stainless steel enclosure |
| Power Consumption | 24V DC = 16W, 110V AC = 63VA, 240V AC = 132VA |
| Ingress Protection | IP67 |
| Ambient Temperature | 80% at ≤31°C 50% at 40°C |
| Switch Contact Rating | 300V – 20A |
| Delay-on De-energisation | Approx. 40ms, Recovery Time 80ms |
| Minimum Operating Current | 5mA at 20v |
| Functional Safety Data - DC | High 99% (with correct monitoring) |
| Functional Safety Data - B10d | 5,000,000 |
| Brand | Fortress Safety |
| Model | TS-CLIN-024PU-60-600 |
| Main Category | Fortress Safety |
