Fortress Safety
Fortress Safety
TS2T6SL411
In Stock (100 items)
69 views
€0,00
VAT Included
Product Summary

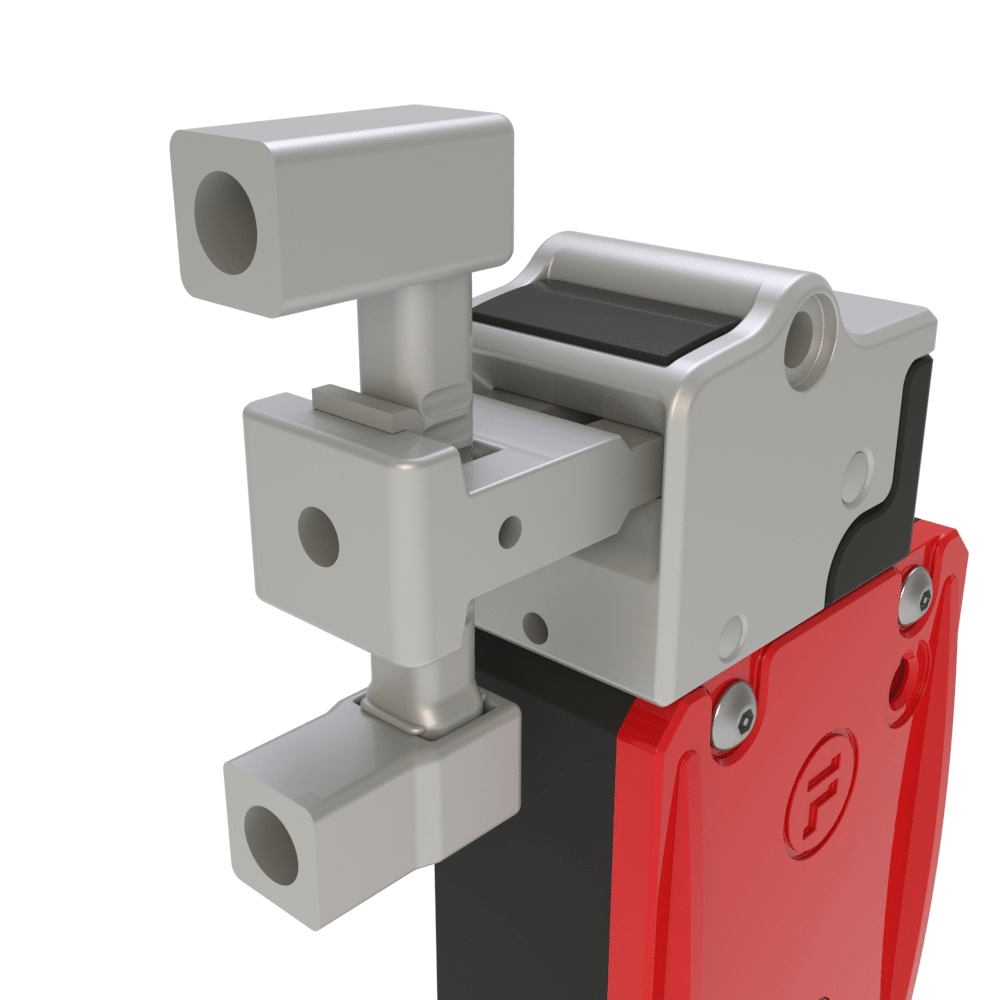

A solenoid-controlled interlock with Power-to-Unlock, auxiliary release, and monitored safety circuits. Includes slidebar featuring a return spring for safe and efficient operation.
Product Description
A solenoid-controlled interlock with Power-to-Unlock, auxiliary release, and monitored safety circuits. Includes slidebar featuring a return spring for safe and efficient operation.
The Fortress Safety TS2T6SL411 model is an outstanding solution for industrial safety applications. This solenoid-controlled interlock features a "Power-to-Unlock" mechanism along with an auxiliary release, enhancing the safety of your operations with monitored safety circuits. Operating within a voltage range of 90% to 110% of nominal, the TS2T6SL411 caters to a wide array of applications. Made from zinc alloy in compliance with BSEN12844 standards, it ensures durability and long-lasting performance. With an IP67 protection class, this model offers excellent resistance against dust and water, making it suitable for harsh industrial environments. These features not only boost safety measures but also enhance operational efficiency. The Fortress Safety TS2T6SL411 is the ideal choice for securing industrial facilities effectively.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Power-to-Unlock |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | TS2-T6-SL411 |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Operating Force | 12N(spring loaded) |
| Retention Force | 10,000N(locked) |
| Actuator Contact | 2NC 1NO |
| Solenoid Voltage | 24V ac/dc, 110V ac, 230V ac |
| Housing Materials | Zinc Alloy to BSEN12844 |
| Performance Level | PLe |
| Solenoid Contacts | 2NC 1NO |
| Ingress Protection | IP67 |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Switches Conformance | DIN VDE 0060 Part 206 & IEC 947-5-1 |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Solenoid Voltage Tolerance | 90% to 110% of nominal |
| Solenoid Rating (Duty Cycle) | 100% |
| Brand | Fortress Safety |
| Model | TS2T6SL411 |
| Main Category | Fortress Safety |
