Product Summary

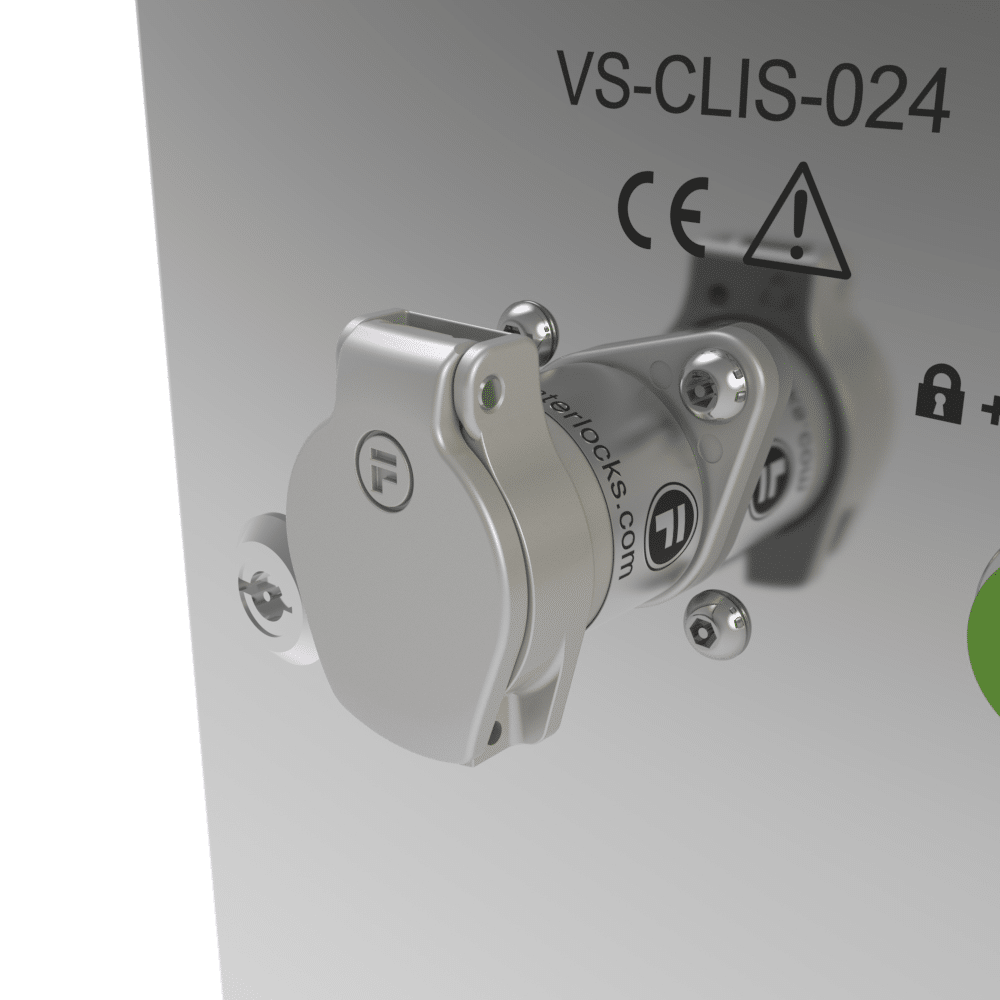

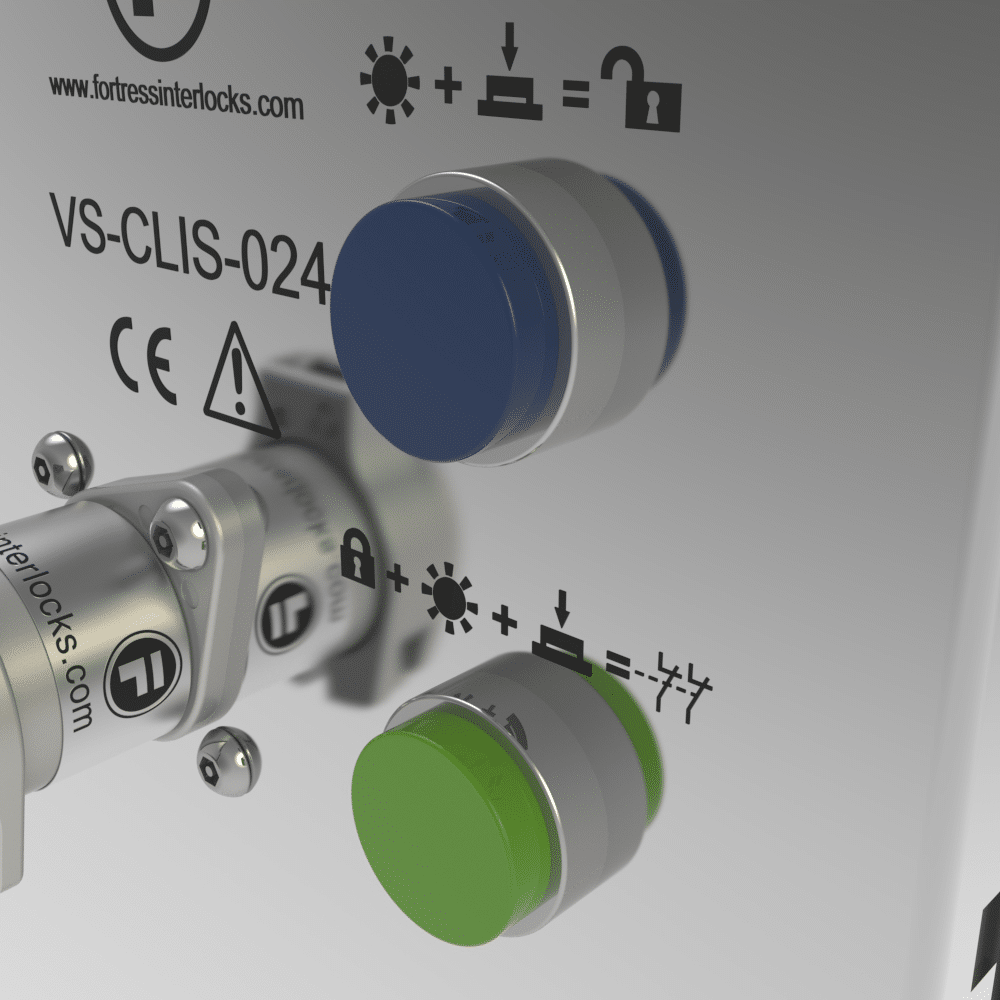

Voltage sensing units ensure a trapped key sequence can only begin when the machine has come to rest. Suitable for applications where a machine does not come to an immediate stop.
Product Description
Voltage sensing units ensure a trapped key sequence can only begin when the machine has come to rest. Suitable for applications where a machine does not come to an immediate stop.
The VS-CLIN-024PU model by Fortress Safety is designed to provide top-level protection in industrial safety applications. This voltage sensing unit ensures that a trapped key sequence can only be initiated when the machine has come to a complete rest. This feature is ideal for applications where machines do not stop immediately, significantly enhancing operator safety.
The device is CE marked for all applicable directives, demonstrating full compliance with safety standards. Its IP66 rated Eldon stainless steel enclosure offers robust durability even in harsh industrial environments. Additionally, it operates effectively in temperature ranges of 80% humidity at ≤31°C and 50% humidity at 40°C, making it versatile for a wide array of applications.
Fortress Safety's security solution is a critical component for creating safe and efficient working environments in industrial facilities. Choose the VS-CLIN-024PU model to enhance the safety of your machines and protect your operators.
Technical Specifications
| Category | Cat. 4, PLe (EN / ISO 13849-1) and SIL3 (EN/IEC 62061) |
| Features | Power-to-Unlock |
| Standards | EN60947-3:2009 EN1088:1996 EN13849-1:2008 EN13849-2:2012 EN62061:2005 |
| Environment | Indoor |
| Part Number | VS-CLIN-024PU |
| Certifications | CE marked for all applicable directives |
| Lock Mechanism | Die-cast zinc body with stainless operating mechanism |
| Housing Materials | IP66 Eldon stainless steel enclosure |
| Power Consumption | 24V DC = 16W, 110V AC = 63VA, 240V AC = 132VA |
| Ingress Protection | IP67 |
| Ambient Temperature | 80% at ≤31°C 50% at 40°C |
| Switch Contact Rating | 300V – 20A |
| Delay-on De-energisation | Approx. 40ms, Recovery Time 80ms |
| Minimum Operating Current | 5mA at 20v |
| Functional Safety Data - DC | High 99% (with correct monitoring) |
| Functional Safety Data - B10d | 5,000,000 |
| Brand | Fortress Safety |
| Model | VS-CLIN-024PU |
| Main Category | Fortress Safety |
