Fortress Safety
Fortress Safety
MA2M6SL111
In Stock (100 items)
53 views
€0,00
VAT Included
Product Summary

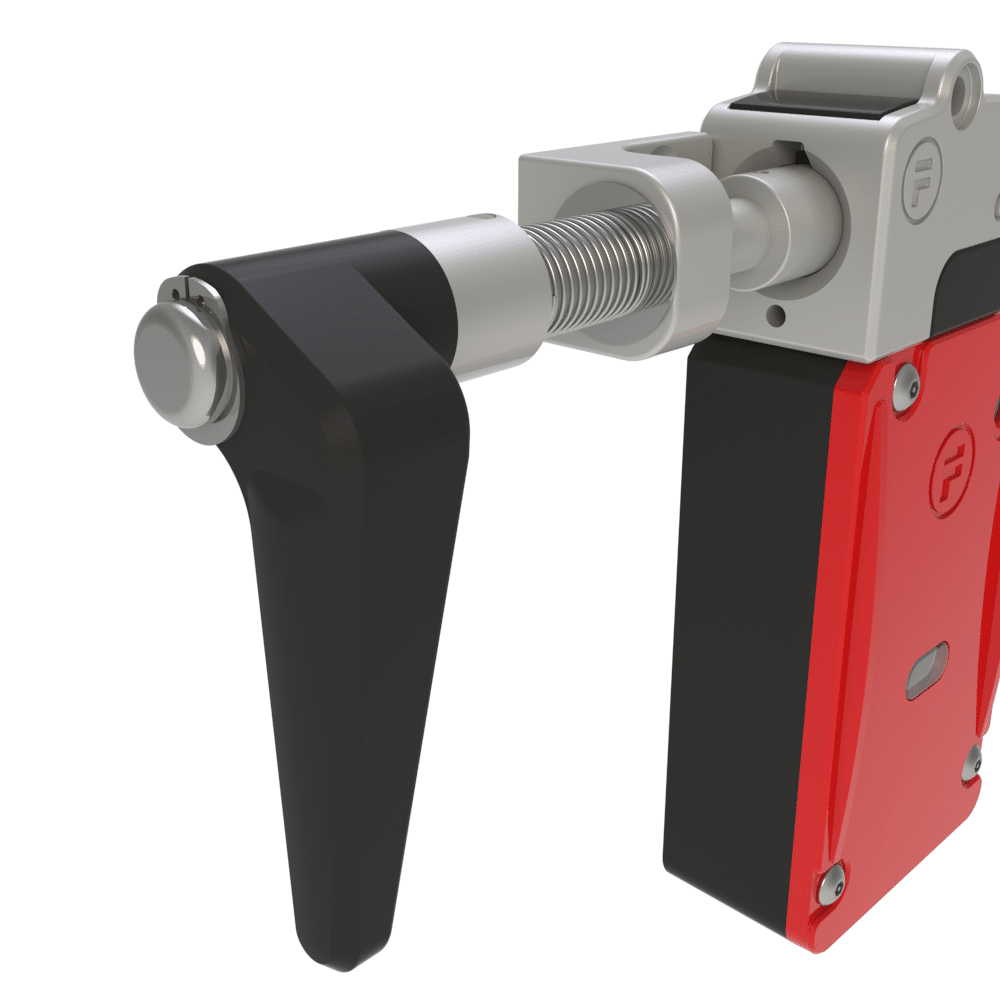

A solenoid-controlled interlock with Power-to-Unlock, auxiliary release, and monitored safety circuits. Includes an AM rotary insertion handle and head.
Product Description
A solenoid-controlled interlock with Power-to-Unlock, auxiliary release, and monitored safety circuits. Includes an AM rotary insertion handle and head.
The Fortress Safety MA2M6SL111 is a prominent solenoid-controlled interlock system designed for industrial safety applications. With its Power-to-Unlock feature, this model ensures maximum security for operators, complemented by an auxiliary release mechanism and monitored safety circuits. Operating at a performance level of PLe and featuring an IP67 protection class, it offers outstanding resistance against dust and water. The MA2M6SL111 operates within a voltage range of 90% to 110% of nominal, and is constructed from durable zinc alloy and stainless steel materials. Its AM rotary insertion handle and head facilitate easy installation and operation. This product is ideal for ensuring safe access control in industrial machinery. Enhance workplace safety with the quality and reliability of Fortress Safety.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Power-to-Unlock |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | MA2-M6-SL111 |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Operating Force | 0.5Nm |
| Retention Force | 10,000N(locked) |
| Actuator Contact | 2NC 1NO |
| Solenoid Voltage | 24V ac/dc, 110V ac, 230V ac |
| Housing Materials | Zinc Alloy to BSEN12844 Stainless Steel to BS3146 |
| Performance Level | PLe |
| Solenoid Contacts | 2NC 1NO |
| Ingress Protection | IP67 |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Switches Conformance | DIN VDE 0060 Part 206 & IEC 947-5-1 |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Solenoid Voltage Tolerance | 90% to 110% of nominal |
| Solenoid Rating (Duty Cycle) | 100% |
| Brand | Fortress Safety |
| Model | MA2M6SL111 |
| Main Category | Fortress Safety |
